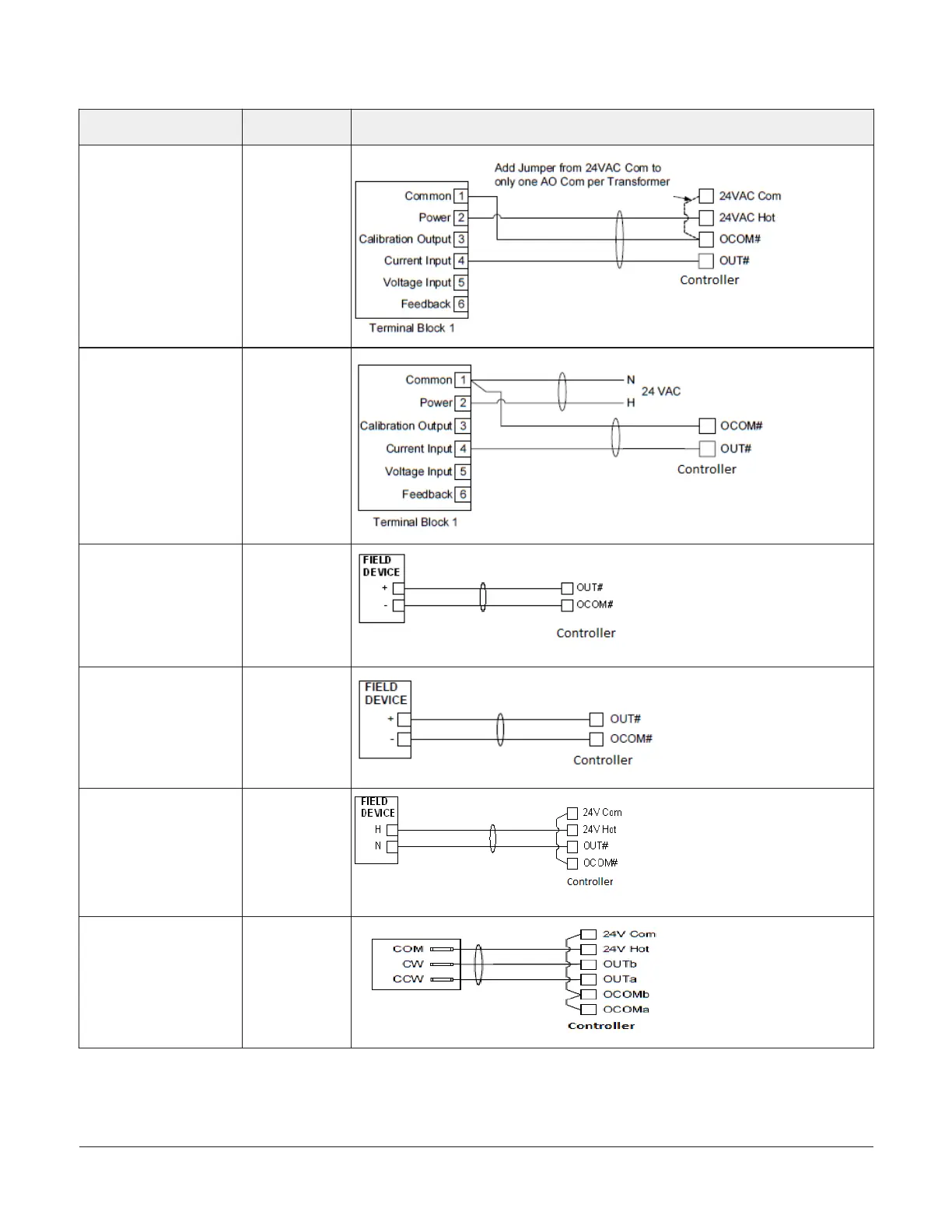

Table 6: Termination details
Type of field device
Type of Input/
Output
Termination diagrams
4–20 mA Output to
Actuator
CO or AO
4–20 mA Output to
Actuator
CO or AO
Voltage (Analog Output) AO
Analog Output (Current) AO
24 VAC Triac Output
(Switch Low, External
Source)
CO or AO
Incremental Control to
Actuator (Switch Low,
Externally Sourced)
CO or AO
