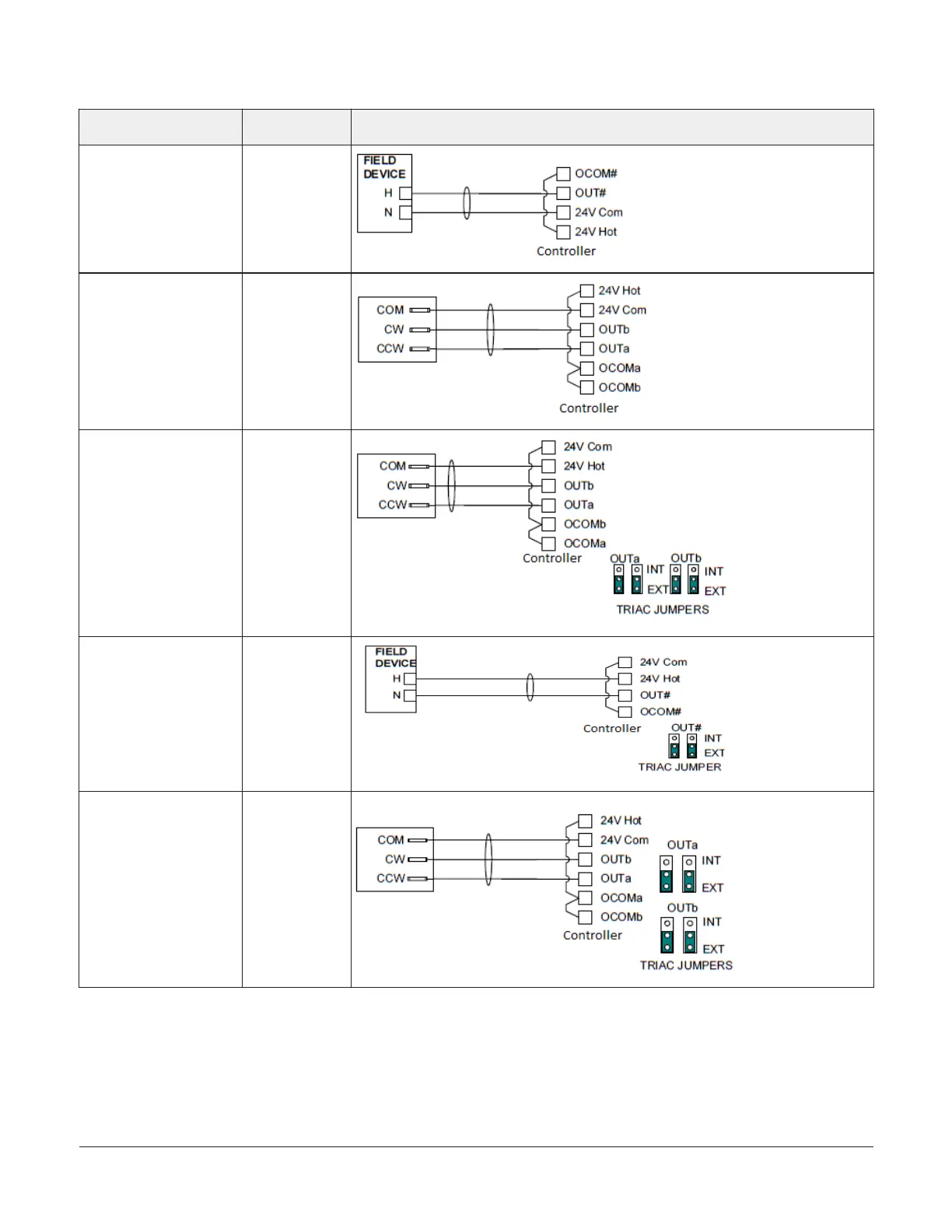

Table 6: Termination details
Type of field device
Type of Input/
Output
Termination diagrams
24 VAC Binary Output
(Switch High, Externally
Sourced)
CO or AO
Incremental Control to
Actuator (Switch High,
Externally Sourced)
CO or AO
Incremental Control to
Actuator (Switch Low,
Externally Sourced)
BO
24 VAC Binary Output
(Switch Low, Externally
Sourced)
BO
Incremental Control to
Actuator (Switch High,
Externally Sourced)
BO
FEC26 Field Equipment Controllers Installation Guide 15
