Johnson Controls MS-FEC2621-Series User Manual

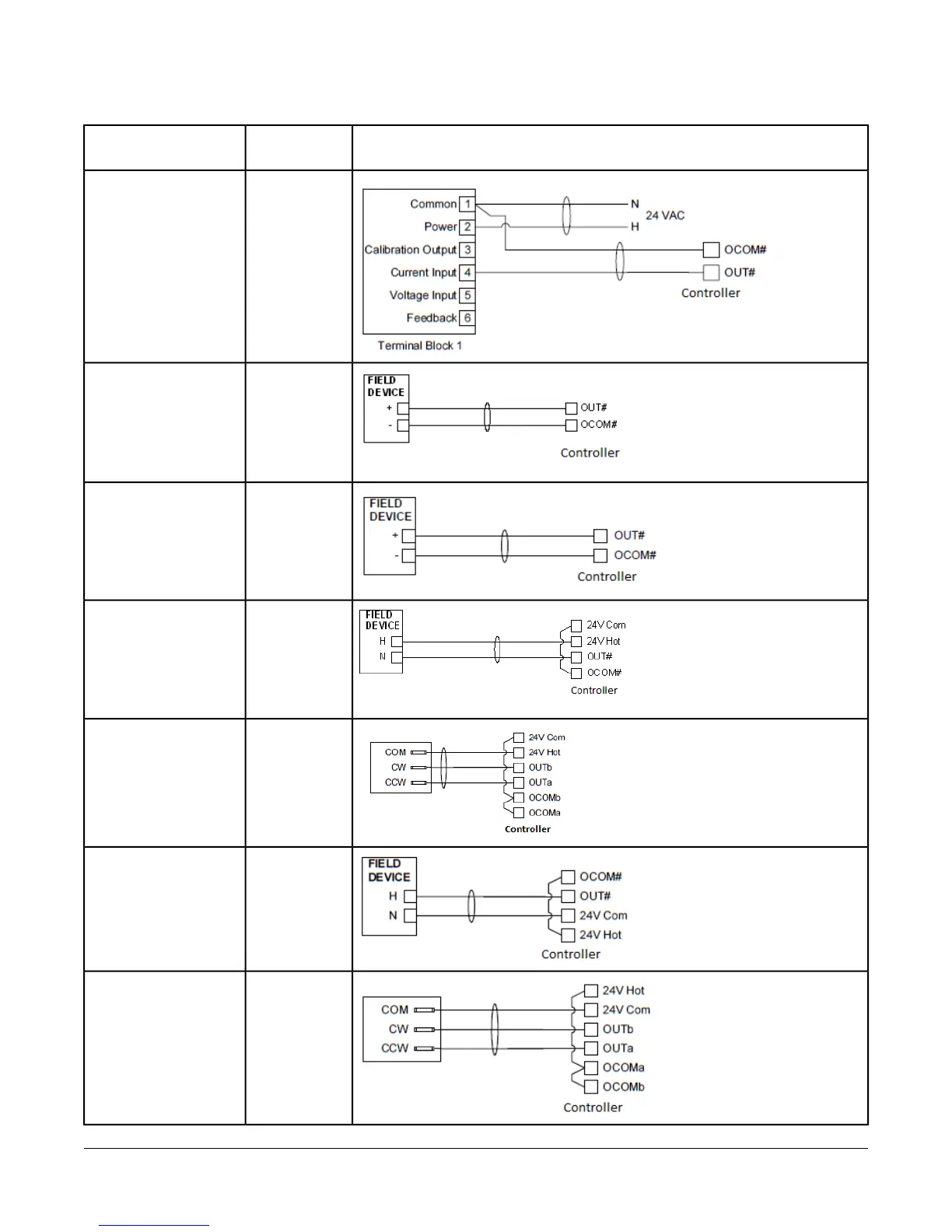

Table 2: Termination Details
Termination DiagramsType of
Input/Output
Type of Field Device
CO or AO4–20 mA Output to
Actuator
AOVoltage (Analog Output)
AOAnalog Output (Current)
CO or AO24 VAC Triac Output
(Switch Low, External
Source)
CO or AOIncremental Control to
Actuator (Switch Low,
Externally Sourced)
CO or AO24 VAC Binary Output
(Switch High, Externally
Sourced)
CO or AOIncremental Control to
Actuator (Switch High,
Externally Sourced)
10FEC26 Field Equipment Controllers Installation Instructions
