Johnson Controls NS8000 Series User Manual

Applications

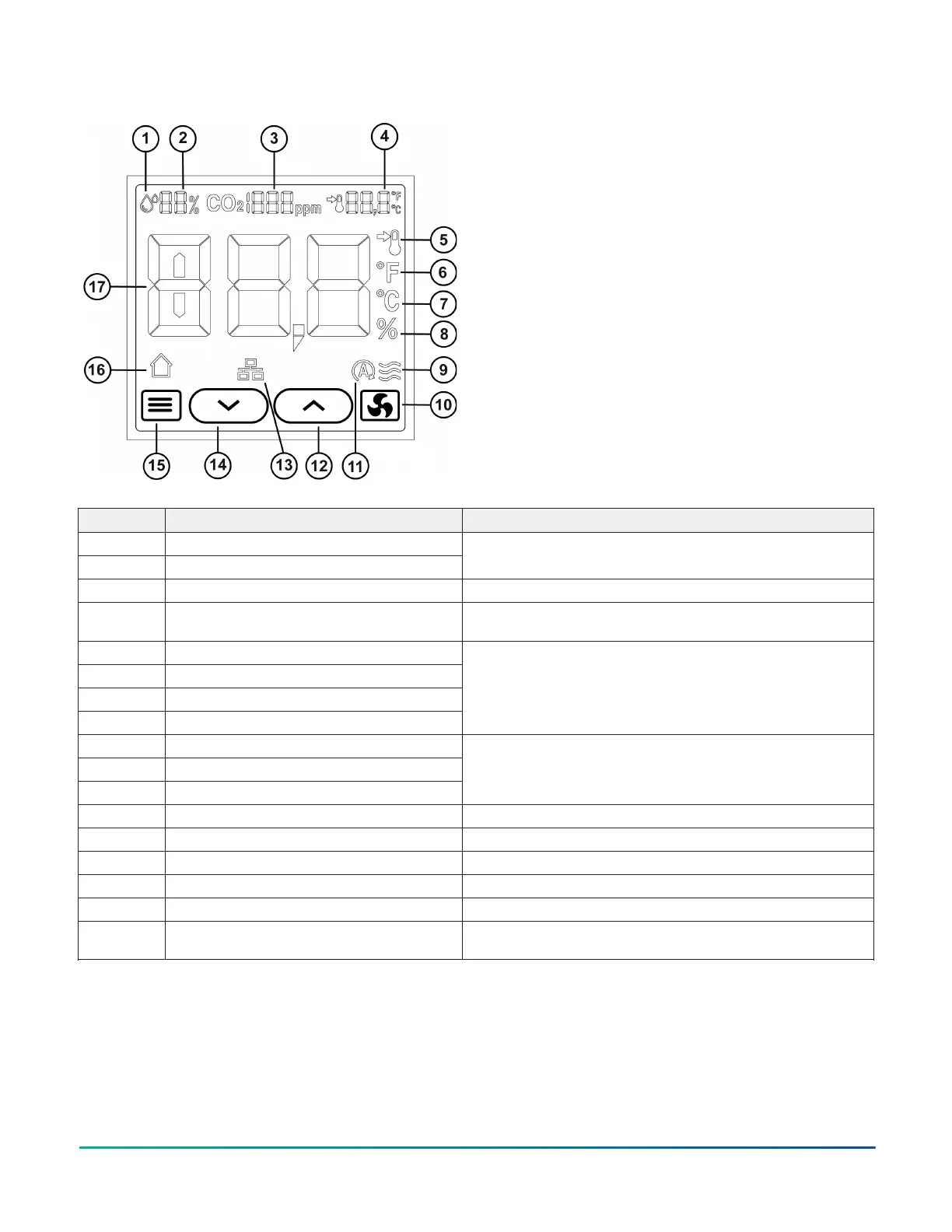

Table 1: Display icons
Icon Description Hide options
1 Humidity indicator icon
2 Humidity measurement
Follow steps in Hiding icons on the home screen section to
hide icons 1 and 2 as a group.
3 CO
2
measurement
Follow steps in Hiding icons on the home screen section
4 Configurable setpoint or current
temperature
Follow steps in Hiding icons on the home screen section
5 Setpoint indicator icon
6 Fahrenheit icon
7 Celsius icon
8 Percent relative humidity icon
Refer to icon 17 for additional information
9 Fan speed bars
10 Fan icon
11 Automatic fan speed icon
Follow steps in Hiding icons on the home screen section to
hide icons 9, 10, and/or 11
12 Up adjustment or navigation icon Follow steps in Activating and deactivating the screen lockout
13 SA bus online indicator Icon is permanently visible and cannot be hidden
14 Down adjustment or navigation icon Follow steps in Activating and deactivating the screen lockout
15 Menu or enter icon Icon is permanently visible and cannot be hidden
16 Occupancy indicator Follow steps in Hiding icons on the home screen section
17 Default display value (setpoint, zone
temperature, relative humidity)
Follow steps in Hiding icons on the home screen section to
hide display values for 5, 6, 7, and 8
