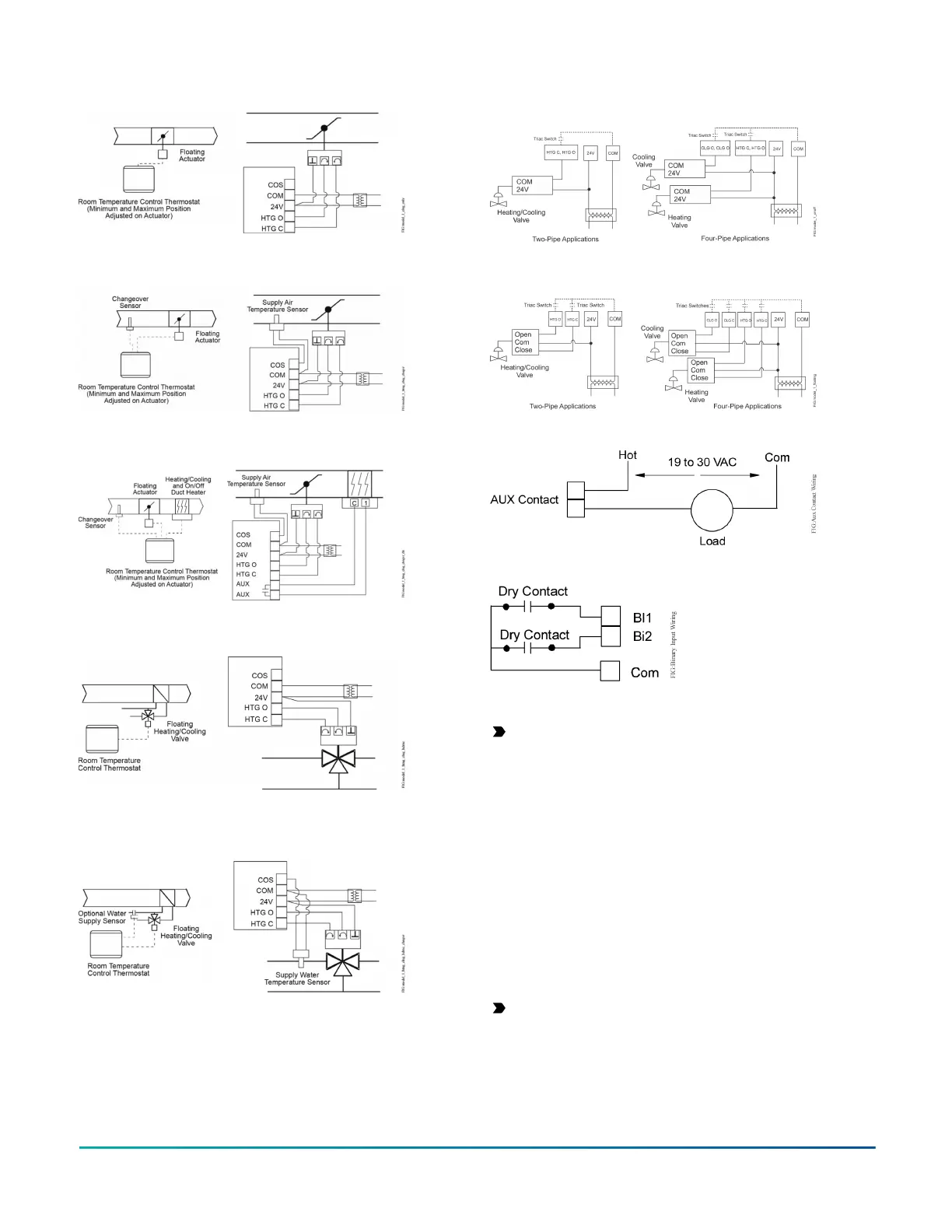

Figure 9: Floating control (pressure-dependent VAV)
Figure 10: Floating control (pressure-dependent VAV
with changeover sensor/switch)
Figure 11: Floating control (pressure-dependent VAV
with changeover sensor/switch and reheat)
Figure 12: Floating control two-pipe heating and
cooling hydronic valve control fan coil application
Figure 13: Floating control two-pipe heating and
cooling hydronic valve control with changeover fan
coil application
Figure 14: Floating control (on/off two-pipe and four-
pipe fan coil applications)
Figure 15: Floating control (floating two-pipe and four-
pipe fan coil applications)
Figure 16: AUX contact wiring
Figure 17: Binary input wiring
Setup and adjustments
Important: Table 7 provides a full list of TEC3000
menu settings. Refer to TEC3000 Series On/Off or
Floating Fan Coil Thermostats Installation Guide
(LIT-12013161) for step-by-step instructions on how
to access and adjust the more commonly used
menus.
Overview
About this task:
Figure 18 shows the thermostat controller home screen
in both the light and dark themes in heating mode. You
can customize it to show or hide various elements from
the occupant. See Table 4 for a listing of the touchscreen
icons. When screen customization is used in conjunction
with a passcode, the building owner can control which
options the occupant can access and adjust.
Important: If lockout levels are used, some icons
are hidden. Table 5 provides details of these levels.
TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide 9
