Johnson Controls TM9E Series User Manual

1083163-UIM-J-0918
18 Johnson Controls Unitary Products

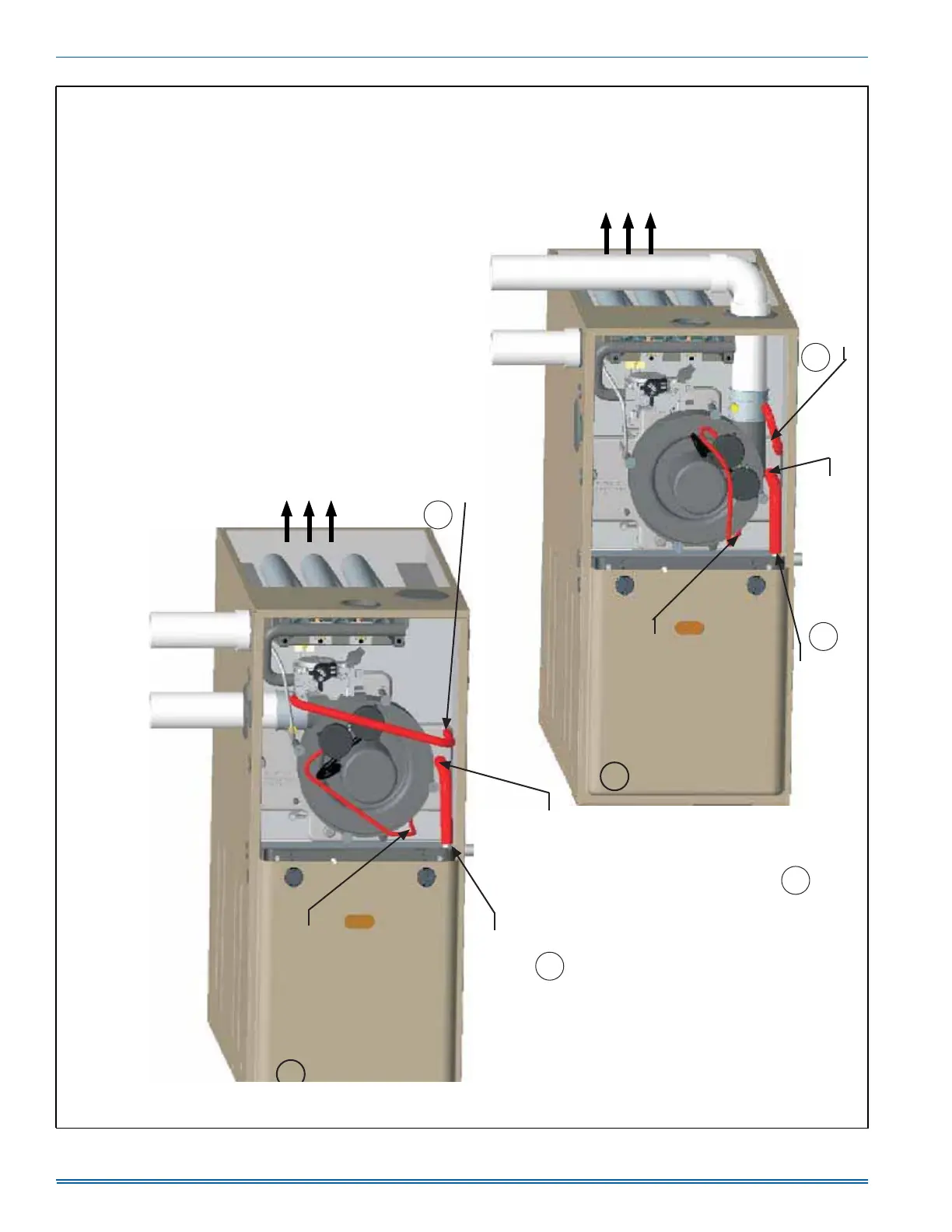

FIGURE 20: Horizontal Right Configuration
AIRFLOW
HORIZONTAL - RIGHT
INDUCER ROTATED
HORIZONTAL - RIGHT
INDUCER AS RECEIVED
Move rain gutter hose to this position
Move pressure switch hose to this position.
C
hange condensate
d
rain connection to
h
e 90° fitting
p
rovided
Move condensate drain hose to this position
Move rain gutter hose to this position
Change condensate drain connection to the 90° fitting provided
Move condensate drain hose to this position
AIRFLOW
Move pressure switch hose to this position.
When drain hose routing changes are required, be sure to cap all un-used openings.
If rerouting hoses - excess length should be cut off so that no sagging loops will collect and hold condensate, which will cause the furnace to not operate.
3
4
1
1
2
3
4
