Johnson Controls TM9E Series User Manual

1083163-UIM-J-0918
Johnson Controls Unitary Products 17

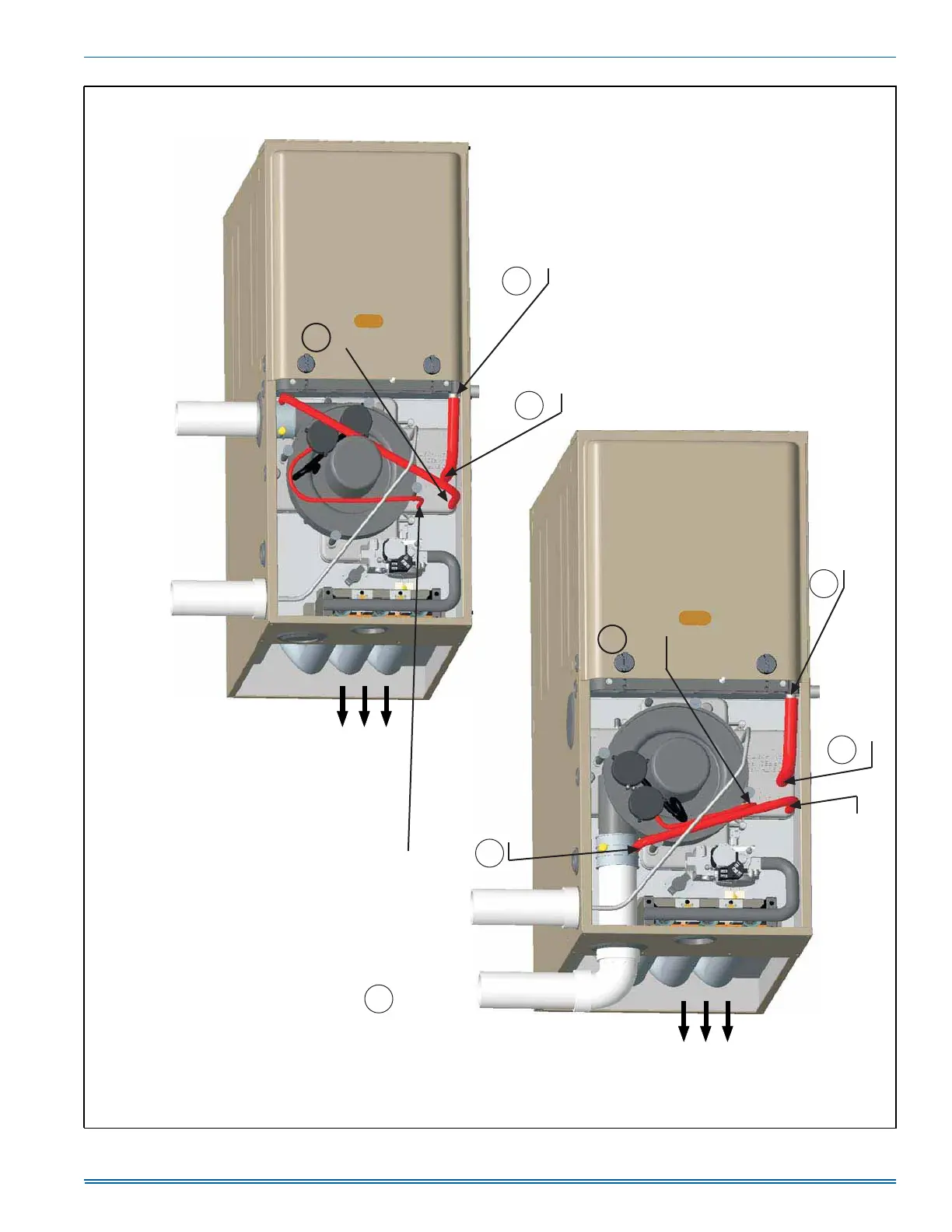

FIGURE 19: Horizontal Left Configuration
HORIZONTAL - LEFT
INDUCER ROTATED
HORIZONTAL - LEFT
INDUCER AS RECEIVED
AIRFLOW
R
FLOW
Move pressure switch hose to this position. NOTE: May require the longer hose that is provided with wider cabinets
M
ove rain gutter hose to this position
N
OTE: May require hose extension
t
hat is provided with wider cabinets
Move rain gutter hose to this position
Move pressure switch hose to this position. NOTE: May require the longer hose that is provided with wider cabinets
Change condensate drain connection to the 90° fitting provided
Move condensate drain hose to this position
Move rain gutter hose to this position. NOTE: May require hose extension that is provided with wider cabinets
Move condensate drain hose to this position
Change condens
a
drain connection t
o
the 90° fitting pro
v
When drain hose routing changes are required, be sure to cap all un-used openings.
If rerouting hoses - excess length should be cut off so that no sagging loops will collect and hold condensate, which will cause the furnace to not operate.
1
2
4
5
3
4
1
2
