Johnson Controls TM9X*MP User Manual

697936-UIM-B-01211
Johnson Controls Unitary Products 19

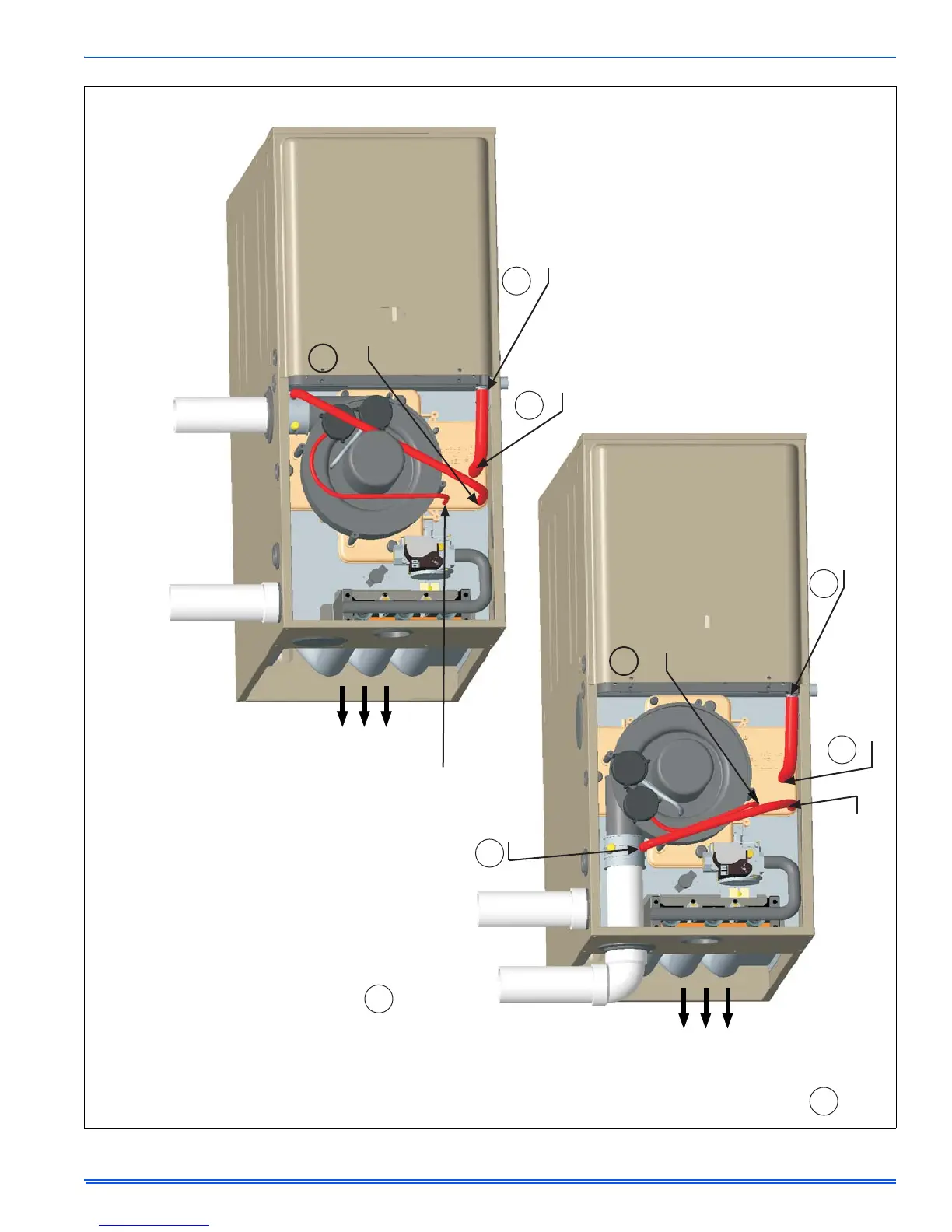

FIGURE 24: Horizontal Left Configuration
HORIZONTAL - LEFT
INDUCER ROTATED
HORIZONTAL - LEFT
INDUCER AS RECEIVED
AIRFLOW
AIRFLOW
Move pressure switch hose to this position. NOTE: May require the longer hose that is provided with wider cabinets
Move rain gutter hose to this position NOTE: May require hose extension that is provided with wider cabinets
Move rain gutter hose to this position
Move pressure switch hose to this position. NOTE: May require the longer hose that is provided with wider cabinets
Change condensate drain connection to the 90° fitting provided
Move condensate drain hose to this position
Move rain gutter hose to this position NOTE: May require hose extension that is provided with wider cabinets
Move condensate drain hose to this position
Change condensate drain connection to the 90° fitting provided
When drain hose routing changes are required, be sure to cap all un-used openings.
If rerouting hoses - excess length should be cut off so that no sagging loops will collect and hold condensate, which will cause the furnace to not operate.
1
2
3
4
5
3
4
1
2
