Johnson Controls Y20EBD Series User Manual

14 M Motor Actuators
—
Y20EBD Valve Linkage for M100 Motor Actuators
Y20D1-12
Nut
Hex Capscrew
High
Temperature
Washer
M100
Motor
Actuator

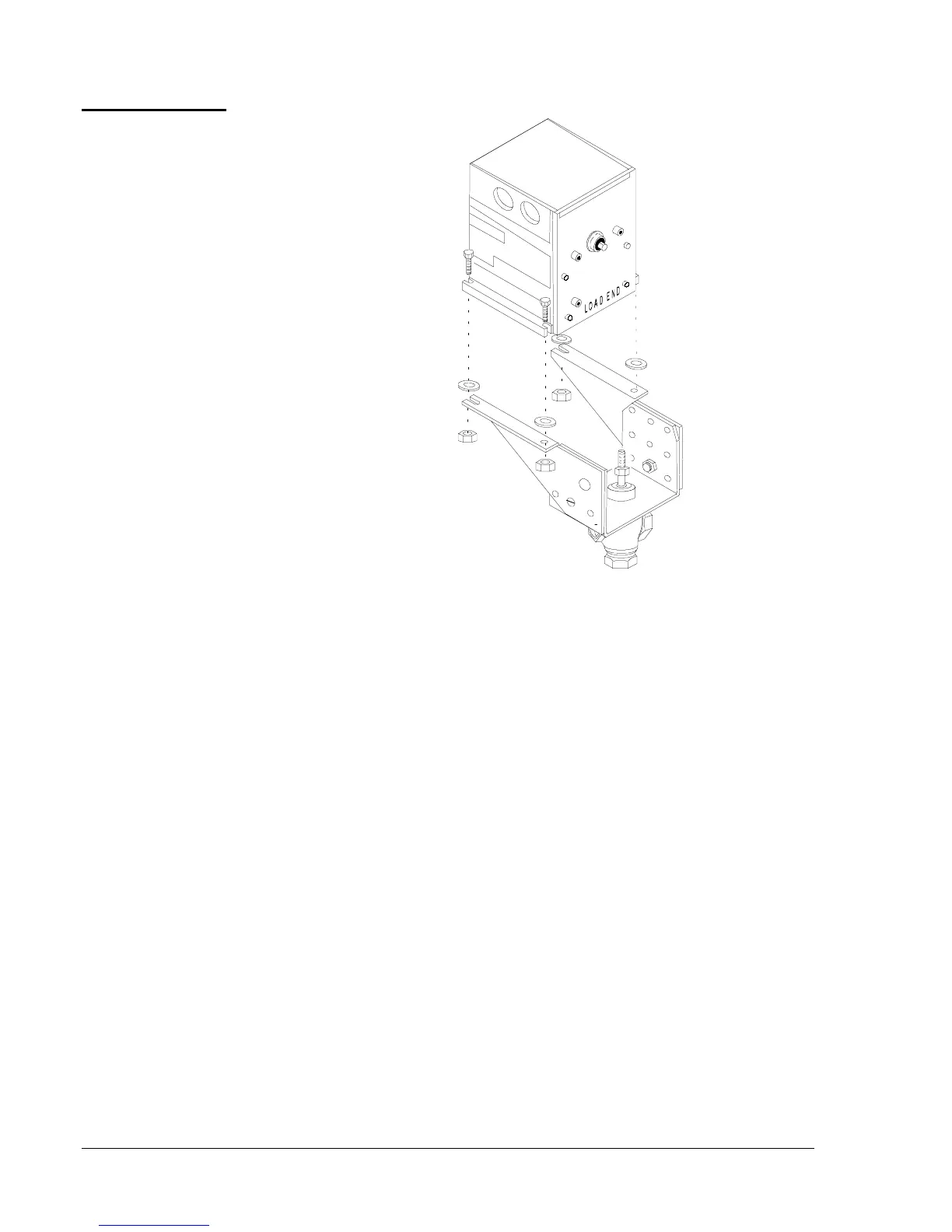

Figure 12: Mounting Motor Actuator
1. Locate the load end over the yoke.
2. Mount the actuator onto the brackets using the four bolts and nuts, but
do not tighten.
Note: If the temperature of the valve or its media is high enough to raise
the actuator temperature above its limit of 125°F (52°C), insert the
four white insulating washers (provided with the linkage kit)
between the actuator and the brackets. For lower temperature
applications, omit the insulating washers.
Actuator and
Linkage
Mounting
Actuator
