Johnson Controls ZFR1831 Pro Series User Manual

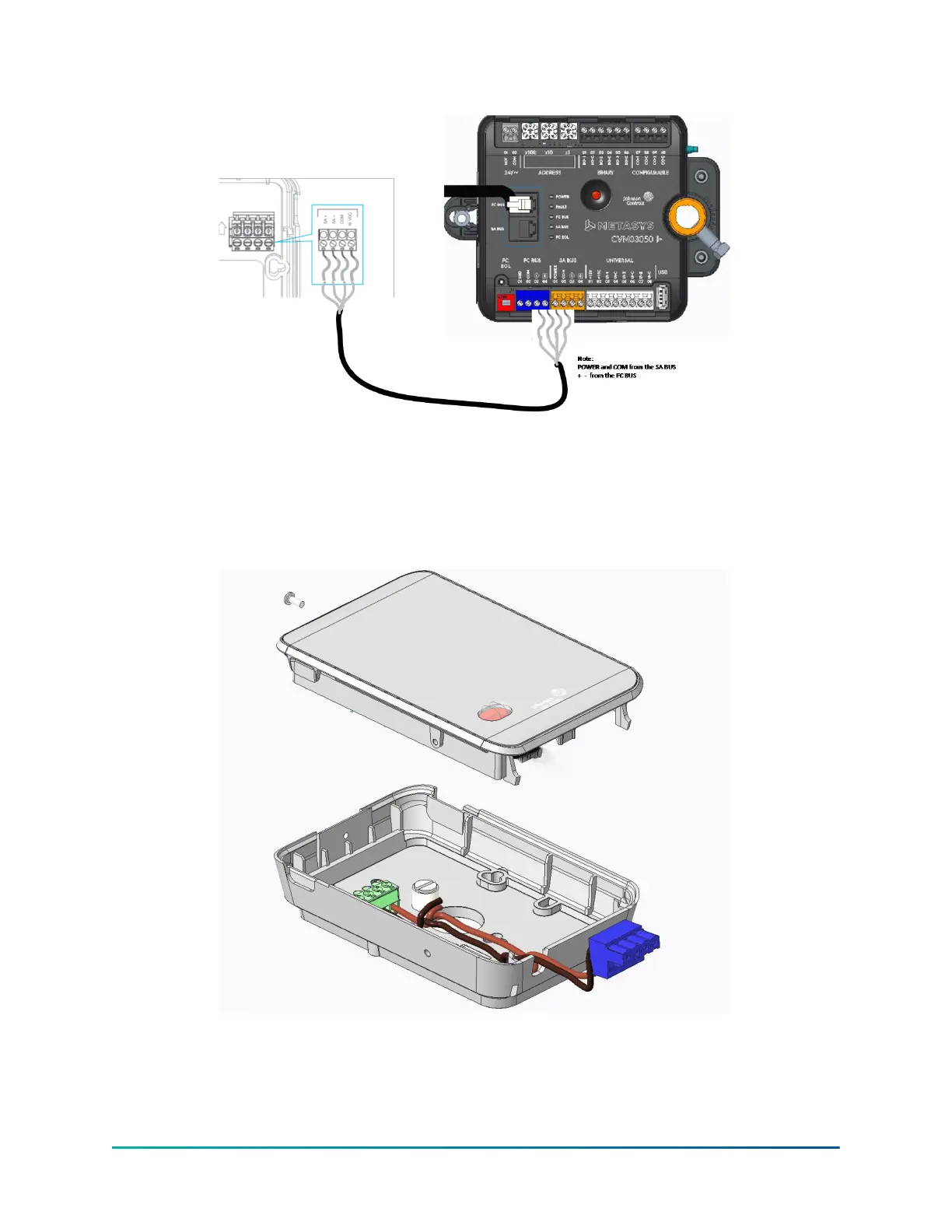

Figure 6: ZFR1831 wired to a field controller via screw terminal
Using as a Repeater (stand-alone mode)
1. Follow the mounting instructions above for mounting to either wall, conduit, or ceiling grid.
2. Connect a 15VDC to 24 VAC source to the wireless router’s screw terminal pin connectors.
Figure 7: ZFR1831 wired as Stand-alone Repeater
Using as a coordinator connected to WRG
1. Follow the mounting instructions above for mounting to either wall, wall box, conduit or
ceiling grid.
ZFR1831 Pro Series Wireless Router Installation Guide8
Johnson Controls - CONFIDENTIAL
