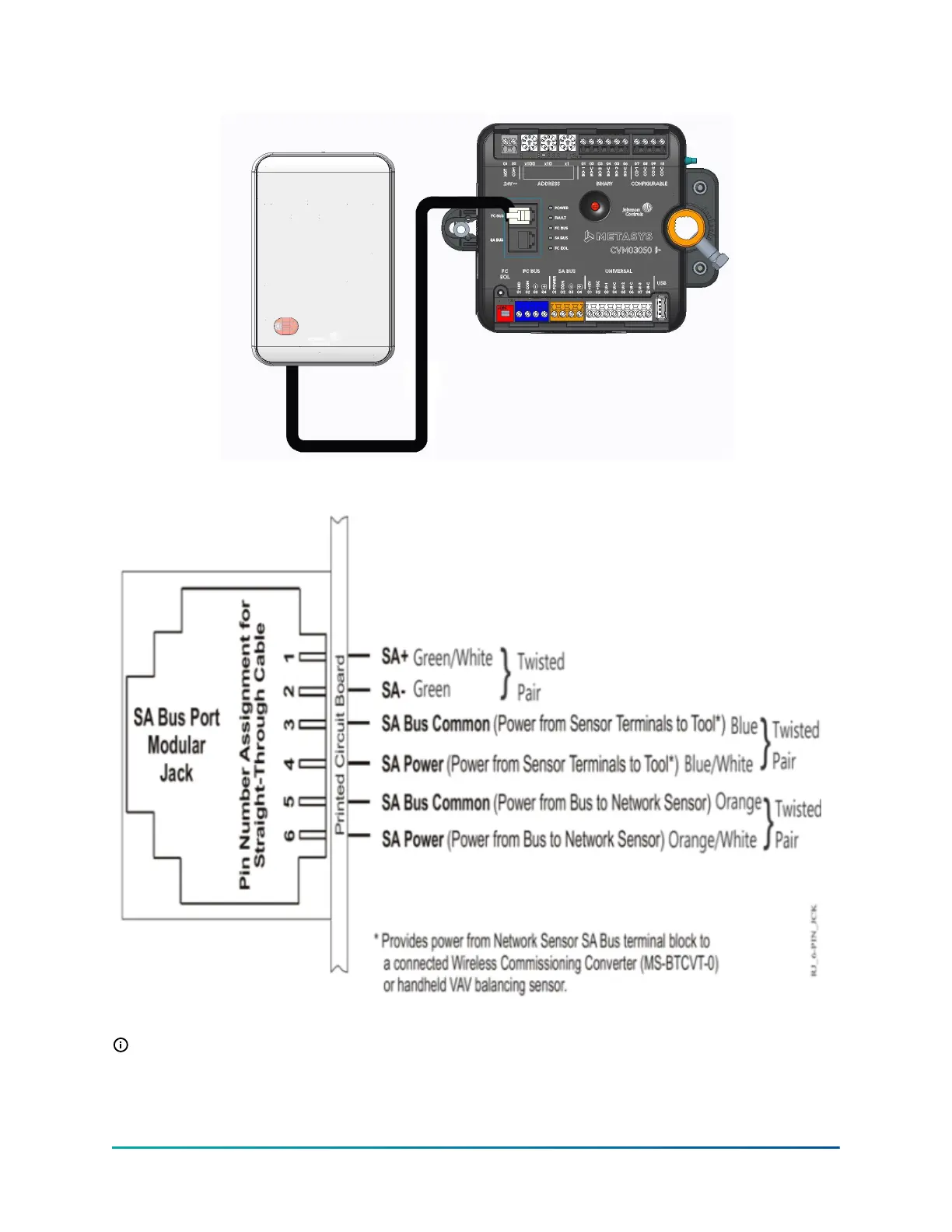

Figure 4: ZFR1831 wired to a Field Controller via RJ12

Figure 5: RJ12 pin out on the controller

Note: See MS/TP Communications Bus Technical Bulletin (LIT-12011034) for more information.

7ZFR1831 Pro Series Wireless Router Installation Guide

Johnson Controls - CONFIDENTIAL
