©2014 Johnson Level & Tool - Rev. 1 9

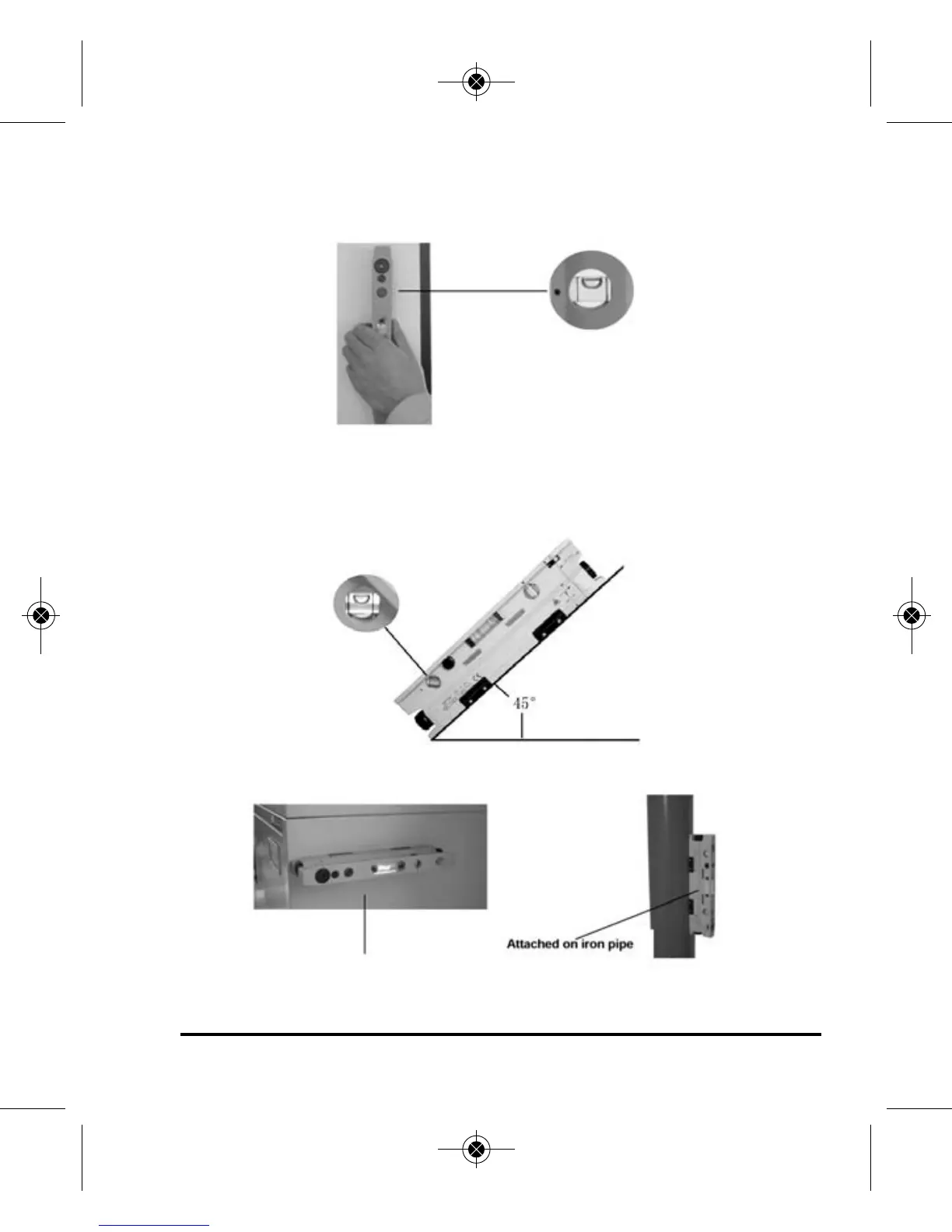

Vertical Usage
Center the plumb vial as shown in the illustration
Angle Usage
Center the 45º vial as shown in the illustration.
Magnetic base usage
Attached on any ferrous surface
7722H_Manuals 1/17/14 8:02 AM Page 9
