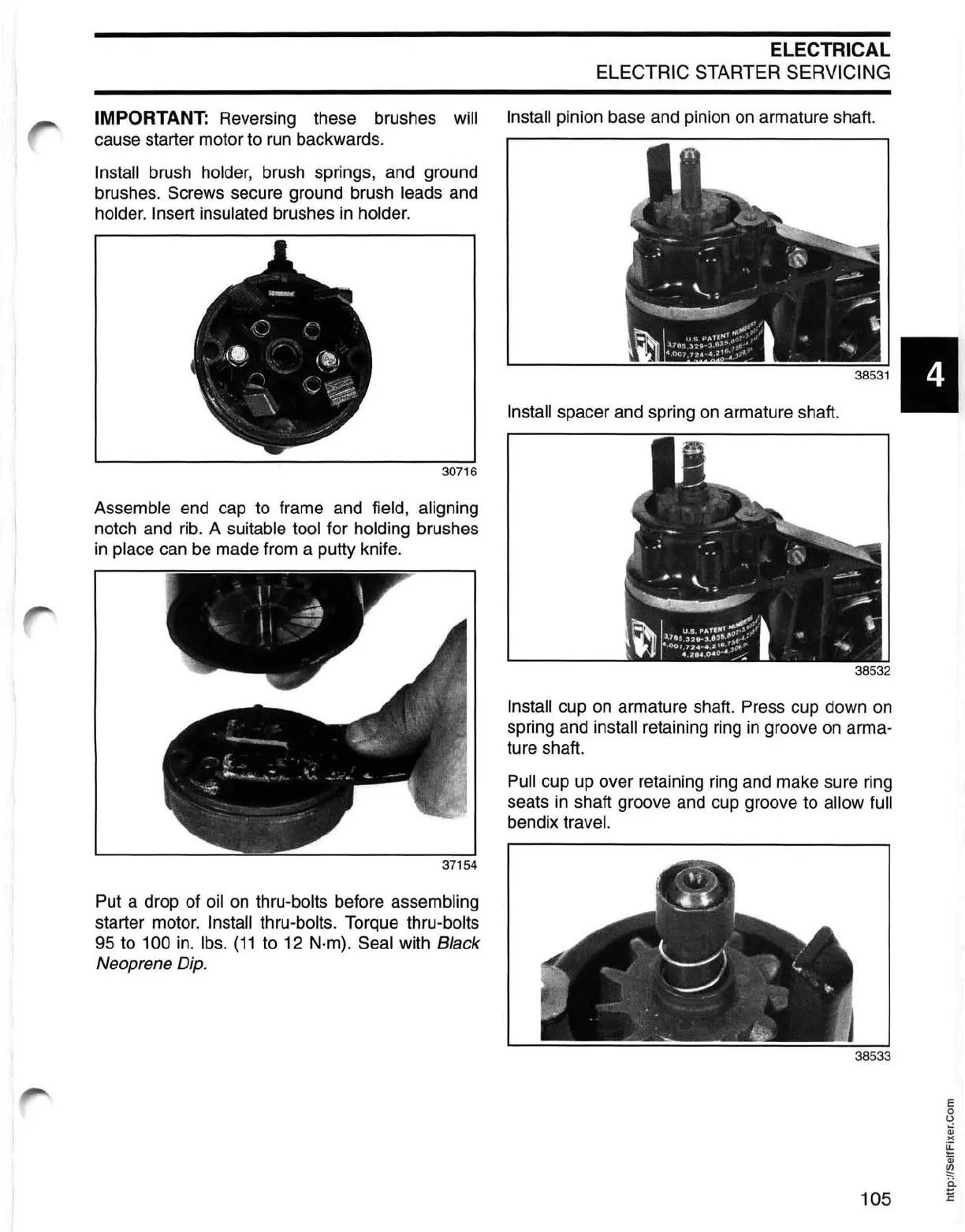

ELECTRICAL
ELECTRIC STARTER SERVICING
IMPORTANT: Reversing these brushes will Install pinion base and pinion
on
armature shaft.
cause starter motor
to
run
backwards.
Install brush holder, brush springs, and ground
brushes. Screws secure ground brush
leads and
holder. Insert insulated brushes
in
holder.
30716
Assemble
end
cap
to frame and field, aligning
notch and
rib.
A suitable tool for holding brushes
in
place
can
be
made from a putty knife.
Put a drop of
oil
on
thru-bolts before assembling
starter
motor.
Install thru-bolts. Torque thru-bolts
95
to 100
in.
Ibs.
(11
to
12
N·m). Seal with Black
Neoprene Dip.
Install spacer and spring
on
armature shaft.
38532
Install cup
on
armature shaft. Press cup down
on
spring and install retaining
ring
in
groove
on
arma-
ture shaft.
Pull cup up over retaining
ring
and make sure ring
seats
in
shaft groove
and
cup
groove to allow full
bendix travel.
E
o
o
:;j
)(
~
Qj
~
i::i.
105
~
