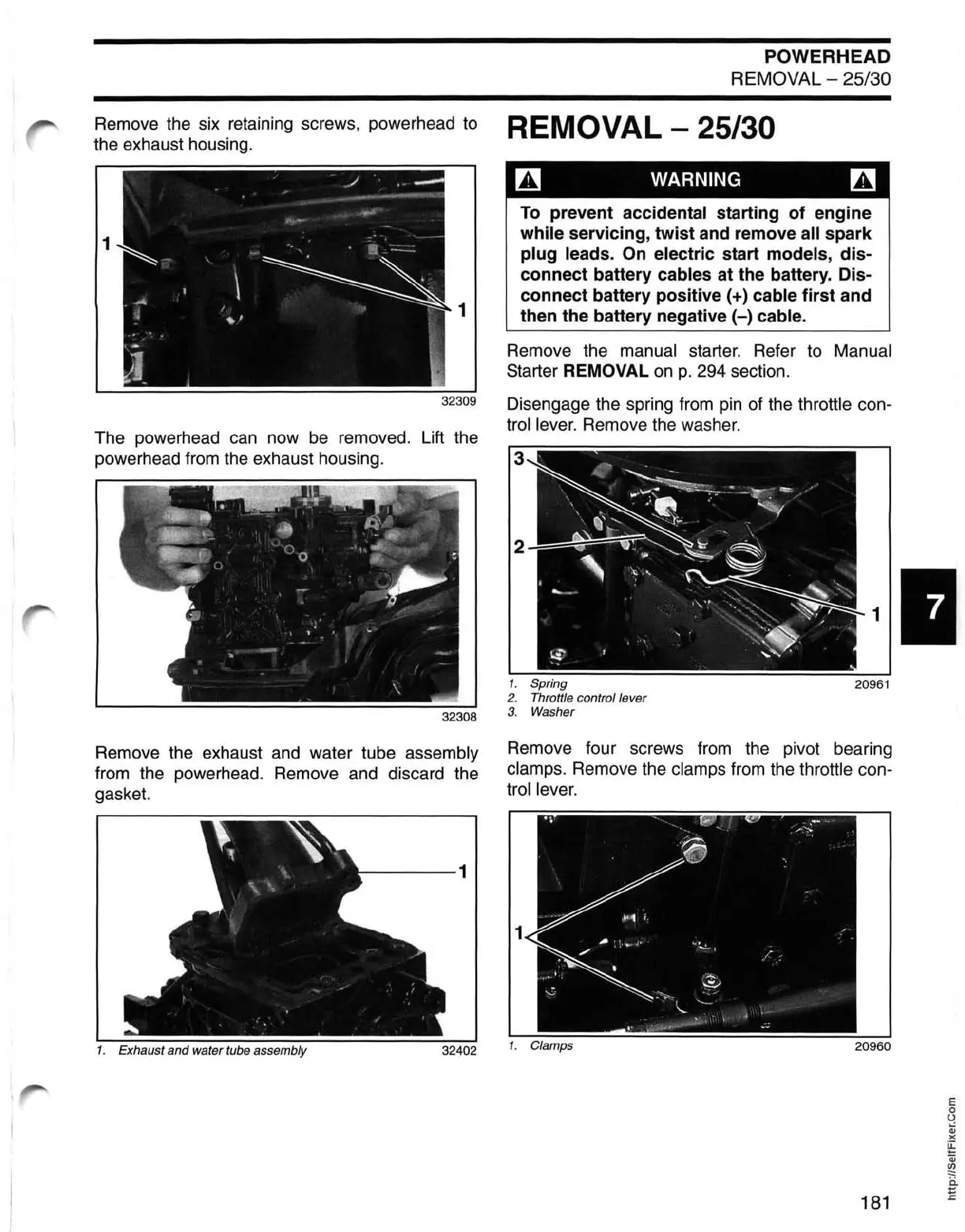

POWERHEAD
REMOVAL - 25/30
Remove the six retaining screws, powerhead
to
REMOVAL -
25/30
the exhaust housing.
1
The powerhead
can
now
be
removed. Lift the
powerhead from
the
exhaust housing.
Remove the exhaust
and
water tube assembly
from the powerhead. Remove and discard the
gasket.
~---1
1.
Exhaust
and
water tube assembly 32402
m WARNING m
To
prevent accidental starting
of
engine
while servicing,
twist
and remove all spark
plug
leads. On electric start models,
dis-
connect battery cables at the battery. Dis-
connect battery positive
(+) cable
first
and
then
the
battery negative
(-)
cable.
Remove the manual starter. Refer to Manual
Starter REMOVAL
on
p.
294 section.
Disengage the spring
from
pin
of the throttle con-
trollever. Remove the washer.
Spring
Throttle control lever
Washer
1
20961
Remove four screws
from
the pivot bearing
clamps. Remove the clamps from the throttle con-
trollever.
1
181
I
