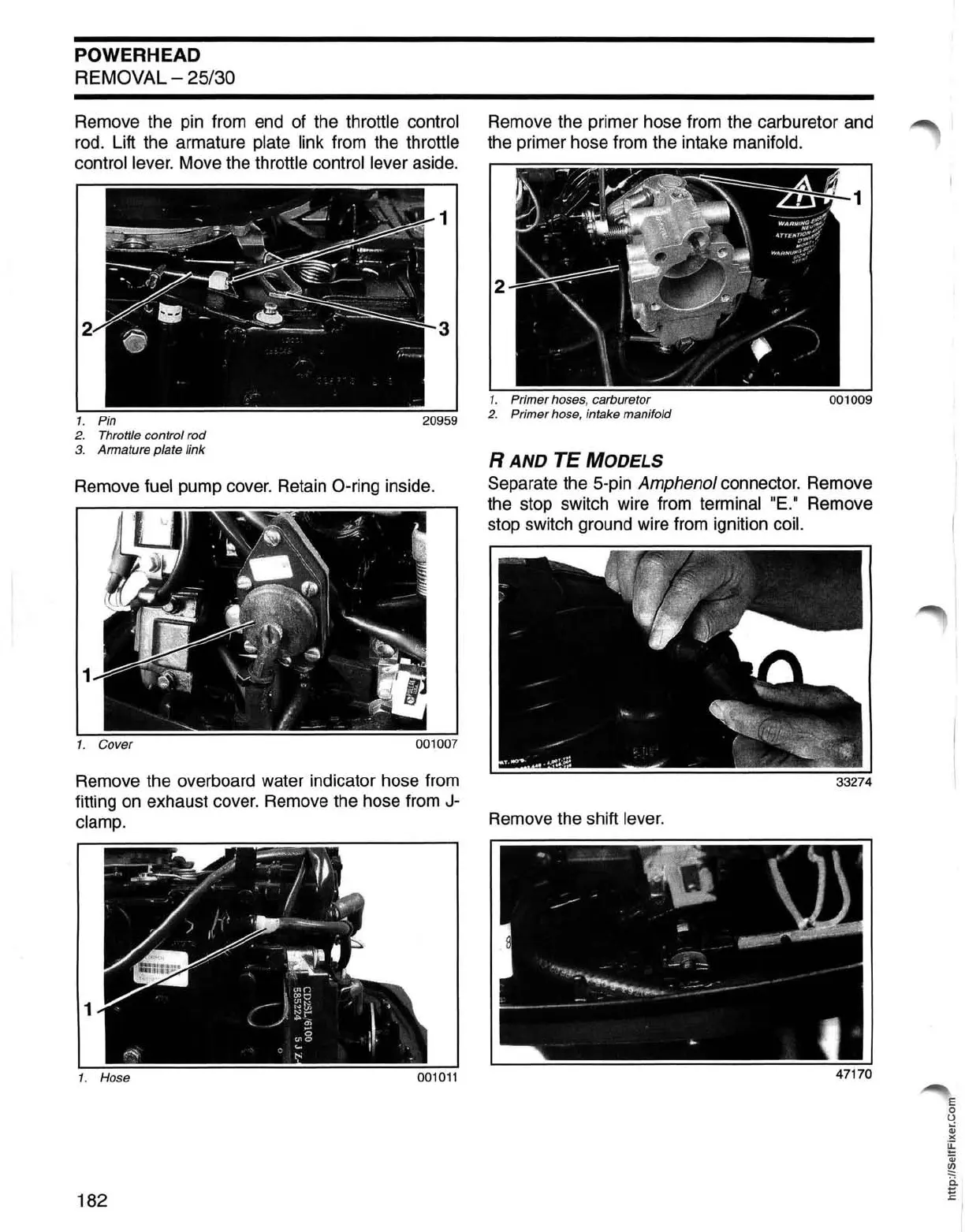

POWERHEAD
REMOVAL - 25/30
Remove the pin from
end
of the throttle control
rod.
Lift the armature plate link from the throttle
control lever.
Move the throttle control lever aside.
1.
Pin
20959
2. Throttle control rod
3. Armature plate link
Remove fuel pump
cover.
Retain O-ring inside.
1.
Cover
001007
Remove the overboard water indicator hose from
fitting
on
exhaust cover. Remove the hose from J-
Remove the primer hose from the carburetor and
the primer hose from the intake
manifold.
1. Primer hoses, carburetor
001009
2. Primer hose, intake manifold
RAND
TE
MODELS
Separate the 5-pin Ampheno/ connector. Remove
the stop switch wire
from
terminal "E." Remove
stop switch ground wire from ignition
coil.
33274
clamp. Remove the shift lever.
