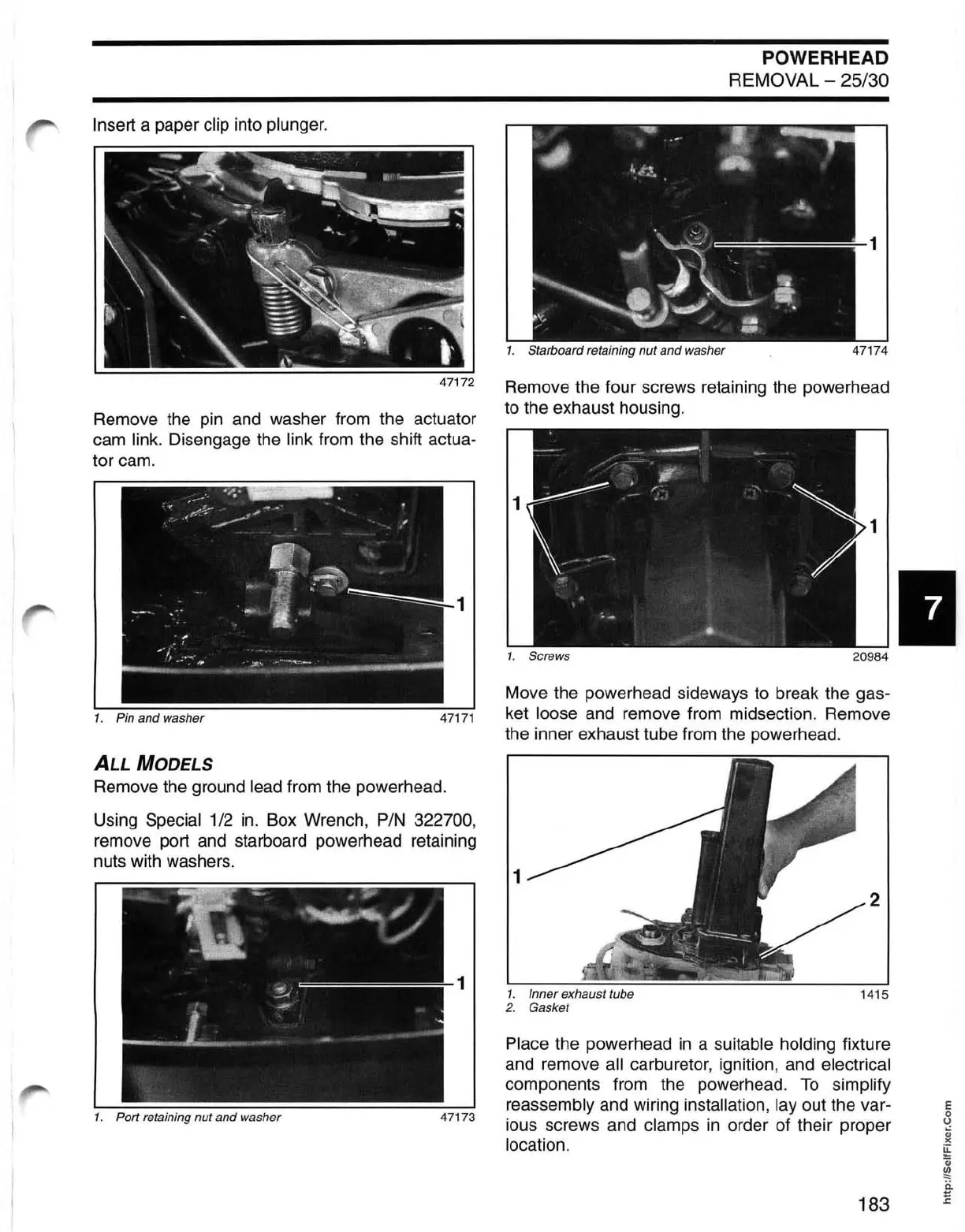

Insert a paper clip into plunger.
Remove the pin
and
washer from the actuator
cam
link. Disengage the link from the shift actua-
tor cam.
1
1. Pin and washer
47171
ALL
MODELS
Remove the ground lead from the powerhead.
Using
Special 1/2
in.
Box Wrench,
PIN
322700,
remove port and starboard powerhead retaining
nuts with washers.
1.
Port retaining nut and washer 47173
1.
Starboard retaining nut
and
washer
POWERHEAD
REMOVAL - 25/30
47174
Remove the four screws retaining the powerhead
to the exhaust housing.
1. Screws
20984
Move the powerhead sideways to break the gas-
ket
loose and remove from midsection. Remove
the inner exhaust tube from the powerhead.
2
1. Inner exhausttube
1415
2.
Gasket
Place the powerhead
in
a suitable holding fixture
and remove
all carburetor, ignition, and electrical
components from the powerhead.
To
simplify
reassembly
and wiring installation,
layout
the var-
ious screws and
clamps
in
order of their proper
location.
183
