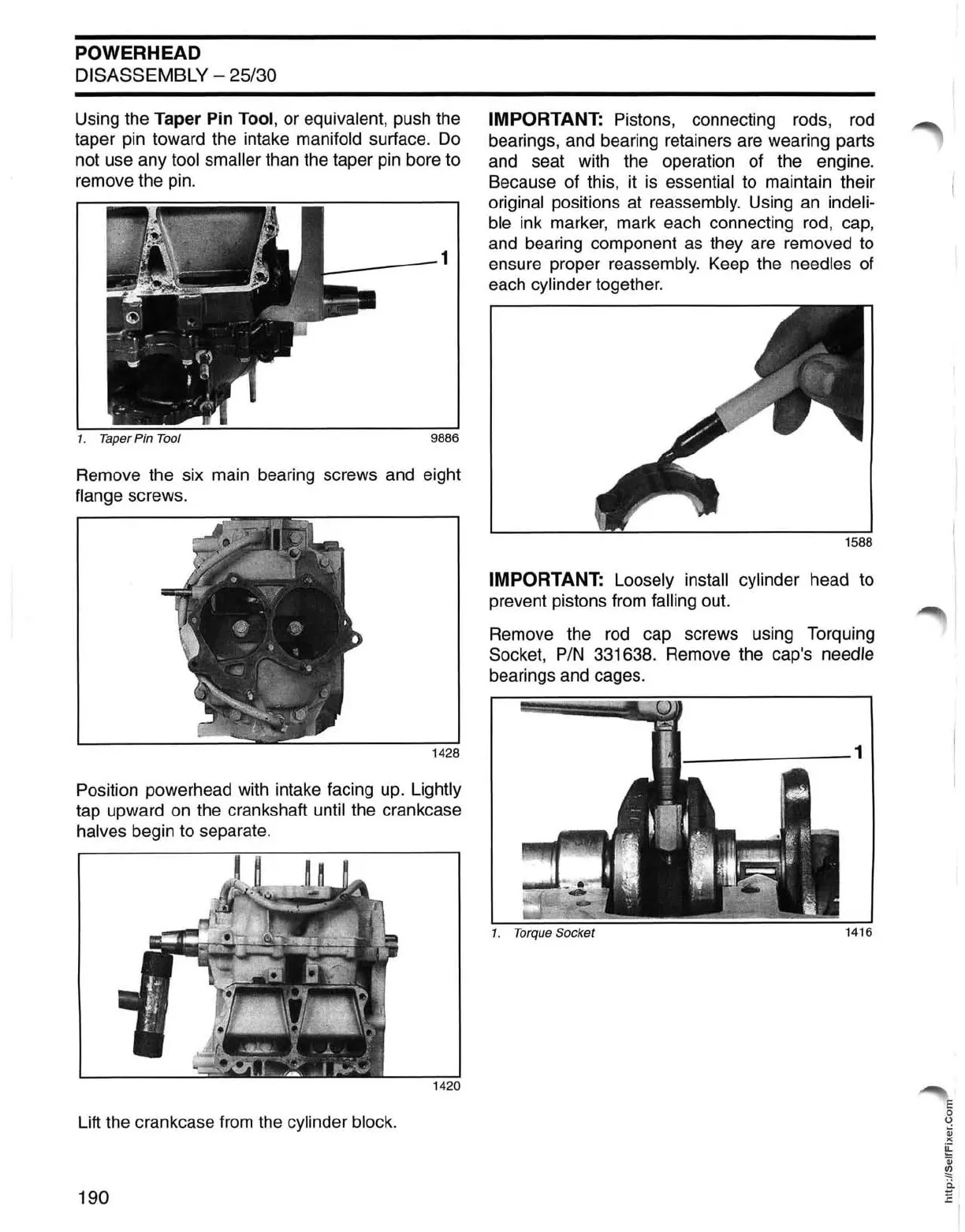

POWERHEAD
DISASSEMBLY - 25/30
Using the Taper Pin Tool, or equivalent, push the
taper pin toward the intake
manifold surface.
Do
not use any tool smaller than the taper pin bore to
remove the pin.
_---1
1.
Taper
Pin Tool
9886
Remove the six main bearing screws and eight
flange screws.
1428
Position powerhead with intake facing
up.
Lightly
tap upward on the crankshaft until the crankcase
halves begin to separate.
1420
Lift the crankcase from the cylinder block.
190
IMPORTANT: Pistons, connecting rods, rod
bearings, and bearing retainers are wearing parts
and seat with the operation of the engine.
Because of this, it
is
essential to maintain their
original positions at reassembly. Using an indeli-
ble
ink marker, mark each connecting rod, cap,
and bearing component
as
they are removed to
ensure proper reassembly. Keep the
needles of
each
cylinder together.
IMPORTANT: Loosely install cylinder head to
prevent pistons from
falling out.
Remove the
rod
cap screws using Torquing
Socket,
PIN
331638. Remove the cap's needle
bearings and cages.
!
___
---1
1.
Torque Socket
1416
E
o
o
~
><
~
OJ
~
i:i
E
