Lift the crankshaft out of the cylinder block.
Replace
the
rod
caps
on
the rods. Orient them
exactly as they were before you removed them.
Install the screws finger tight.
Rotate the powerhead so the
cylinder head faces
up. Remove the cylinder head and gently push up
on
the connecting rods to remove number 1 and
number 2 piston assemblies. Protect the condition
of the piston by packing paper towels between the
connecting
rod
and piston.
Do
not allow the con-
necting
rod
to contact the inside of the piston skirt
during
handling.

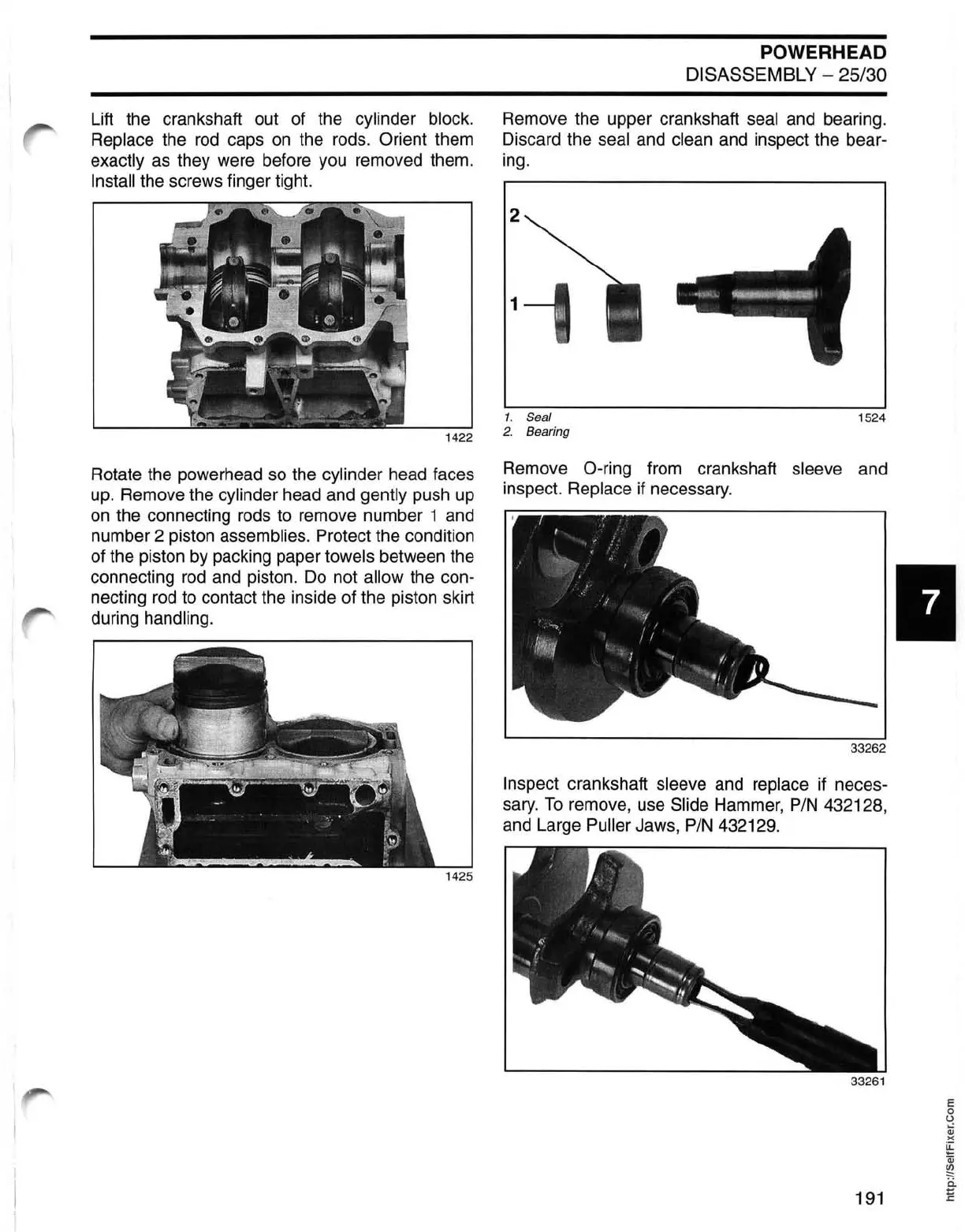

POWERHEAD
DISASSEMBLY - 25/30
Remove the upper crankshaft seal and bearing.
Discard the
seal and clean and inspect the bear-
ing.
2
1
1. Seal
1524
2. Bearing
Remove a-ring from crankshaft sleeve and
inspect.
Replace if necessary.
Inspect crankshaft sleeve and replace if neces-
sary.
To
remove, use Slide Hammer,
PIN
432128,
and Large
Puller Jaws,
PIN
432129.
E
o
o
:;j
)(
~
Qj
~
i::i.
191
~
