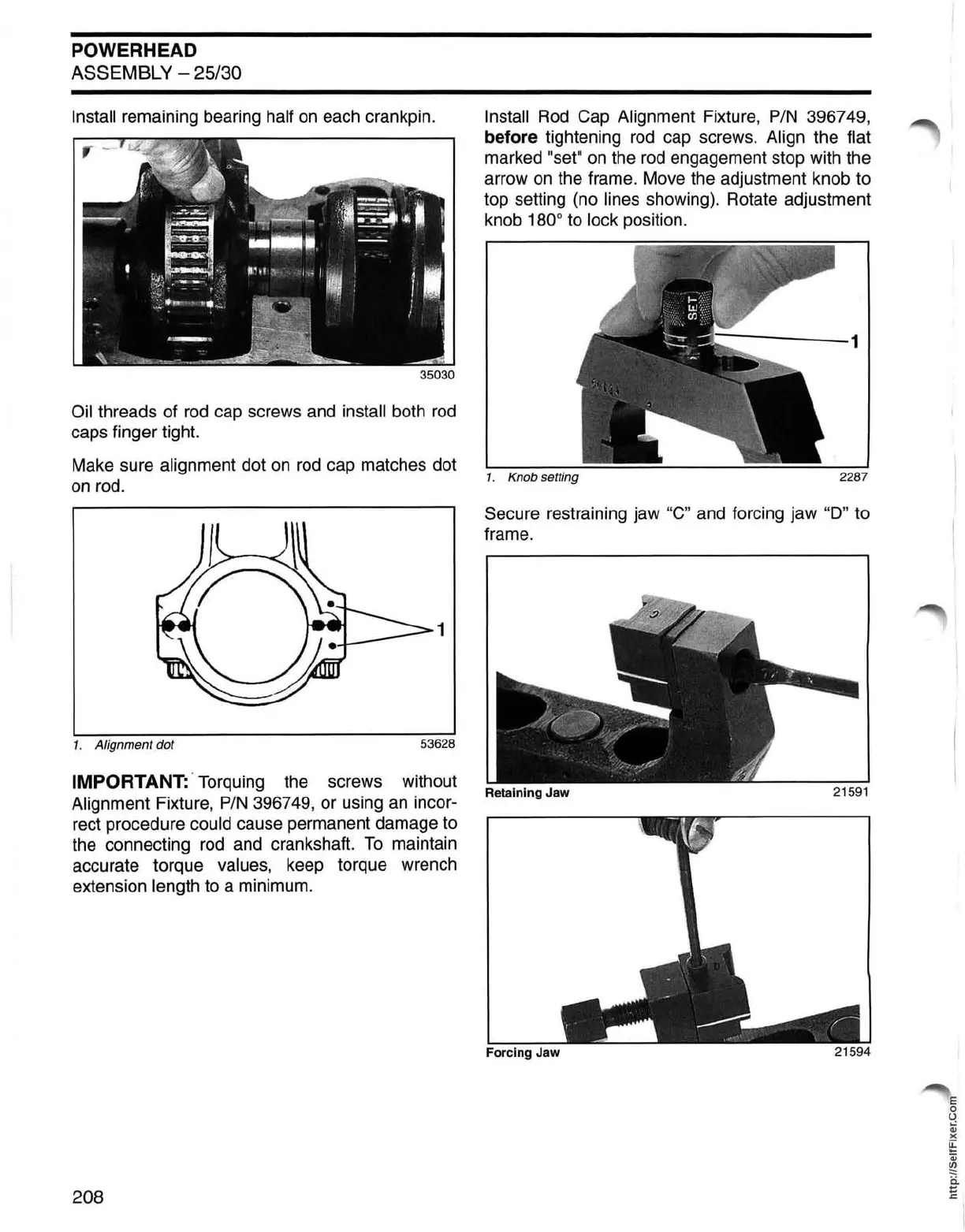

POWERHEAD
ASSEMBLY - 25/30
Install remaining bearing half on each crankpin.
35030
Oil threads of rod cap screws and install both rod
caps finger tight.
Make sure
alignment dot on rod cap matches dot
on rod.
1
1. Alignment dot
53628
IMPORTANT: . Torquing the screws without
Alignment Fixture, PIN 396749, or using an incor-
rect procedure
could cause permanent damage to
the connecting
rod and crankshaft. To maintain
accurate torque
values, keep torque wrench
extension
length to a minimum.
208
Install Rod Cap Alignment Fixture, PIN 396749,
before tightening rod cap screws. Align the flat
marked "set" on the rod engagement stop with the
arrow
on the frame. Move the adjustment knob to
top setting (no
lines showing). Rotate adjustment
knob
180
0
to lock position.
::-------1
1. Knob setting
2287
Secure restraining jaw "C" and forcing jaw "0" to
frame.
Retaining Jaw
Forcing Jaw
21594
E
o
u
oj
><
~
Qj
~
i::i.
E
