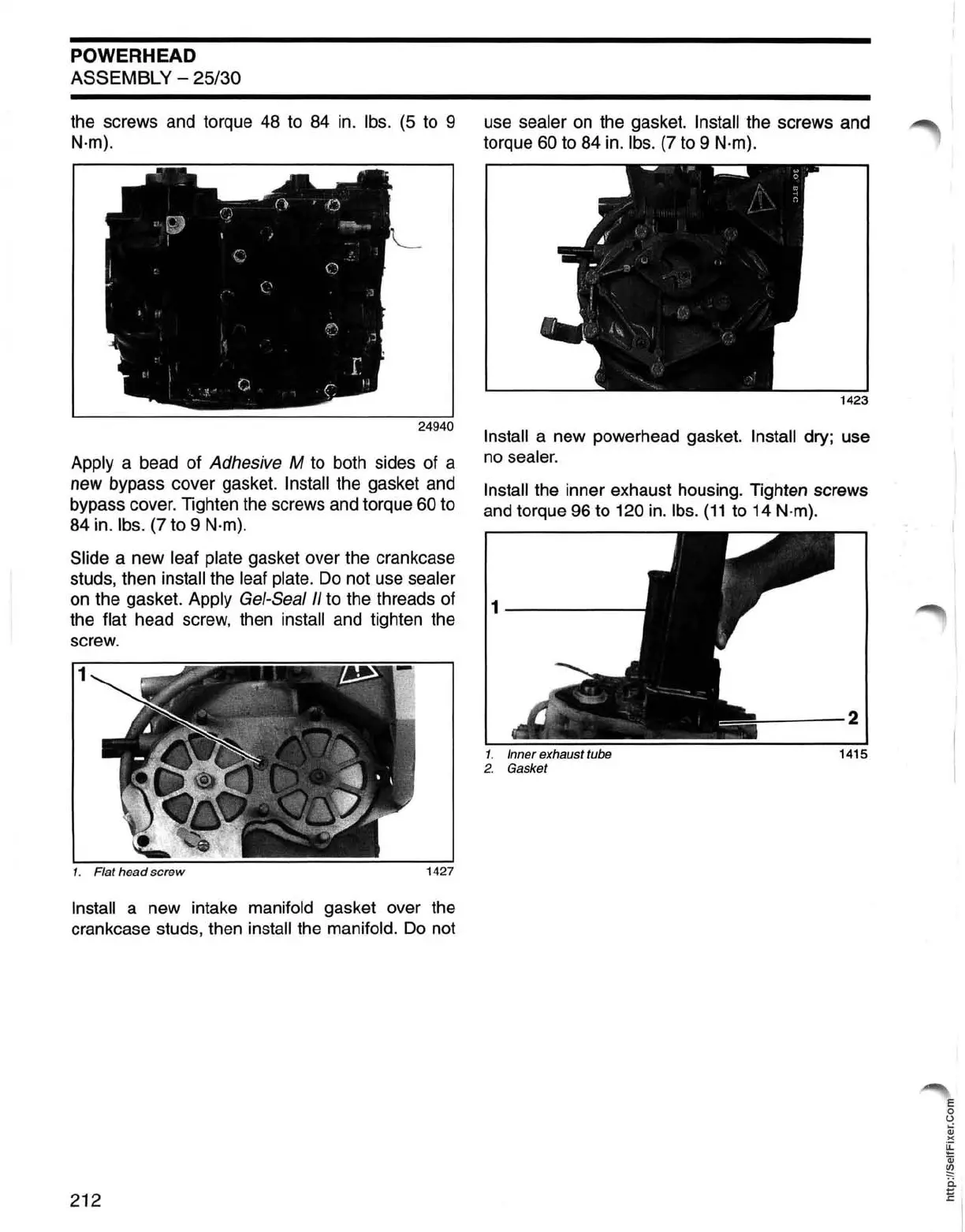

POWERHEAD
ASSEMBLY - 25/30
the screws and torque
48
to
84
in.
Ibs.
(5
to
9
N·m).
24940
Apply a bead of Adhesive M
to
both sides of a
new bypass cover gasket.
Install the gasket and
bypass cover. Tighten the screws and torque
60
to
84
in.
Ibs. (7 to 9 N·m).
Slide
a new leaf plate gasket over the crankcase
studs, then
install the leaf plate.
Do
not use sealer
on
the gasket. Apply
Gel-Seal"
to the threads of
the
flat head screw, then install and tighten the
screw.
1. Flat head screw
1427
Install a new intake manifold gasket over the
crankcase studs, then install the manifold.
Do
not
212
use sealer
on
the gasket. Install the screws and
torque
60 to 84
in.
Ibs.
(7
to
9 N·m).
Install
a new powerhead gasket. Install dry; use
no
sealer.
Install
the inner exhaust housing. Tighten screws
and torque
96
to 120
in.
Ibs.
(11
to 14 N·m).
1. Inner exhaust tube
1415
2.
Gasket
E
o
o
:;j
)(
~
Qj
~
~
I
