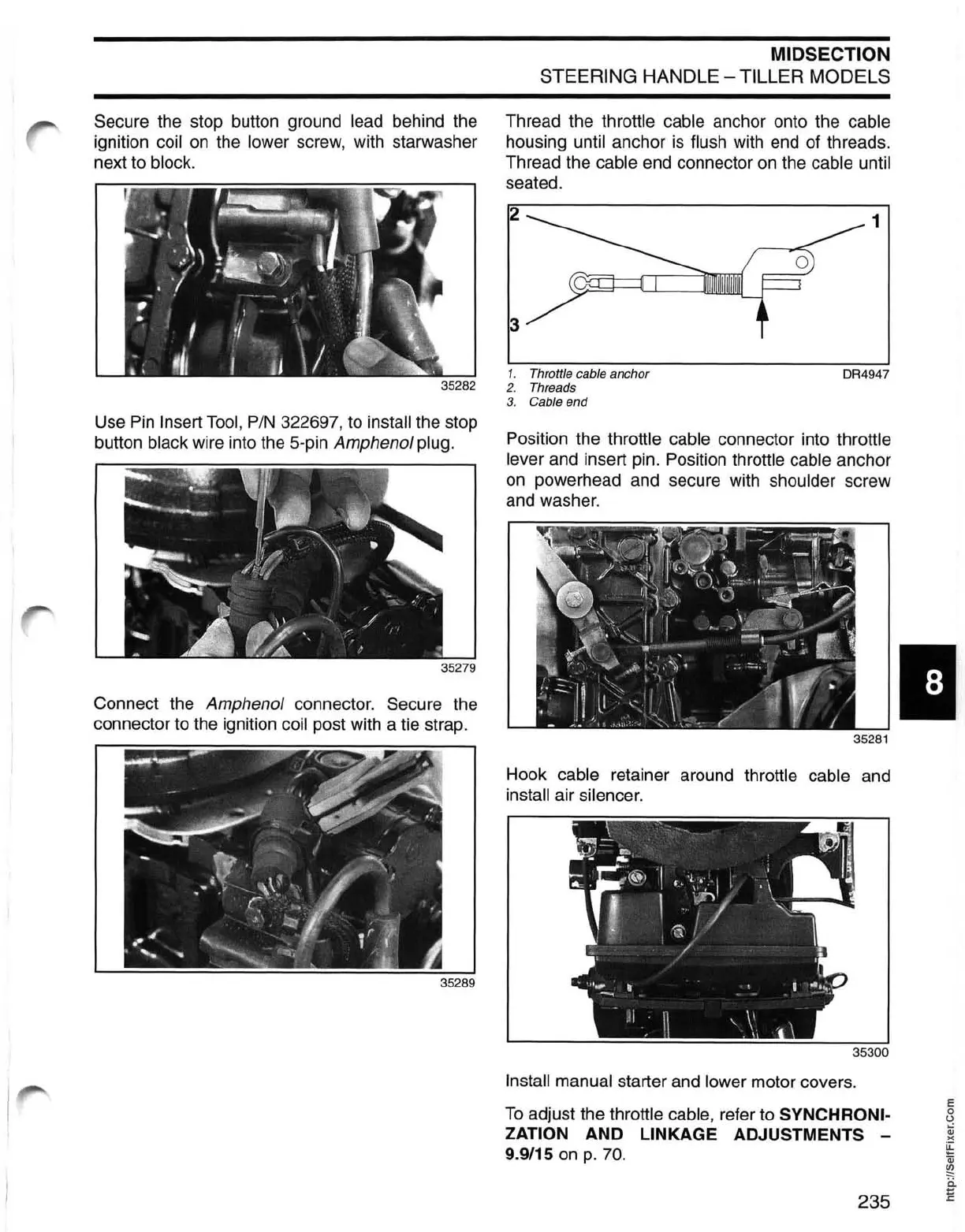

Secure the stop button ground lead behind the
ignition coil
on
the lower screw, with starwasher
next to block.
MIDSECTION
STEERING
HANDLE - TILLER MODELS
Thread the throttle cable anchor onto the cable
housing until anchor
is
flush with end of threads.
Thread the cable end connector
on
the cable until
seated.
2
1
3
1. Throttle cable anchor
DR4947
35282 2.
Threads
3.
Cable end
Use
Pin
Insert
Tool,
PIN
322697, to install the stop
button black wire into the 5-pin
Amphenol plug.
35279
Connect the Amphenol connector. Secure the
connector to the ignition coil post with a tie strap.
Position the throttle cable connector into throttle
lever and insert pin.
Position throttle cable anchor
on
powerhead and secure with shoulder screw
and washer.
35281
Hook cable retainer around throttle cable and
install air silencer.
Install manual starter and lower motor covers.
To
adjust the throttle cable, refer to SYNCHRONI-
ZATION
AND LINKAGE ADJUSTMENTS -
9.9115
on
p.
70.
235
I
