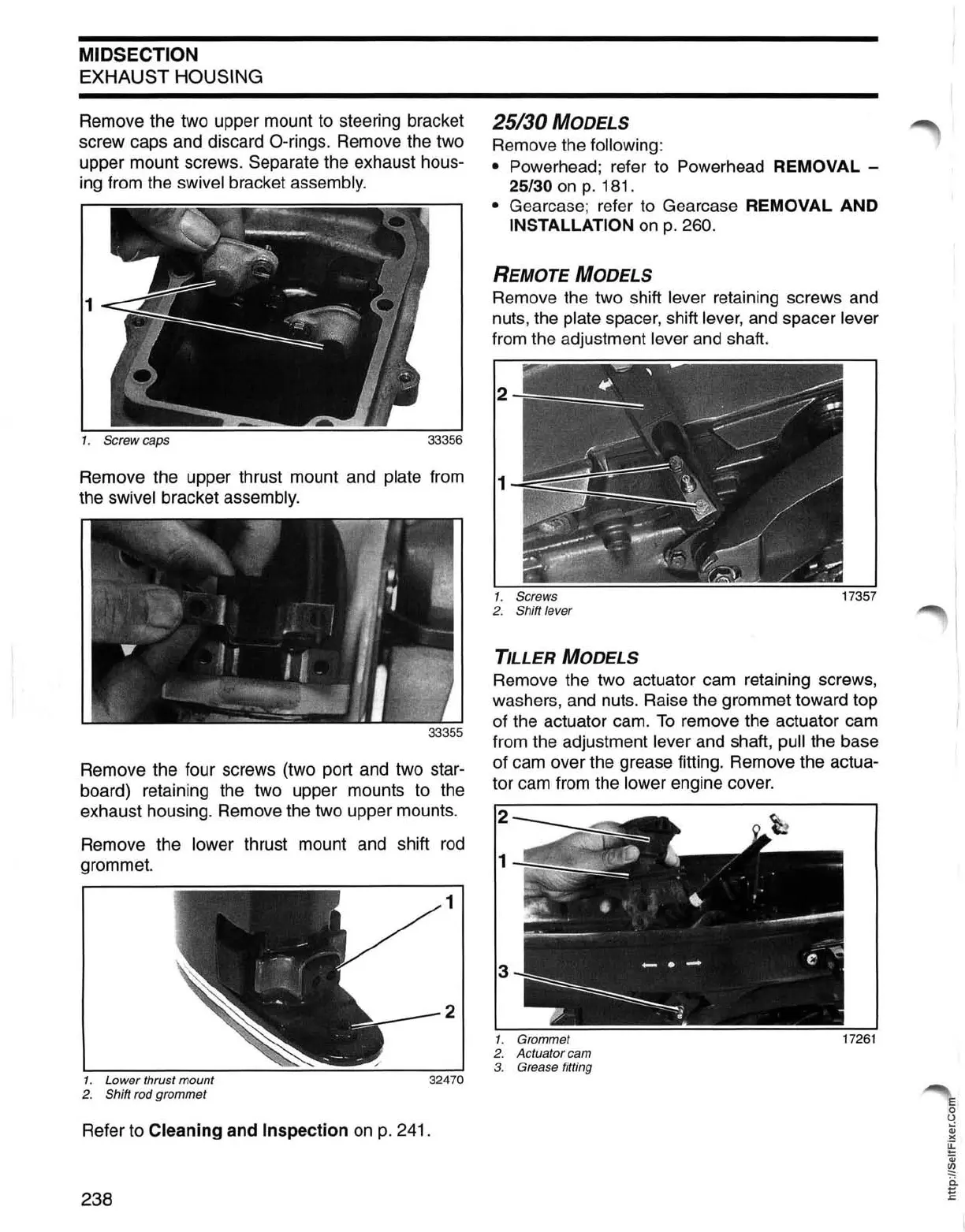

Johnson J30MLSRC User Manual

MIDSECTION
EXHAUST HOUSING
Remove the two upper mount to steering bracket
screw caps and discard O-rings. Remove the two
upper mount screws. Separate the exhaust hous-
ing from the
swivel bracket assembly.
1
Remove the upper thrust mount and plate from
the swivel bracket assembly.
33355
Remove the four screws (two port and two star-
board) retaining the two upper mounts to the
exhaust housing. Remove the two upper mounts.
Remove the
lower thrust mount and shift rod
grommet.
1. Lower thrust mount 32470
2. Shift rod grommet
Refer to Cleaning and Inspection on p. 241 .
238
25/30 MODELS
Remove the following:
• Powerhead;
refer to Powerhead REMOVAL -
25/30 on p. 181.
• Gearcase; refer to Gearcase REMOVAL AND
INSTALLATION on p. 260.
REMOTE MODELS
Remove the two shift lever retaining screws and
nuts, the
plate spacer, shift lever, and spacer lever
from the adjustment lever and shaft.
1. Screws
17357
2. Shift lever
TILLER MODELS
Remove the two actuator cam retaining screws,
washers, and nuts. Raise the grommet toward top
of the actuator cam.
To remove the actuator cam
from the adjustment
lever and shaft, pull the base
of cam over the grease fitting. Remove the actua-
tor cam from the
lower engine cover.
2
1
3
1. Grommet
2. Actuator cam
3. Grease fitting
