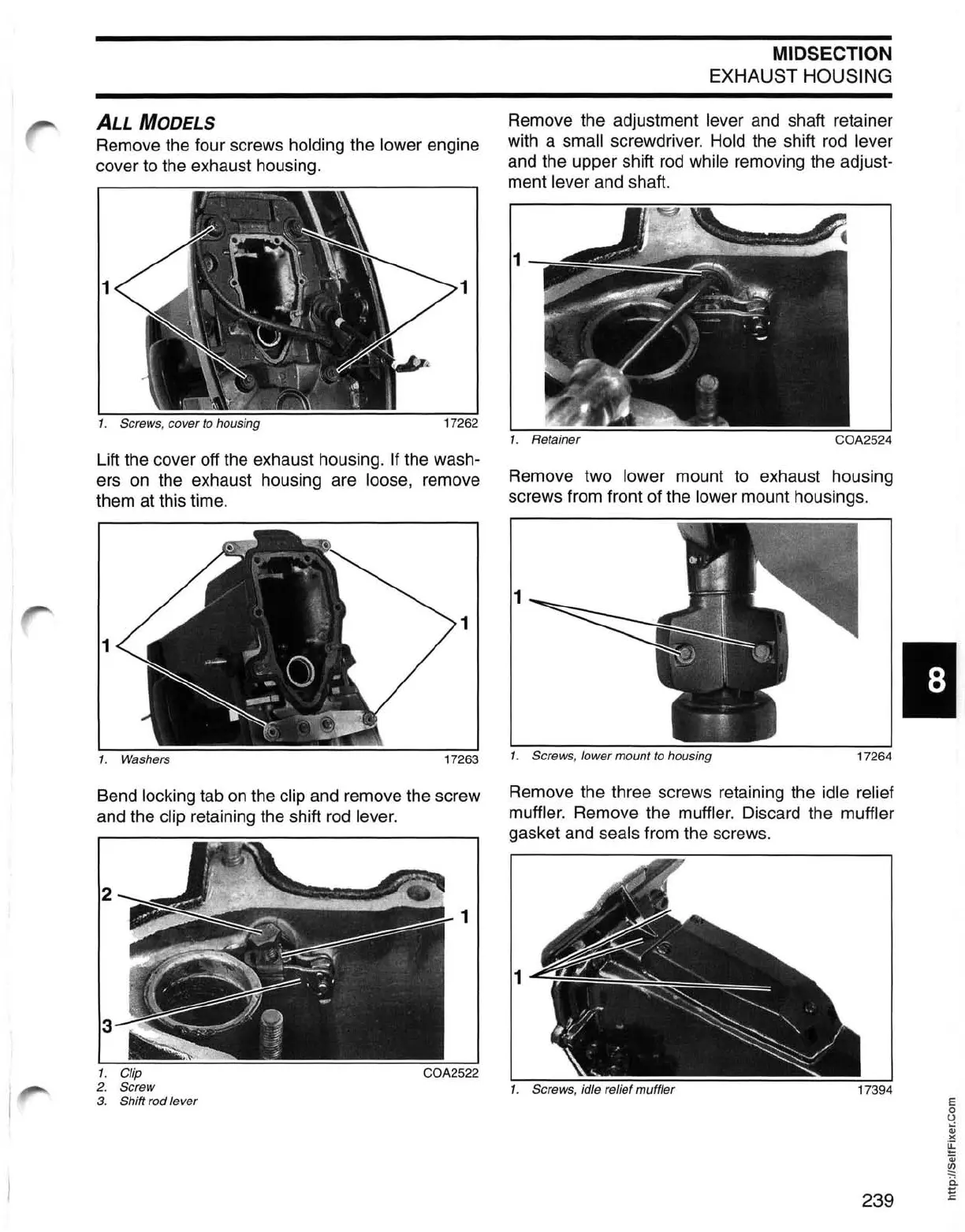

ALL MODELS
Remove the four screws holding the lower engine
cover to the exhaust housing.
1. Screws, cover
to
housing
Lift the cover off the exhaust housing.
If
the wash-
ers
on
the exhaust housing are loose, remove
them at this time.
1
1
1.
Washers 17263
Bend locking tab
on
the clip and remove the screw
and the
clip retaining the shift
rod
lever.
2
1
1. Clip COA2522
2. Screw
3. Shift rod lever
MIDSECTION
EXHAUST HOUSING
Remove the adjustment lever and shaft retainer
with a
small screwdriver. Hold the shift rod lever
and the upper shift
rod
while removing the adjust-
ment
lever and shaft.
Remove two
lower mount
to
exhaust housing
screws from front of the
lower mount housings.
1
1. Screws, lower mount
to
housing
17264
Remove the three screws retaining the idle relief
muffler.
Remove the muffler. Discard the muffler
gasket and
seals from the screws.
1
239
I
