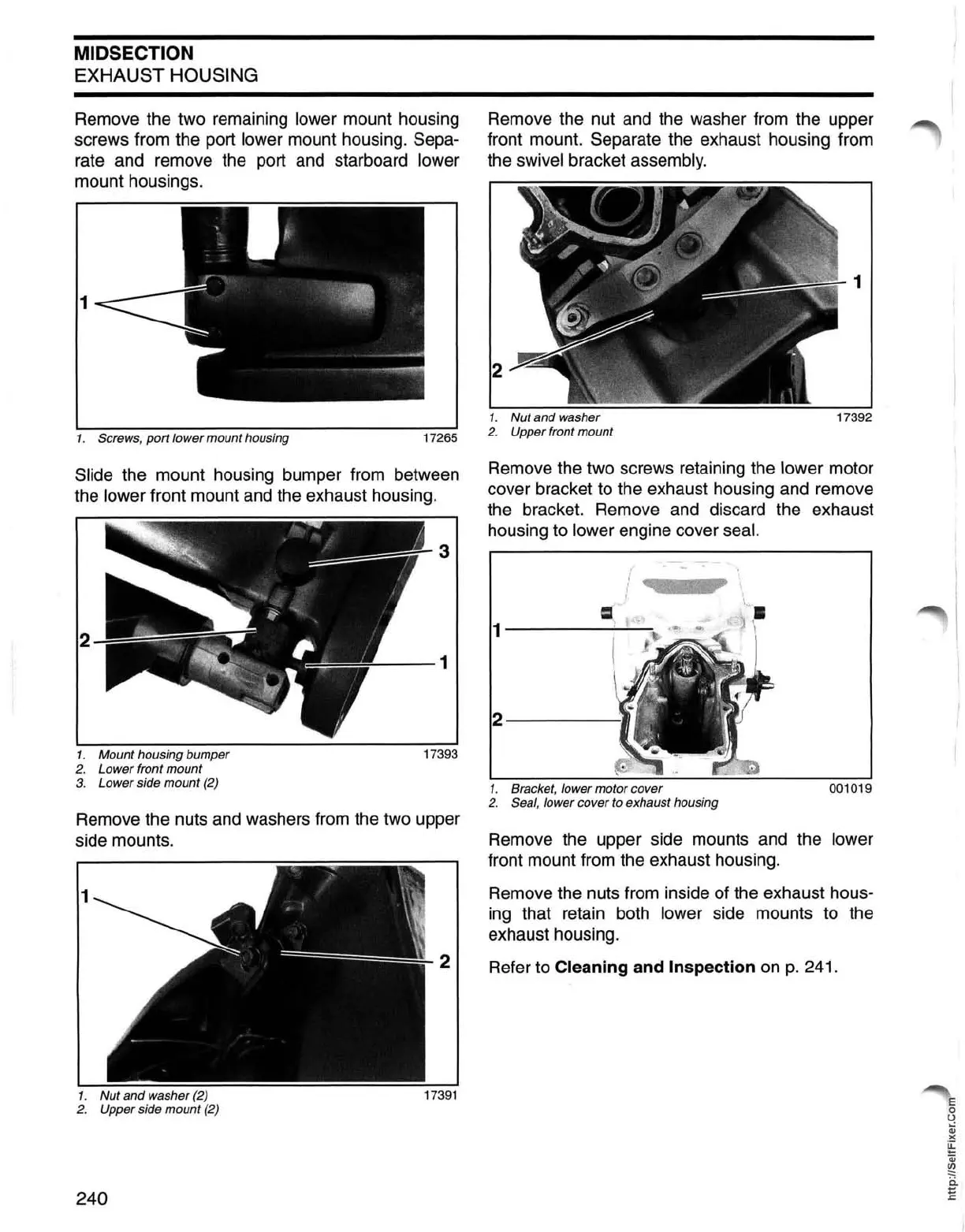

MIDSECTION
EXHAUST HOUSING
Remove the two remaining lower mount housing
screws from the port
lower mount housing. Sepa-
rate and remove the port and starboard lower
mount housings.
1
1. Screws, port lower mount housing
17265
Slide the mount housing bumper from between
the
lower front mount and the exhaust housing.
3
2
---1
1. Mount housing bumper
2. Lower front mount
3. Lower side mount (2)
Remove the nuts and washers from the two upper
side mounts.
2
1.
Nut and washer (2)
17391
2.
Upper side mount (2)
240
Remove the nut and the washer from the upper
front mount. Separate the exhaust housing from
the swivel bracket assembly.
1
1. Nut and washer 17392
2. Upper front mount
Remove the two screws retaining the lower motor
cover bracket to the exhaust housing and remove
the bracket. Remove and discard the exhaust
housing to
lower engine cover seal.
.
".
1
I,
2-----·
1/
1. Bracket, lower motor cover
-
-'-',_.
~
-
2. Seal, lower cover
to
exhaust housing
001019
Remove the upper side mounts and the lower
front mount from the exhaust housing.
Remove the nuts from inside of the exhaust hous-
ing that retain both
lower side mounts to the
exhaust housing.
Refer to
Cleaning and Inspection on
p.
241.
