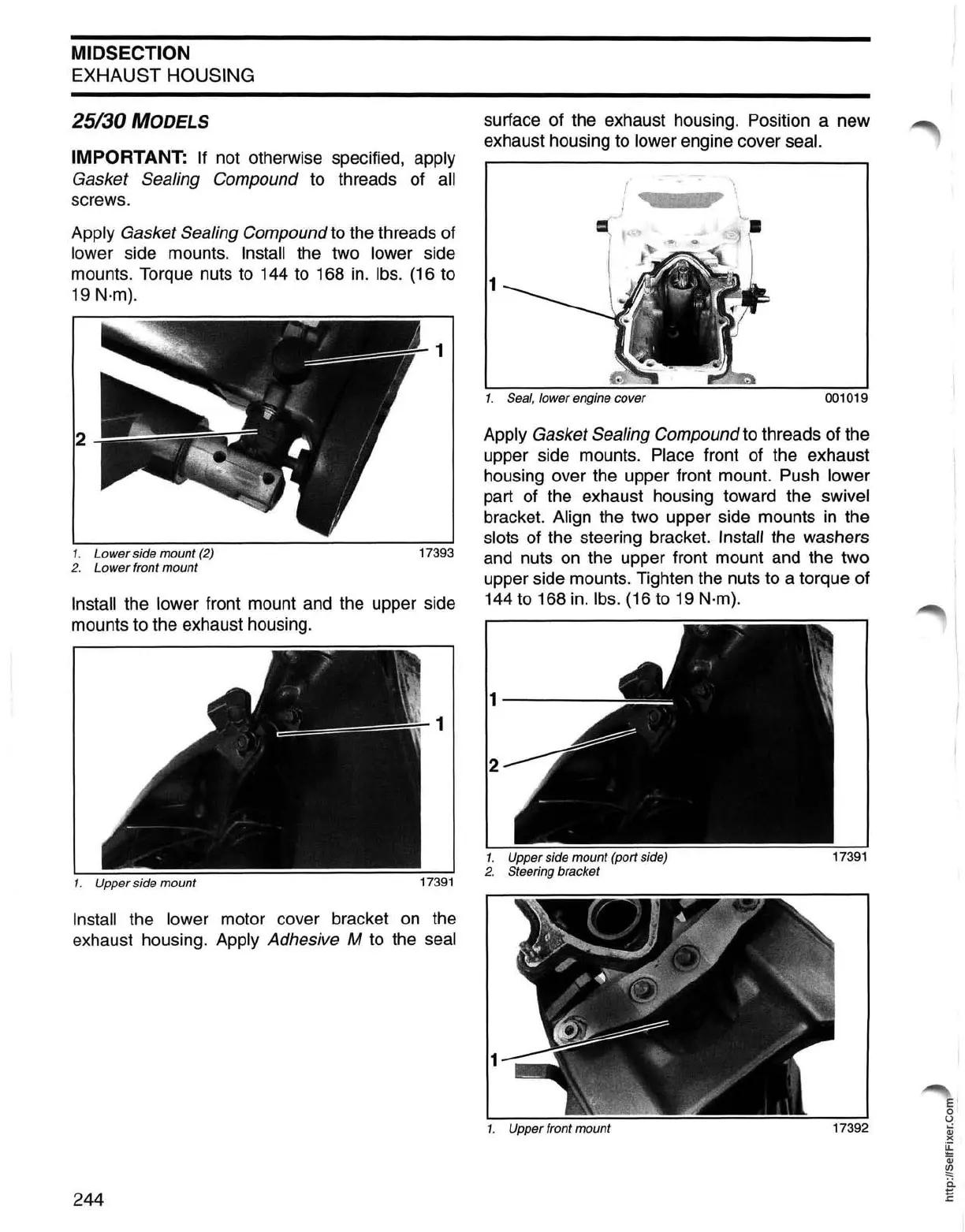

MIDSECTION
EXHAUST HOUSING
25/30 MODELS
IMPORTANT: If not otherwise specified, apply
Gasket Sealing Compound to threads of all
screws.
Apply
Gasket Sealing Compound to the threads of
lower side mounts.
Install the two lower side
mounts. Torque nuts to 144 to 168 in. Ibs. (16 to
19 N·m).
1
2
1. Lower side mount (2)
17393
2. Lower front mount
Install the lower front mount and the upper side
mounts to the exhaust housing.
1
1. Upper side mount
Install the lower motor cover bracket on the
exhaust housing. Apply
Adhesive M to the seal
244
surface of the exhaust housing. Position a new
exhaust housing to lower engine cover seal.
1
1. Seal, lower engine cover 001019
Apply Gasket Sealing Compound to threads of the
upper side mounts. Place front of the exhaust
housing over the upper front mount. Push lower
part of the exhaust housing toward the swivel
bracket. Align the two upper side mounts
in the
slots of the steering bracket.
Install the washers
and nuts
on the upper front mount and the two
upper side mounts. Tighten the nuts to a torque of
144 to 168
in. Ibs. (16 to 19 N·m).
1-----
2
1. Upper side mount (port side)
2. Steering bracket
1. Upper front mount
17392
