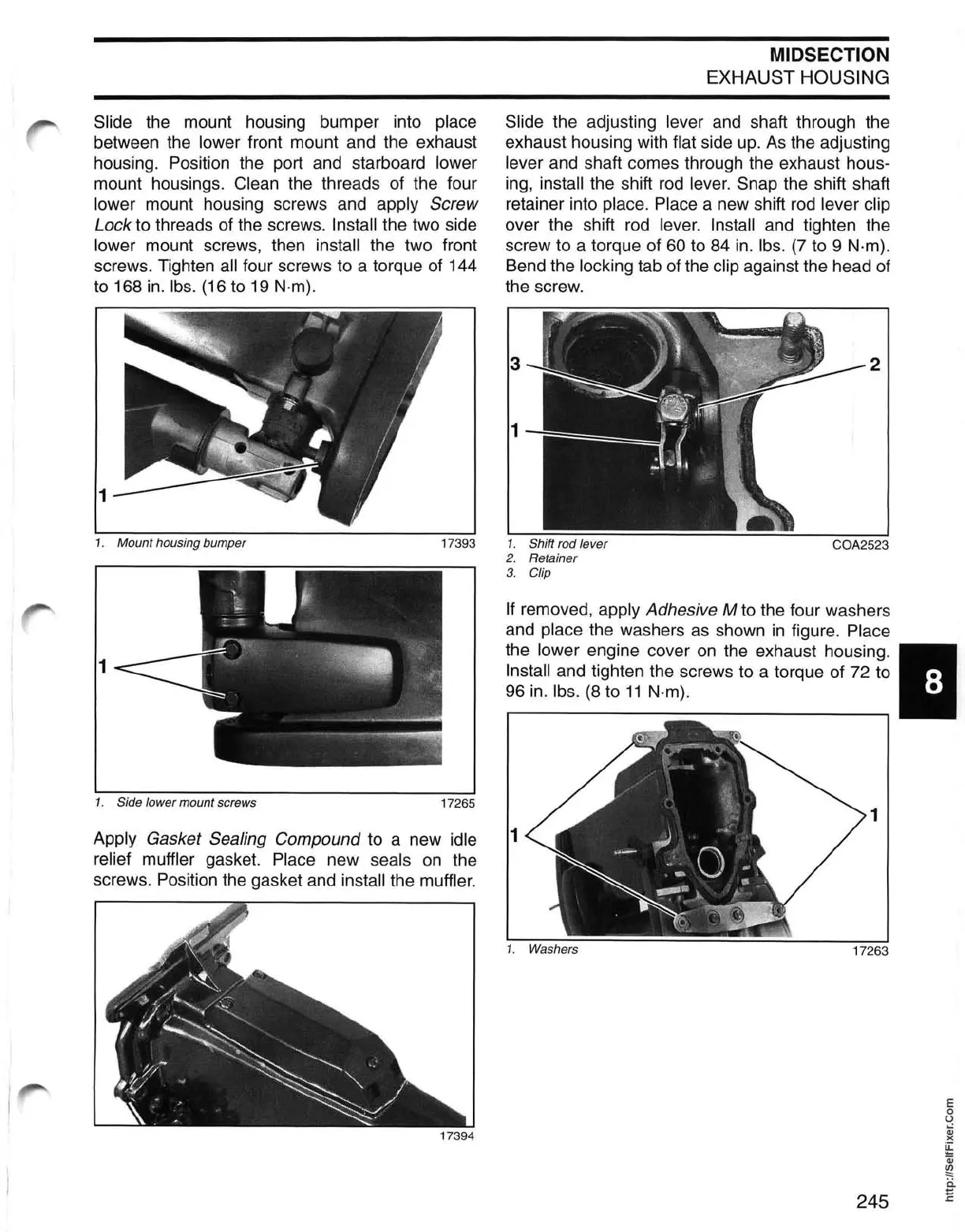

Slide the mount housing bumper into place
between the lower front mount and the exhaust
housing.
Position the port and starboard lower
mount housings. Clean the threads of the four
lower mount housing screws and apply Screw
Lock to threads of the screws.
Install the two side
lower mount screws, then install the two front
screws. Tighten all four screws to a torque of 144
to 168
in.
Ibs.
(16
to
19
N·m).
1
1. Mount housing bumper
17393
1
1. Side lower mount screws
17265
MIDSECTION
EXHAUST HOUSING
Slide the adjusting lever and shaft through the
exhaust housing with flat side
up.
As
the adjusting
lever and shaft comes through the exhaust hous-
ing, install the shift
rod
lever. Snap the shift shaft
retainer into place.
Place a new shift
rod
lever clip
over the shift
rod
lever. Install and tighten the
screw to a torque of
60
to 84
in
.
Ibs.
(7
to 9 N·m).
Bend the locking tab of the clip against the head of
the screw.
3
2
1
1. Shift rod lever
COA2523
2.
Retainer
3.
Clip
If removed, apply Adhesive M to the four washers
and place the washers as shown
in
figure. Place
the lower engine cover
on
the exhaust housing. 8
Install and tighten the screws to a torque of 72 to
96
in.
Ibs.
(8
to
11
N·m).
1
Apply Gasket Sealing Compound to a new idle 1
relief muffler gasket. Place new seals
on
the
screws.
Position the gasket and install the muffler.
17263
17394
