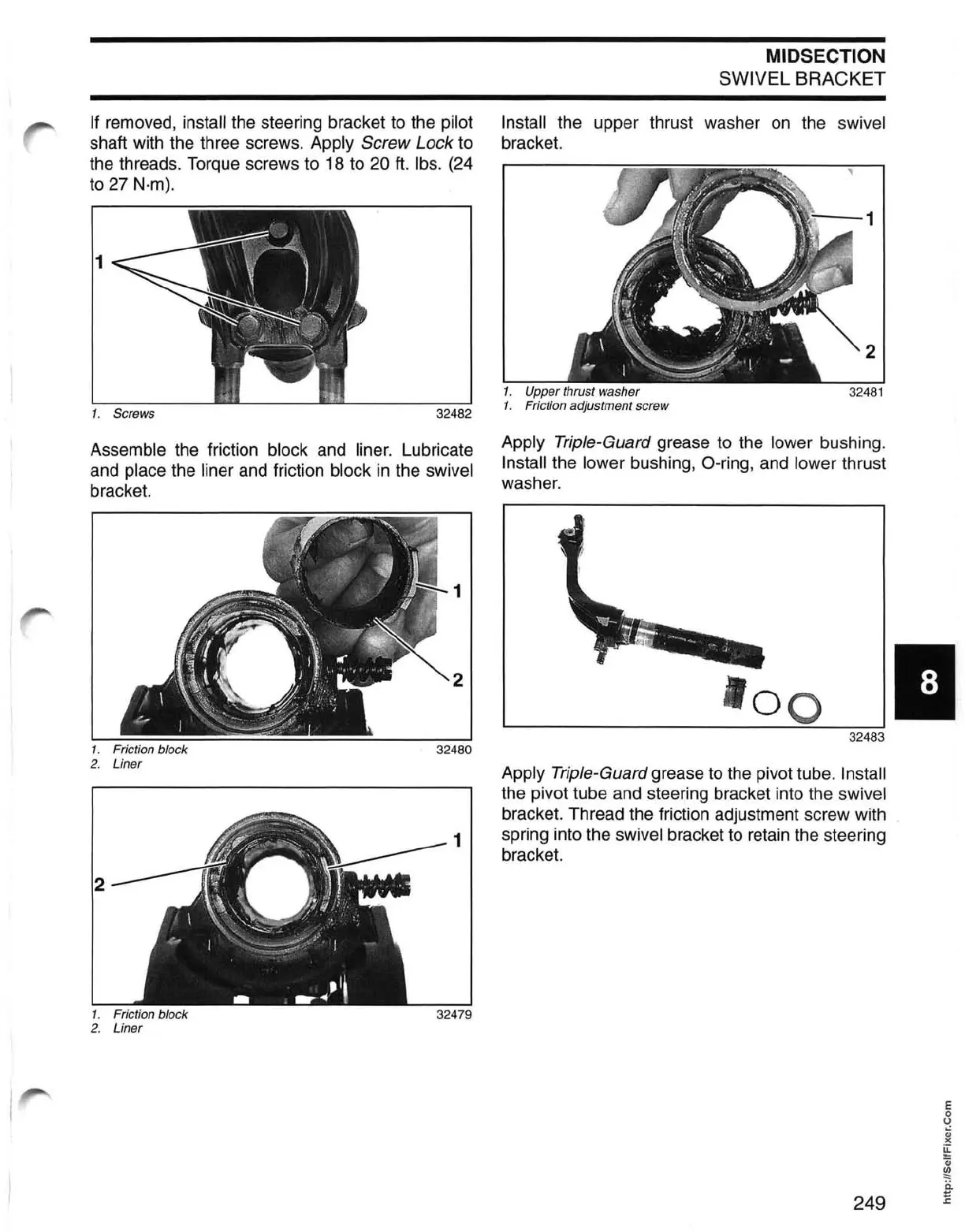

If
removed, install the steering bracket to the pilot
shaft with the three screws. Apply Screw Lock to
the threads. Torque screws to 18 to
20 ft.
Ibs.
(24
to 27
N·m).
1. Screws 32482
Assemble the friction block and liner. Lubricate
and
place the liner and friction block
in
the swivel
bracket.
1.
2.
1. Friction block
2. Liner
1
2
1
32479
MIDSECTION
SWIVEL
BRACKET
Install the upper thrust washer
on
the swivel
bracket.
1. Upper thrust washer
32481
1. Friction adjustment screw
Apply Triple-Guard grease to the lower bushing.
Install the lower bushing, Q-ring, and lower thrust
washer.
0 0
32483
Apply Triple-Guard grease to the pivot tube. Install
the pivot tube and steering bracket into the swivel
bracket. Thread the friction adjustment screw with
spring into the
swivel bracket to retain the steering
bracket.
I
E
o
o
~
><
~
OJ
~
c.
249 E
