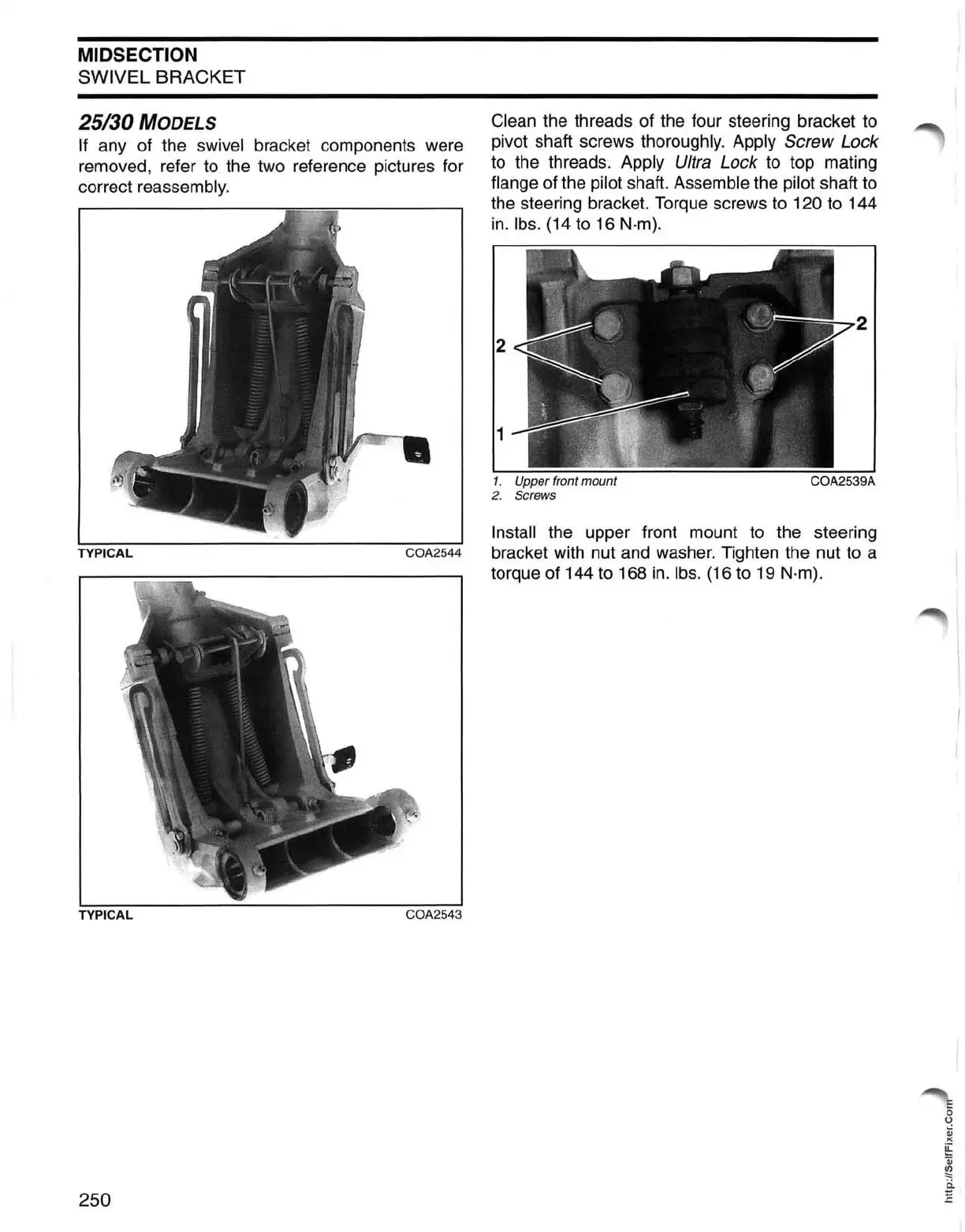

MIDSECTION
SWIVEL BRACKET
25/30
MODELS
If
any of the swivel bracket components were
removed, refer to the two reference pictures for
correct
reassembly.
COA2544
TYPICAL
COA2543
250
Clean the threads of the four steering bracket to
pivot shaft screws
thoroughly. Apply Screw Lock
to the threads. Apply Ultra Lock to top mating
flange of the pilot shaft. Assemble the pilot shaft to
the steering bracket. Torque screws to
120 to 144
in.
Ibs.
(14 to 16 N·m).
Install
the upper front mount to the steering
bracket with nut and washer. Tighten the nut to a
torque of 144 to 168
in.
Ibs.
(16
to 19 N·m).
E
o
o
~
><
~
Qj
~
i:i
E
