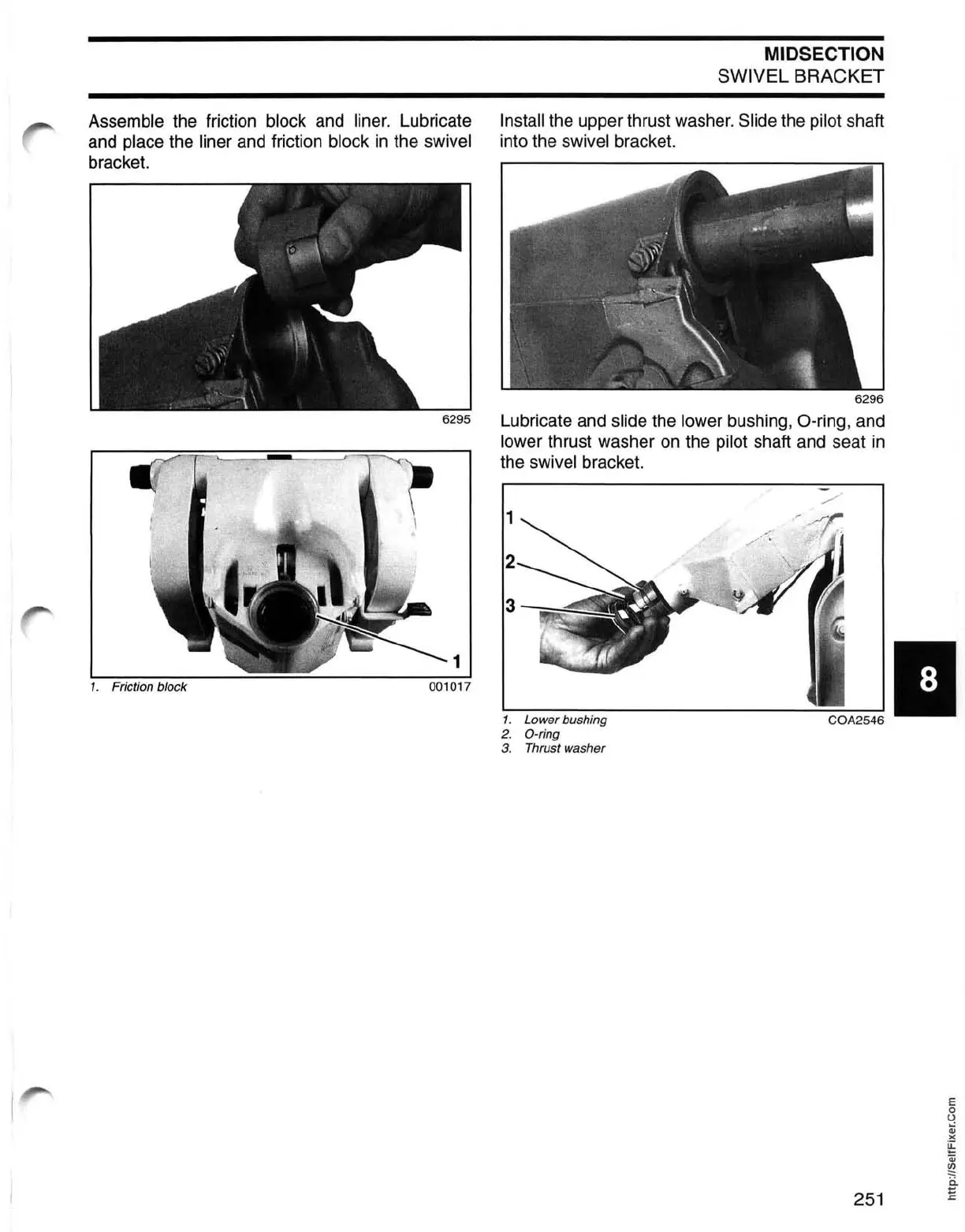

Assemble the friction block and liner. Lubricate
and place the liner and friction block
in
the swivel
bracket.
1
1.
Friction
block
001017
MIDSECTION
SWIVEL BRACKET
Install the upper thrust washer. Slide the pilot shaft
into the swivel bracket.
6296
Lubricate and slide the lower bushing, O-ring, and
lower thrust washer
on
the pilot shaft and seat
in
the swivel bracket.
3
---..::!!
~1
.
--Lo-w-e-rb-u-sh-m-g--------------------~C=a~A-2-54~6
IIIiII
2. a -
ring
3.
Thrust
washer
E
o
o
iii
><
~
Qj
~
i::i.
251
~
