Johnson J30MLSRC User Manual

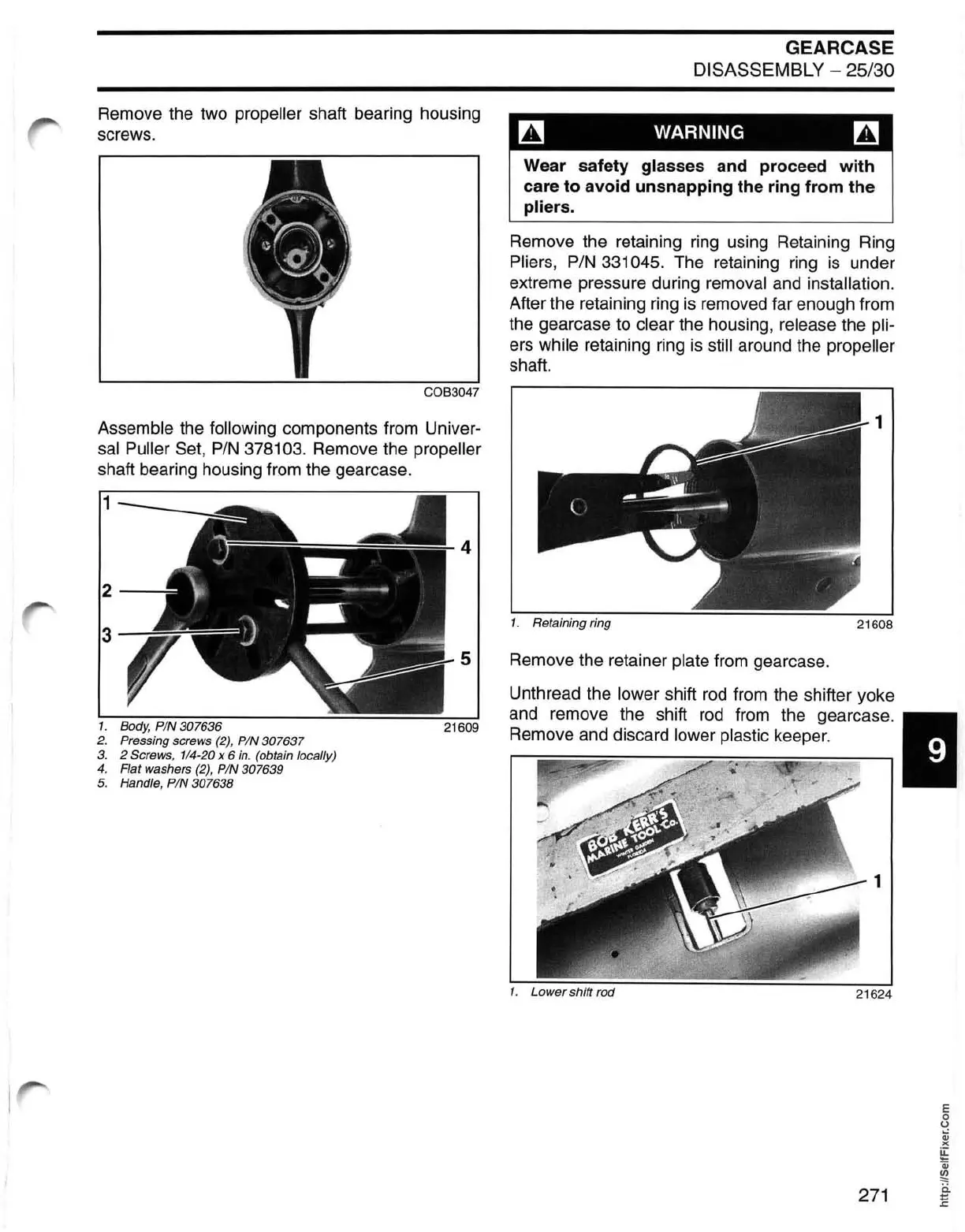

Remove the two propeller shaft bearing housing
screws.
COB3047
Assemble the following components from Univer-
sal Puller Set, PIN 378103. Remove the propeller
shaft bearing housing from the gearcase.
4
GEAR CASE
DISASSEMBLY - 25/30
m WARNING m
Wear safety glasses and proceed with
care to avoid unsnapping the ring from the
pliers.
Remove the retaining ring using Retaining Ring
Pliers, PIN 331045. The retaining ring is under
extreme pressure during
removal and installation.
After the retaining ring is removed far enough from
the gearcase to
clear the housing, release the pli-
ers while retaining ring is still around the propeller
shaft.
1
1. Retaining ring
21608
5 Remove the retainer plate from gearcase.
1. Body, PIN 307636
21609
2. Pressing screws (2), PIN 307637
3. 2 Screws, 11 4-20 x 6 in. (obtain locally)
4. Flat washers
(2), PIN 307639
5. Handle, PIN 307638
Unthread the lower shift rod from the shifter yoke
Remove and discard lower plastic keeper, I
and remove the Shi .ft rod from the gearcase' l
1
21624
271
E
o
o
..:
OJ
)(
~
Qj
<II
::::
ii
t:
.t::
