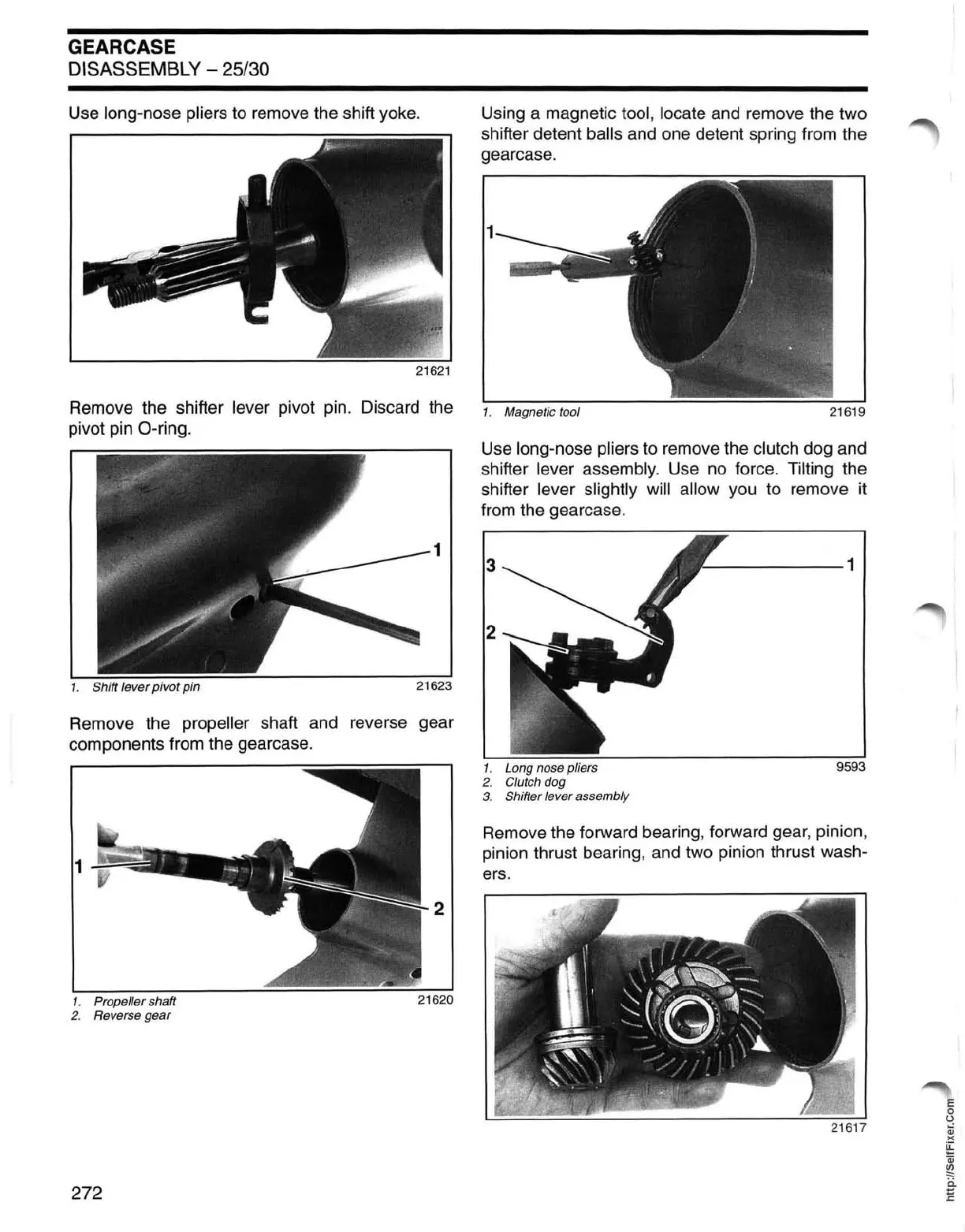

GEARCASE
DISASSEMBLY - 25/30
Use long-nose pliers to remove the shift yoke.
Remove the shifter
lever pivot pin. Discard the
pivot pin O-ring.
1. Shift lever pivot pin
Remove the propeller shaft and reverse gear
components from the gearcase.
1. Propeller shaft
2. Reverse
gear
272
Using a magnetic tool, locate and remove the two
shifter detent
balls and one detent spring from the
gearcase.
1. Magnetic tool 21619
Use long-nose pliers to remove the clutch dog and
shifter
lever assembly. Use no force. Tilting the
shifter
lever slightly will allow you to remove it
from the gearcase.
3
------1
2
1. Long nose pliers
9593
2. Clutch dog
3. Shifter lever assembly
Remove the forward bearing, forward gear, pinion,
pinion thrust bearing, and two pinion thrust wash-
ers.
