MANUAL
STARTER
ASSEMBLY

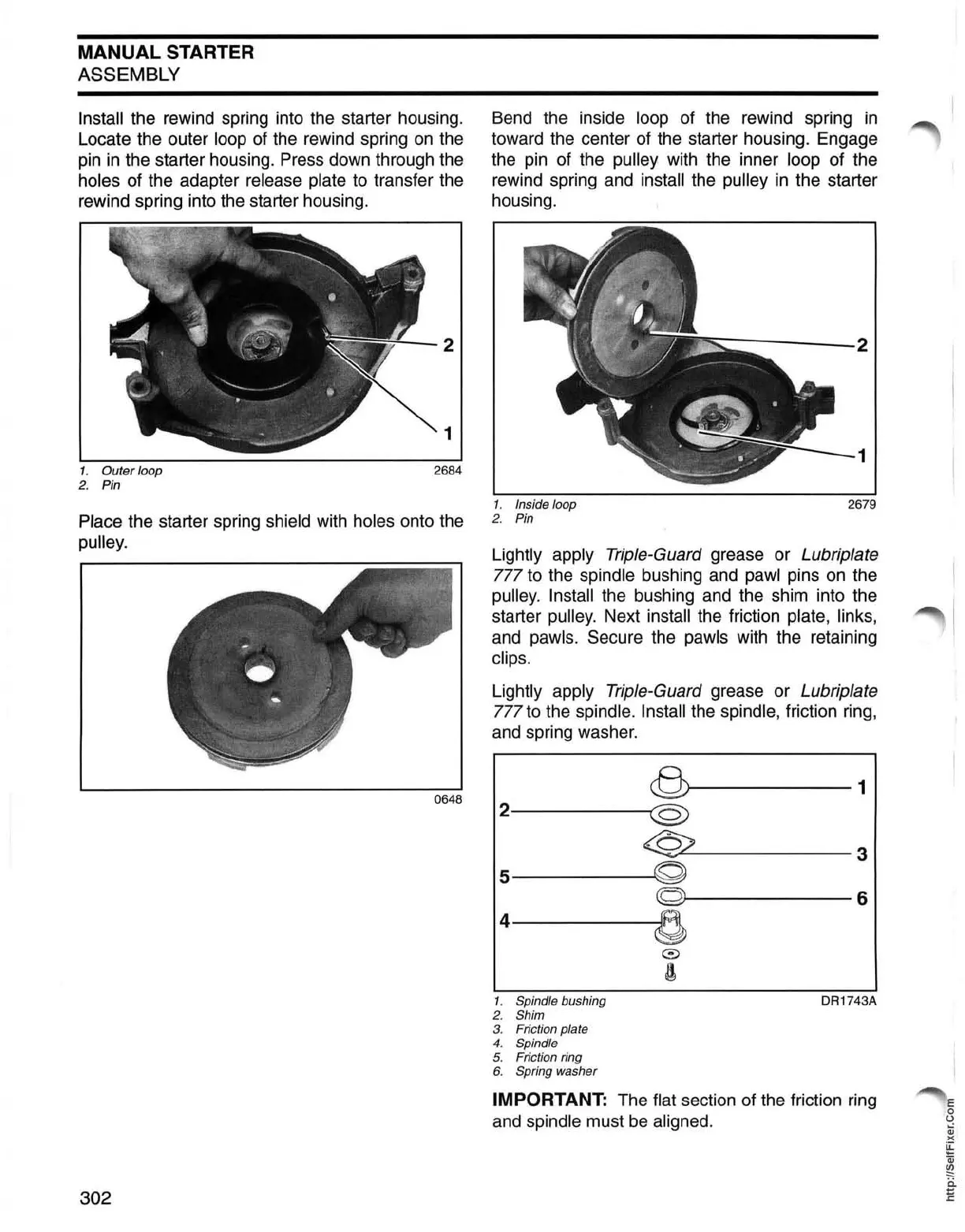

Install the rewind spring into the starter housing.
Locate the outer
loop of the rewind spring
on
the
pin
in
the starter housing. Press down through the
holes of the adapter release plate to transfer the
rewind spring into the starter housing.
2
1
1.
Outer
loop
2684
2. Pin
Place the starter spring shield with holes onto the
pulley.
0648
302
Bend the inside loop of the rewind spring
in
toward the center of the starter housing. Engage
the pin of the
pulley with the inner loop of the
rewind spring and
install the pulley
in
the starter
housing.
~
::------2
1
1. Inside loop
2679
2. Pin
Lightly apply Trip/e-Guard grease or Lubrip/ate
777 to the spindle bushing and pawl pins on the
pulley.
Install the bushing and the shim into the
starter pulley. Next install the friction
plate, links,
and pawls. Secure the pawls with the retaining
clips.
Lightly apply
Trip/e-Guard grease or Lubrip/ate
777 to the spindle. Install the spindle, friction ring,
and spring washer.
~
f---1
2-----
C§)
~-----3
5--------'
~
(Q
i--------6
4---
t)
(.8.)
3
1. Spindle bushing
DR1743A
2.
Shim
3. Friction plate
4. Spindle
5.
Friction ring
6.
Spring washer
IMPORTANT: The flat section of the friction ring
and
spindle must
be
aligned.
