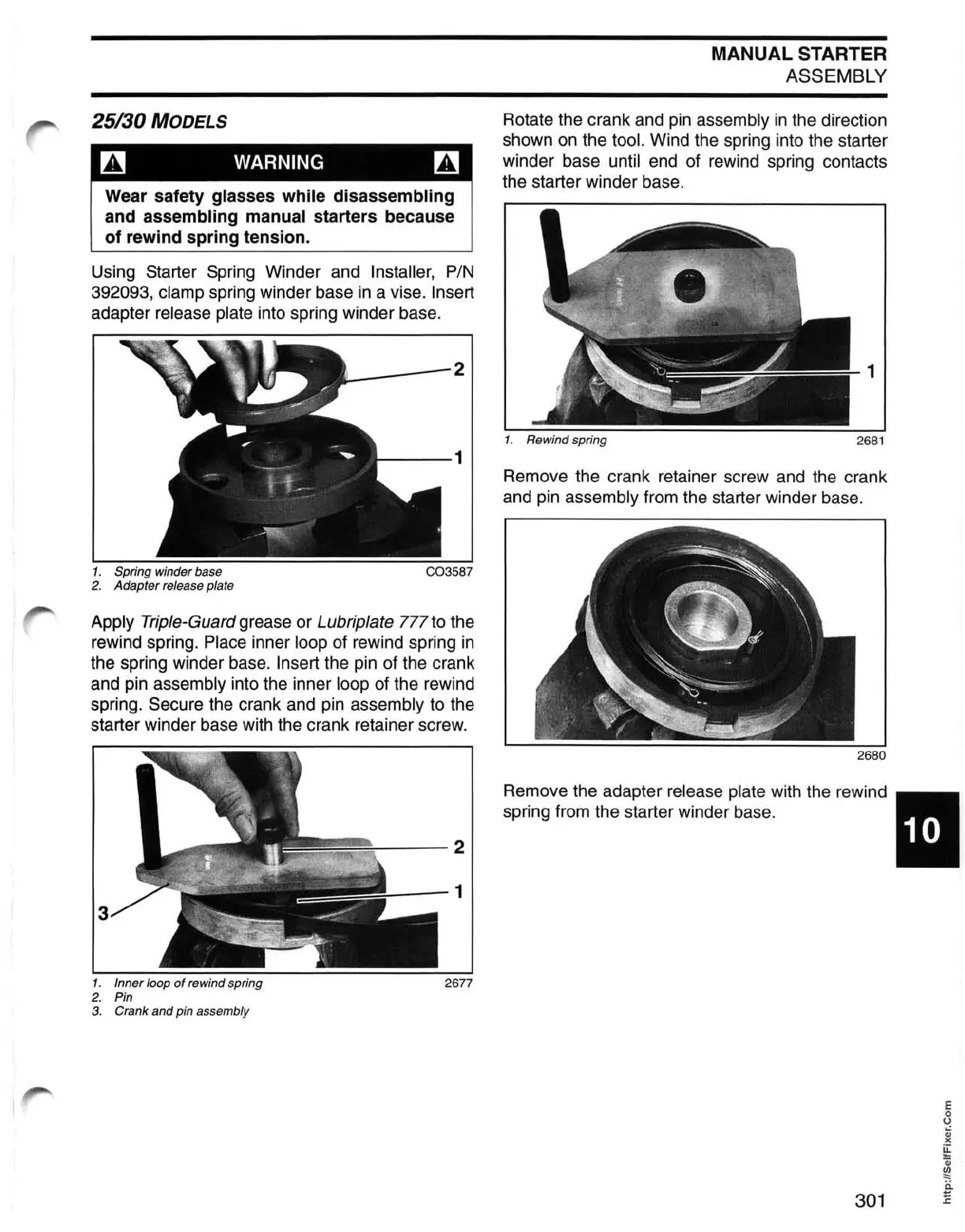

Johnson J30MLSRC User Manual

25/30 MODELS
~ WARNING ~
Wear safety glasses while disassembling
and assembling manual starters because
of rewind spring tension.
Using Starter Spring Winder and Installer, PIN
392093, clamp spring winder base in a vise. Insert
adapter release plate into spring winder base.
L- _--2
----1
1. Spring winder base C03587
2. Adapter release plate
Apply Triple-Guard grease or Lubriplate 777 to the
rewind spring.
Place inner loop of rewind spring in
the spring winder base. Insert the pin of the crank
and pin assembly into the inner loop of the rewind
spring. Secure the crank and pin assembly to the
starter winder base with the crank retainer screw.
~~ --2
:...---1
3
1. Inner loop of rewind spring
2677
2. Pin
3. Crank and pin assembly
MANUAL STARTER
ASSEMBLY
Rotate the crank and pin assembly in the direction
shown
on the tool. Wind the spring into the starter
winder base until end of rewind spring contacts
the starter winder base.
Remove the crank retainer screw and the crank
and pin assembly from the starter winder base.
2680
Remove the adapter release plate with the rewind III
spring from the starter winder base.
I
E
o
o
~
><
~
OJ
~
c.
301 E
