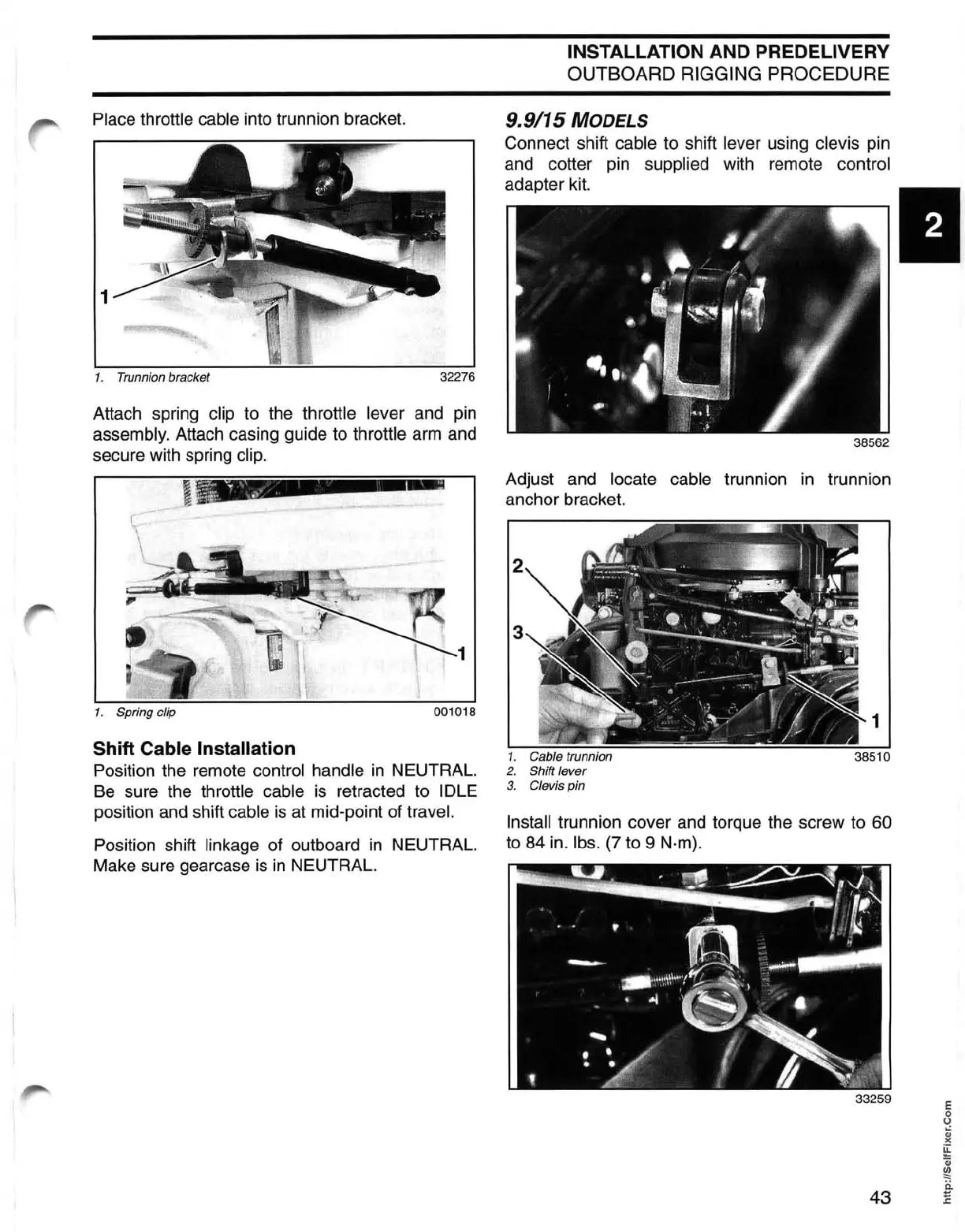

Place throttle cable into trunnion bracket.
1. Trunnion bracket
32276
Attach spring clip
to
the throttle lever and
pin
assembly. Attach casing guide
to
throttle
arm
and
secure with spring clip.
1. Spring clip
001018
Shift Cable Installation
Position the remote control handle
in
NEUTRAL.
Be
sure the throttle cable
is
retracted to IDLE
position and shift cable
is
at mid-point of travel.
Position shift linkage of outboard
in
NEUTRAL.
Make sure gearcase
is
in
NEUTRAL.
INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING PROCEDURE
9.9/15
MODELS
Connect shift cable
to
shift lever using clevis pin
and cotter
pin
supplied with remote control
adapter
kit.
38562
Adjust and locate cable trunnion
in
trunnion
anchor bracket.
1
1. Cable trunnion
38510
2. Shift lever
3. Clevis pin
Install trunnion cover and torque the screw to 60
to
84
in
.
Ibs.
(7
to 9 N·m).
33259
43
•
