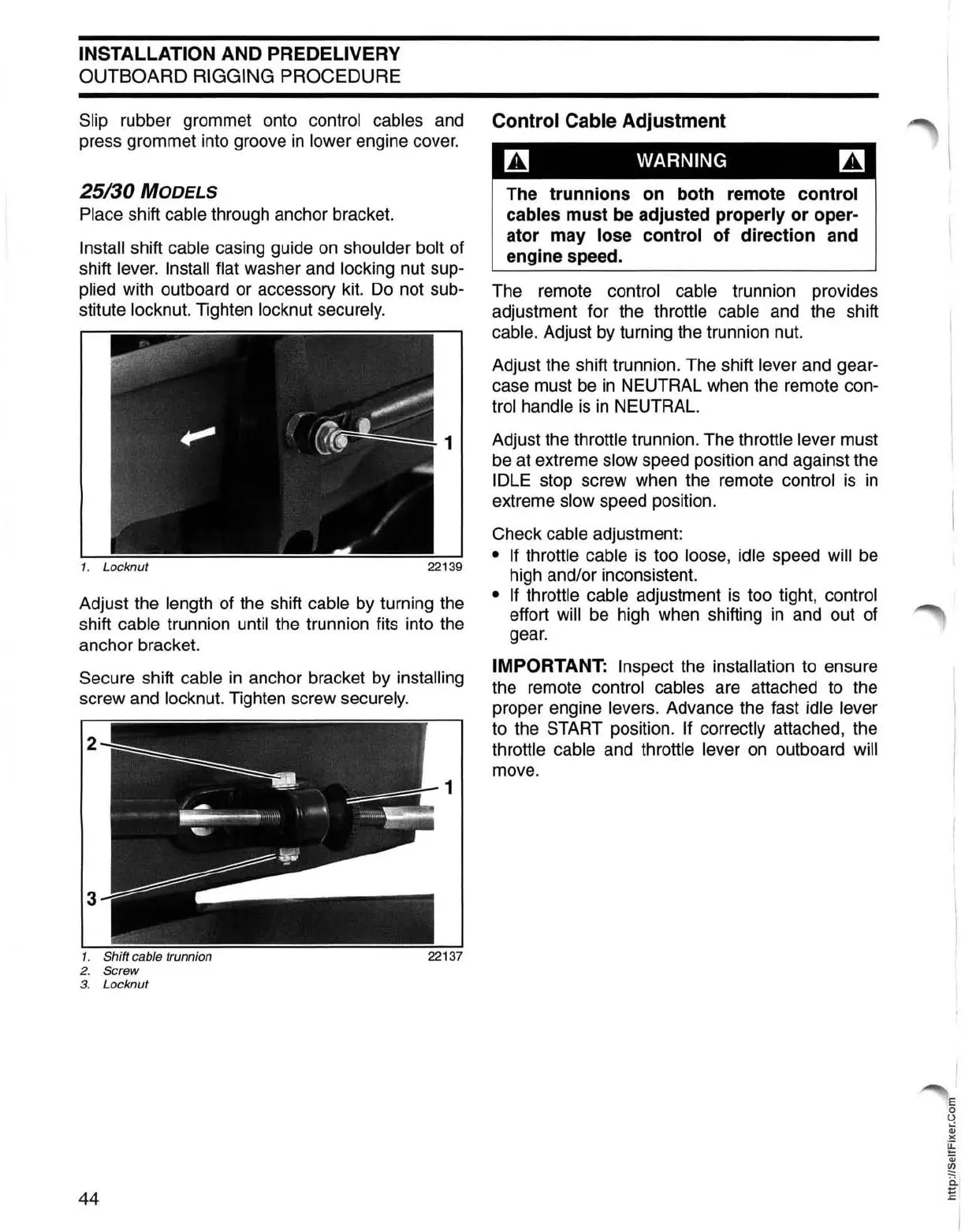

INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING PROCEDURE
Slip rubber grommet onto control cables
and
press grommet into groove
in
lower engine cover.
25/30
MODELS
Place shift cable through anchor bracket.
Install shift cable casing guide
on
shoulder bolt of
shift lever.
Install flat washer
and
locking nut sup-
plied with outboard or accessory kit.
Do
not sub-
stitute locknut. Tighten locknut securely.
1. Locknut 22139
Adjust the length of the shift cable by turning the
shift cable trunnion until the trunnion fits into the
anchor bracket.
Secure shift cable
in
anchor bracket by installing
screw and locknut. Tighten screw securely.
1.
Shift cable trunnion
22137
2. Screw
3.
Locknut
44
Control Cable Adjustment
~
WARNING
~
The
trunnions
on both remote
control
cables
must
be adjusted properly
or
oper-
ator may lose control
of
direction
and
engine speed.
The remote control cable trunnion provides
adjustment for the throttle cable and the shift
cable. Adjust by turning the trunnion nut.
Adjust the shift trunnion. The shift lever and gear-
case must be
in
NEUTRAL when the remote con-
trol handle
is
in
NEUTRAL.
Adjust the throttle trunnion. The throttle lever must
be
at extreme slow speed position and against the
IDLE stop screw when the remote control
is
in
extreme slow speed position.
Check cable adjustment:
•
If
throttle cable
is
too loose, idle speed will
be
high and/or inconsistent.
•
If
throttle cable adjustment
is
too tight, control
effort
will
be
high when shifting
in
and out of
gear.
IMPORTANT: Inspect the installation to ensure
the remote control cables are attached to the
proper engine levers. Advance the fast idle lever
to the START position.
If
correctly attached, the
throttle cable and throttle lever
on
outboard will
move.
