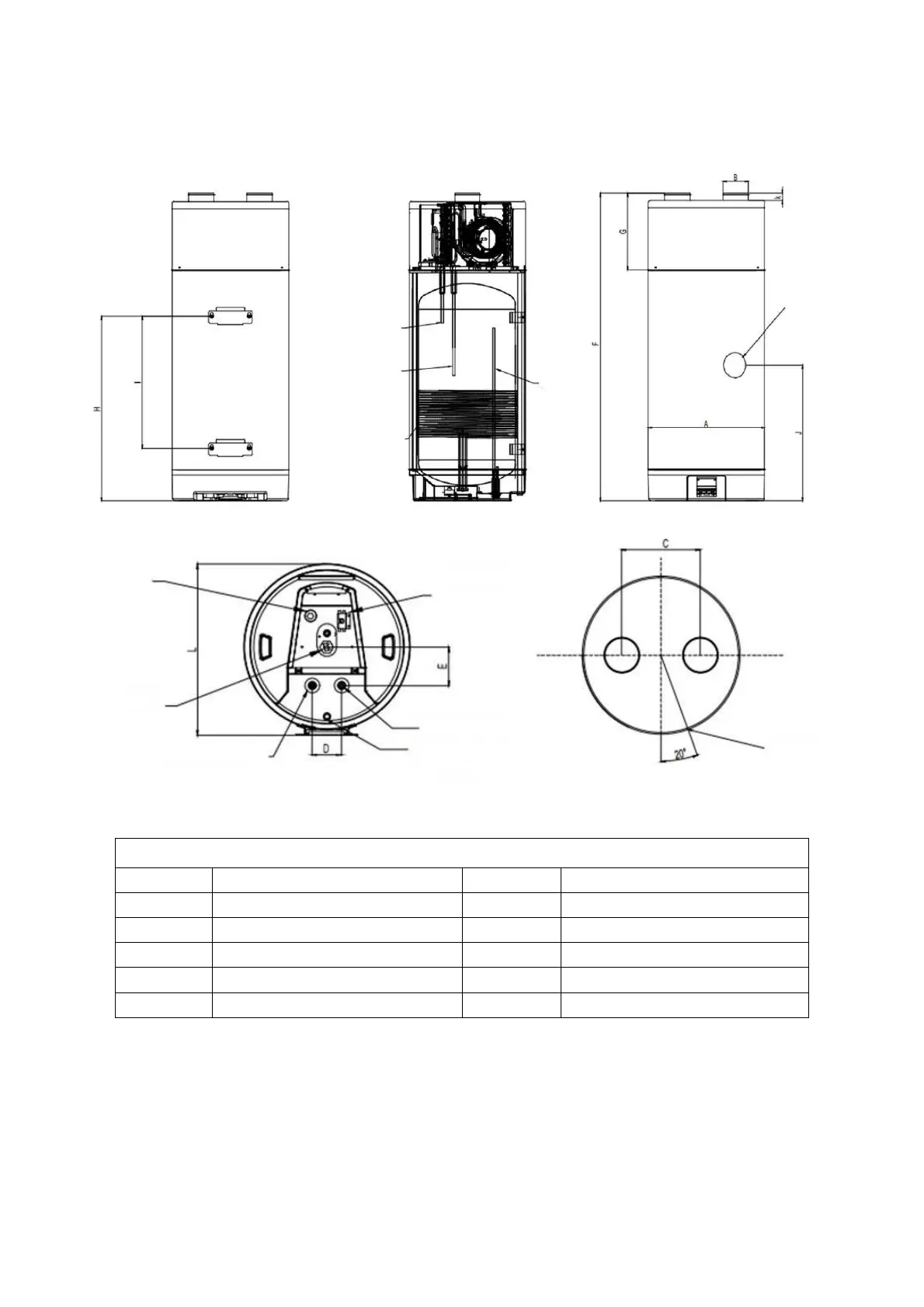

Johnson MANANTIAL Series User Manual

Model: MANANTIAL150M
MANANTIAL150M
A
Φ
520
G
365
B
Φ
122
H
885
C
280
I
635
D
100
J
660
E
130
K
35
F
1475
L
580
Remark:
1) The extra heat source is optional.
2) The Magnesium stick is an anti-corrosion element. It is assembled in the water tank
to avoid the creation of fur around the inside tank and to protect the tank, and other
components. It can help to extend the life-span of the tank. Check the magnesium
upper tank
temp sensor
external
aluminum
pipe
water
outlet
lower tank
temp sensor
electronic
anode
magnesium
e-heater
water outlet G1/2"
85º manual
reset protector
water inlet G1/2"
condensed water
outlet G1/2"
electronic
anode
10
V.1
