15
CHAPTER 5:TROUBLESHOOTING

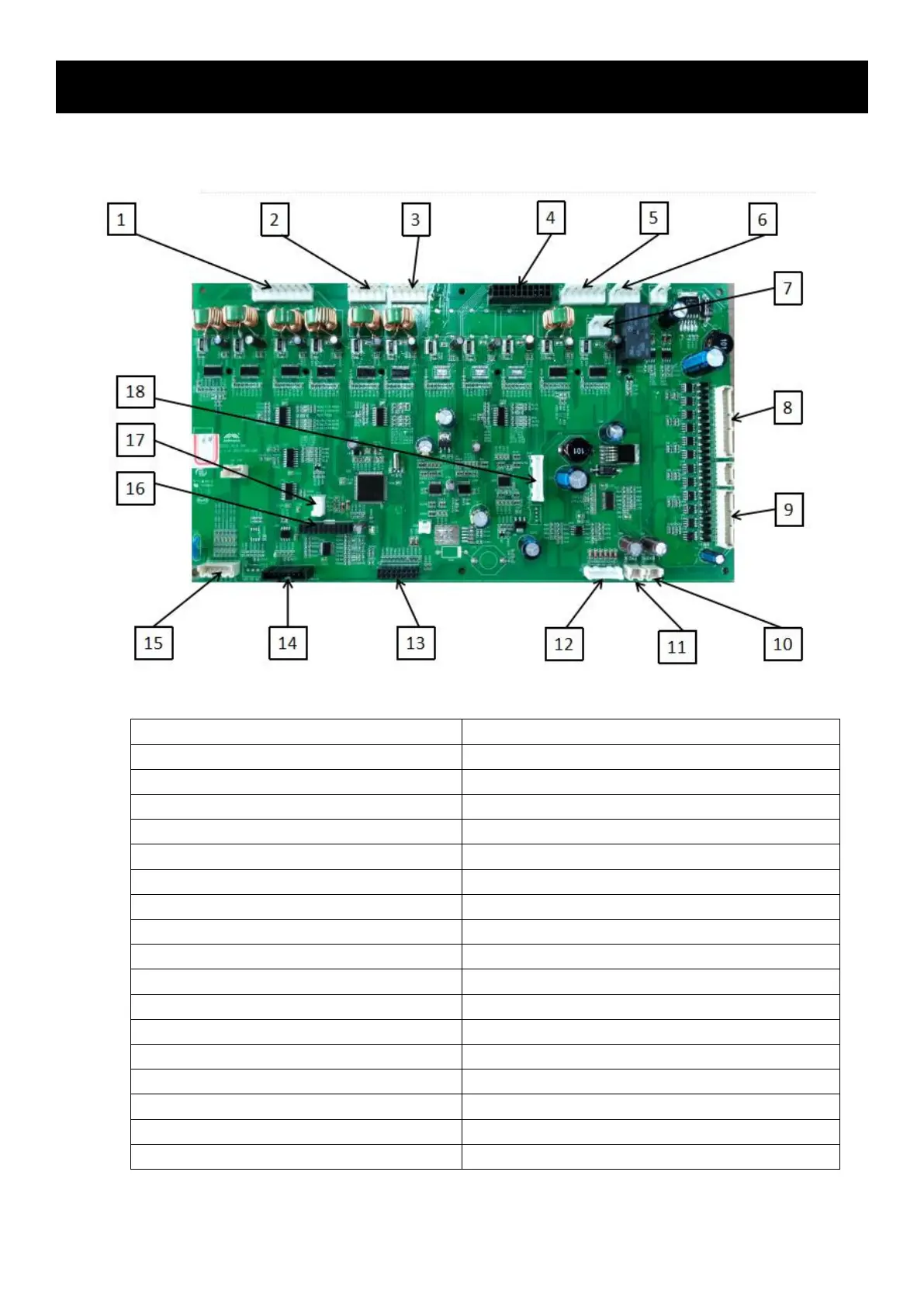

Wiring Schematic
1
Machine Core Motor
2
Back chair motor
3
Foot motor
4
Foot heat
5
Power
6
Back chair heat
7
Air pump
8
12 ways air valve
9
5 ways air valve
10
Right speaker
11
Left speaker
12
Audio sub
13
Bluetooth board
14
Remote controller
15
Armrest buttons
16
Engineering test
17
Software input
18
Machine core signal
