CHAPTER 6:PARTS REPLACEMENT

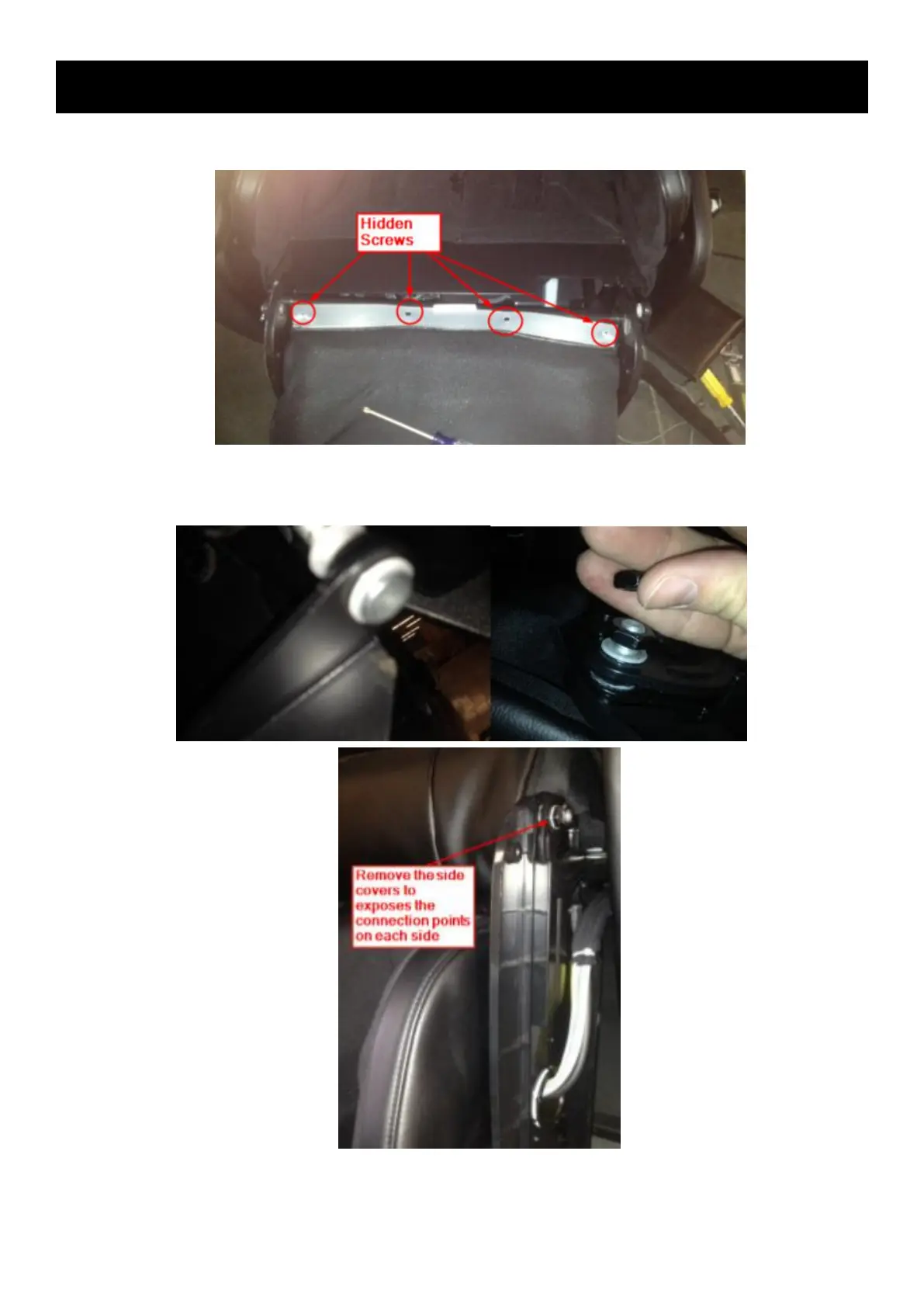

To remove the screws:
4) Remove the plastic side covers on each side of the leg-rest to access the connection
points.The connection points will need to be removed with a wrench on the right side, and channel
lock pliers on the left.The left side is connected with a pin that needs to be pulled.
5) Once these connections are undone the footrest can be removed(1000383038).To install
the new footrest follows the steps in reverse, you may need to harvest some parts from the old
footrest assembly for the new foot rest (plastic trim, screws, etc).
