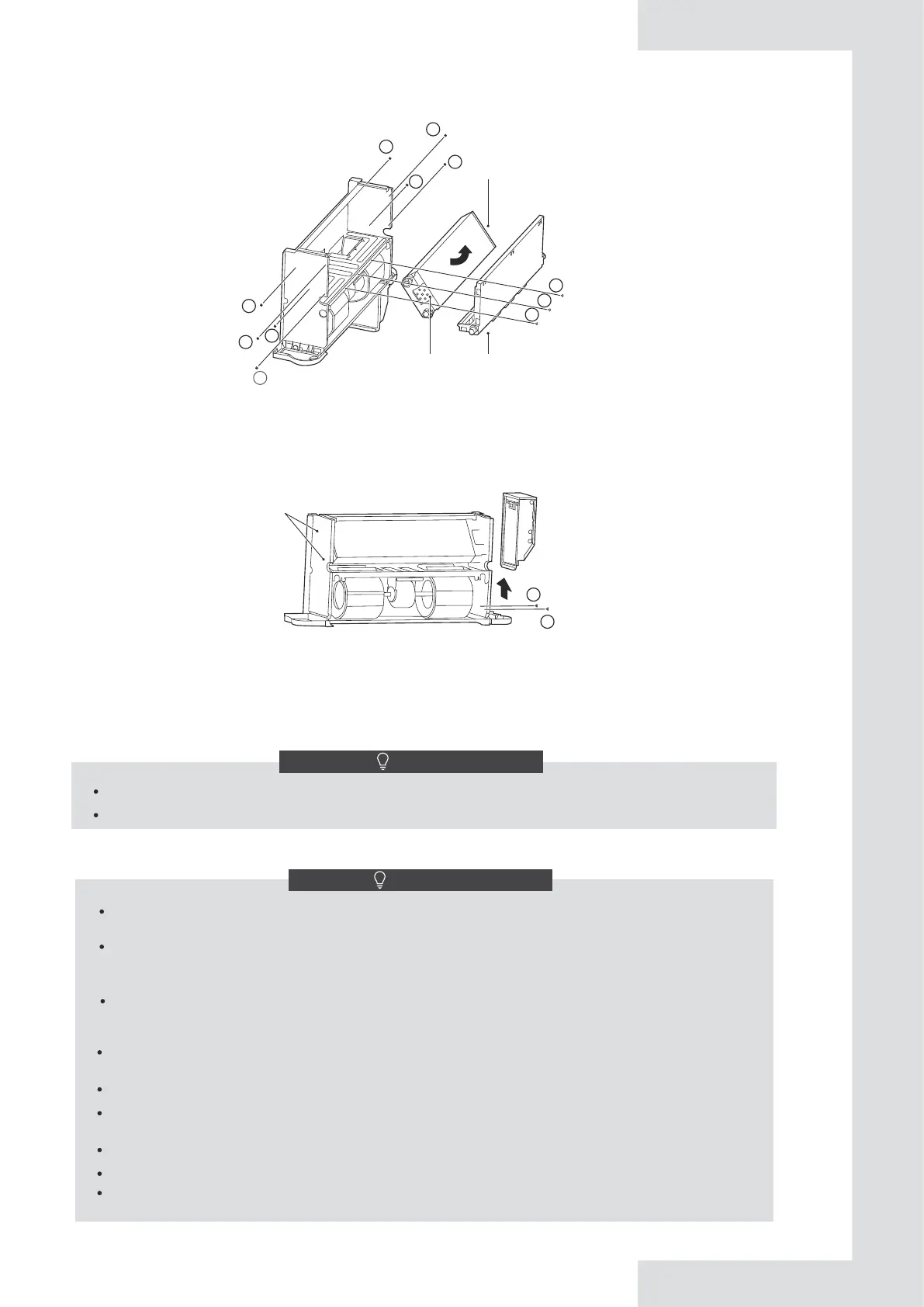

Figure 5-18
Figure 5-19 Removing the electric control box and
blocking the diamond-shaped holes
5) Anti-freezing
The water in the unit may freeze when the unit is left unused in winter.
Drain the water system when appropriate if it is not used over a long period. Or you can simply add some antifreeze in water.
NOTE
Mixing water with glycol will affect the unit performance.
Please pay attention to the safety instructions attached to the glycol container.
1
1
Electric
control
box
Diamond-shaped holes
blocked with sponge
2
2
2
2
1
1
1
1
1
1
1
Heat
exchanger
Temperature
sensor plug
Drain pan
5.5 Electrical Connection
NOTE
Make sure that the power supply falls with 220-240V~1ph 50Hz/60Hz and is able to provide enough wattage for the
unit. The power supply system must comply with the current national safety regulations.
The electrical connection must be completed by qualified professionals and must comply with local laws and
regulations. The company is not responsible for personal or property damage resulting from any incorrect electrical
connections.
Provide dedicated and suitable leakage protection device for the unit, with a minimum distance of 3 mm among the
wiring contacts. The unit must be grounded reliably.
Make sure that the power cord has a large-enough cross section to withstand the maximum current required. Never
use a damaged cable.
Perform electrical connections according to the wiring nameplate (Figure 5-20) of the unit.
Secure the cable using clamps in the electric control box to ensure the safety of the power supply cable and the
connection cable.
Do not pull, step on or squeeze the cable. Do not use nails or staples to secure the power cord.
You need to pass the cable through the knockout hole at the foundation.
For this stationary appliance it is required to have for disconnection of mains supply and all-pole switch with a
contact opening of at least 3mm in the fixed wiring.
