6.2 Load balancing connection (CT-BOX Optional)

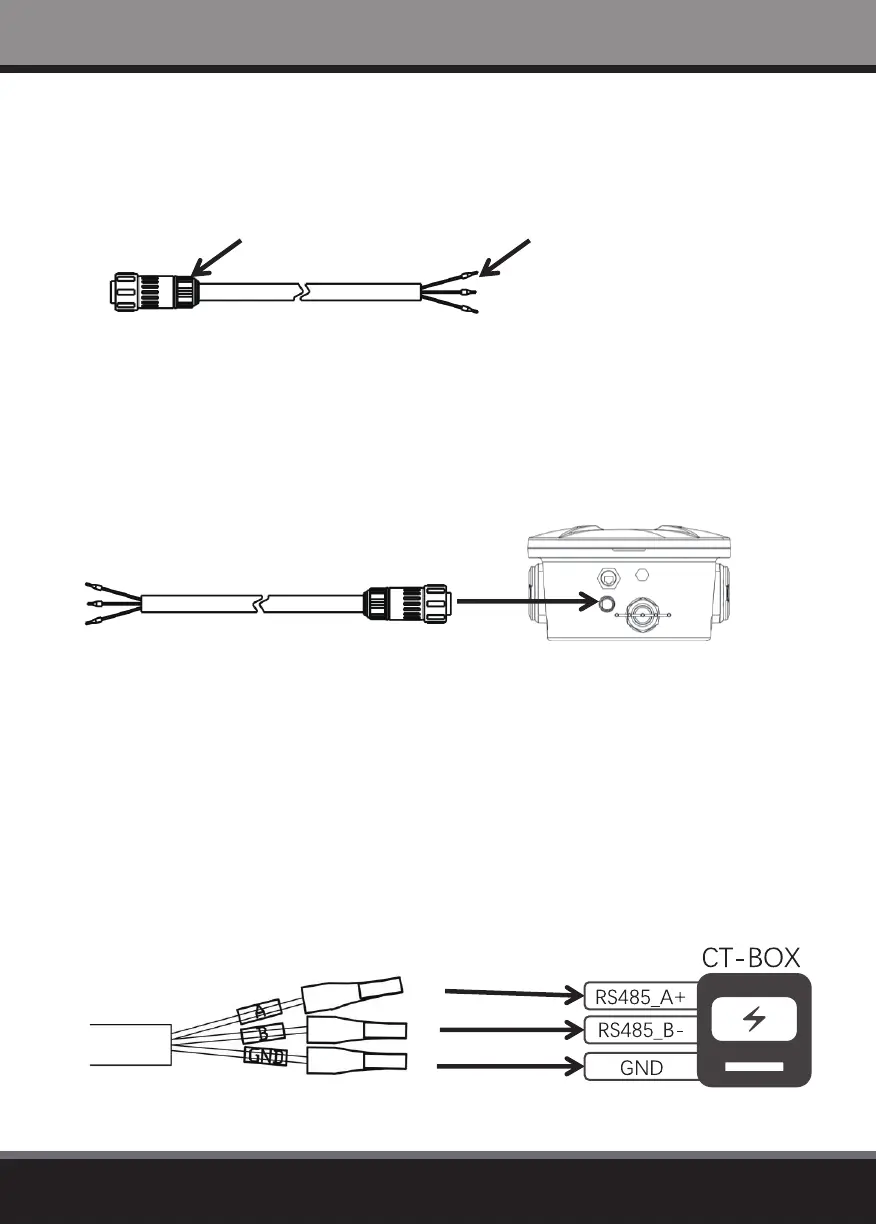

Signal wire introduction
Signal wire connection
Connect the female aviation plug of the signal wire to the charger’s load
balancing socket and tighten them.
CT-BOX signal connection
Connect three E0308 tube terminals of the signal wire to the CT BOX
according to the number of the terminals.
Connect A terminal to RS485_A+
Connect B terminal to RS485_B-
Connect GND terminal to GND
3 pin female aviation plug Tube terminal
