18 m Tip tanks
In the 18 m configuration water is also carried in the outboard wings.
Each outboard wing additionally carries approximately 17 litres of water.
#
Description
1
Dump valve – bottom of wing
2
Vent hole or vent/filling plug (optional) – top of wing
3
Drain plug (optional) – bottom of wing
4
Root drain plug

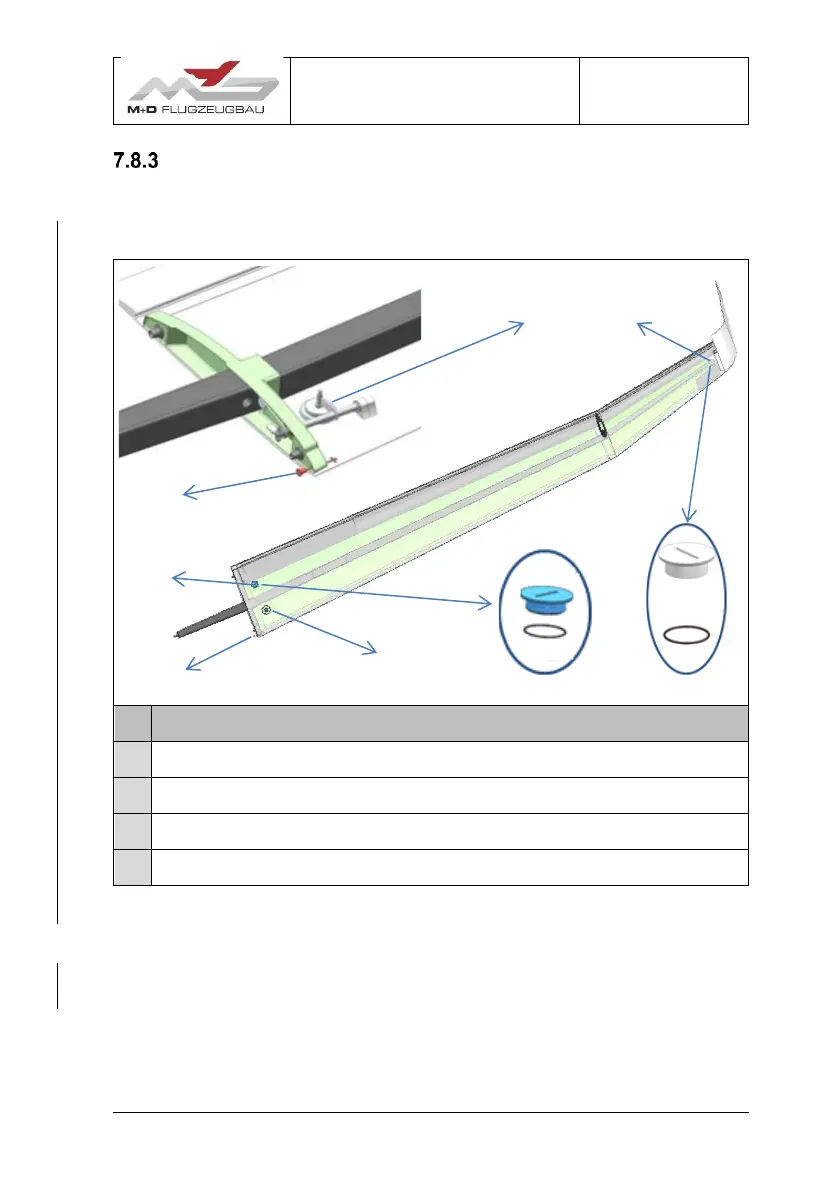

Figure 7.8-4: 18m outboard tanks
Figure 7.8-4 illustrates the water tanks, dump valve, vent hole (or
vent/filling plug) and root plug of the 18m outboard wings.
④
②
③
①
①
④
