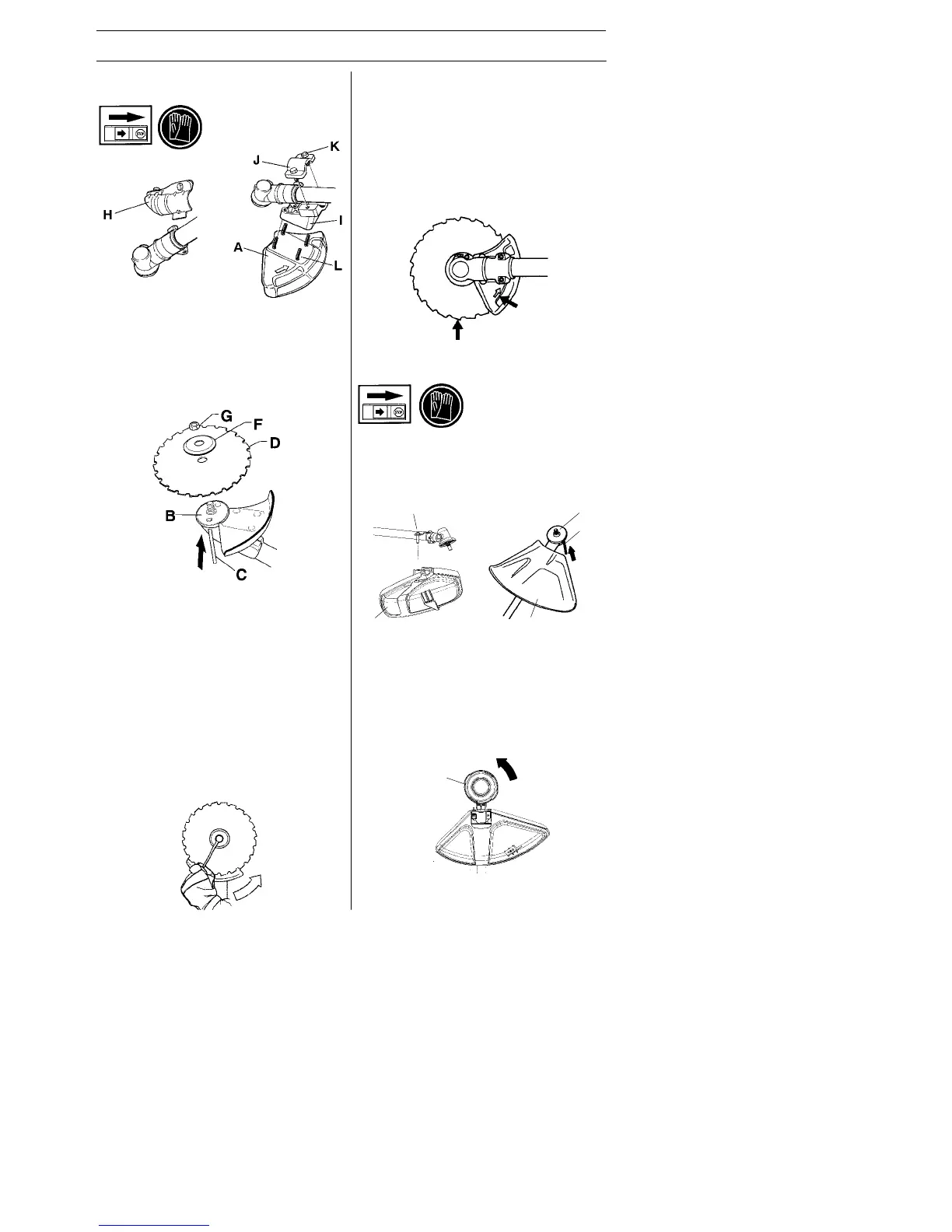

ASSEMBLY
Fitting the blade guard and
saw blade
S Remove the mounting plate (H). Fit the
adapter (I) and bracket (J) with the two
screws (K) as shown. Fit the blade
guard (A) to the adapter using the 4
screws (L) as shown.
CAUTION! Use the recommended blade
guard. See the Technical data section.
S Fit the drive disc (B) on the output shaft.
S Turn the blade shaft until one of the
holes in the drive disc aligns with the
corresponding hole in the gear housing.
S Insert the locking pin (C) in the hole to
lock the shaft.
S Place the blade (D) and support flange
(F) on the output shaft.
S Fit the nut (G). The nut must be tight-
ened to a torque of 35--50 Nm (3.5--5
kpm). Use the socket spanner in the tool
kit. Hold the shaft of the spanner as
close to the blade guard as possible. To
tighten the nut, turn the spanner in
the opposite direction to the direction of
rotation (CAUTION! left--hand thread).
S When loosening and tightening the saw
blade nut, there is a risk of injury from the
teeth of the saw blade. You should there-
fore always ensure that your hand is
shielded by the blade guard when doing
this. Always use a socket spanner with a
shaft that is long enough to allow this.
The arrow in the diagram shows the area
where you should operate the socket
spanner when loosening or tightening
the nut.
Fitting the trimmer guard and
trimmer head
S Fit the correct trimmer guard (A) for use
with the trimmer head. Hook the trimmer
guard/combination guard onto the fitting
on the shaft and secure with the bolt (D).
S Fit the drive disc (B) on the output shaft.
S Turn the shaft until one of the holes in the
drive disc aligns with the corresponding
hole in the gear housing.
S Insert the locking pin (C) in the hole to
lock the shaft.
S Screw on the trimmer head (H) in the op-
posite direction to the direction of rota-
tion.
S To dismantle, follow the instructions in
the reverse order.
A
A
DB
C
H
