Jonsered CS 2159 Workshop Manual

English – 23
Repair instructions
Before replacing a worn starter cord the tension in the
recoil spring must be released. Pull the starter cord out
through the notch in the pulley rim and wind the pulley
anti-clockwise to release the tension in the spring.
2
Remove the bolt from the centre of the pulley and
lift off the pulley.
3
Models CS 2141, CS 2145, CS 2147, CS 2149,
CS 2150, CS 2152
Cleaning and inspection
Clean the parts and check the following:
• The starter cord.
• The teeth on the pulley, lubricate with oil.
• That the pawls on the fl ywheel are undamaged,
i.e. that they spring back towards the centre and
move freely.
• Lubricate the return spring with light oil.
Replacing a broken or worn starter cord
1
Fit a new cord through the hole in the pulley and tie
a knot to secure it. Feed the other end of the cord
through the hole in the starter housing and through
the starter handle, then tie a double knot in the
end. Wind about 3 turns of the starter cord onto the
pulley. Fit the bolt through the centre of the pulley
and tighten to a torque of 2–3 Nm.
WARNING!
If the recoil spring is still under
tension when the pulley is re-
moved it can fl y out and cause
injury. Wear eye protection.

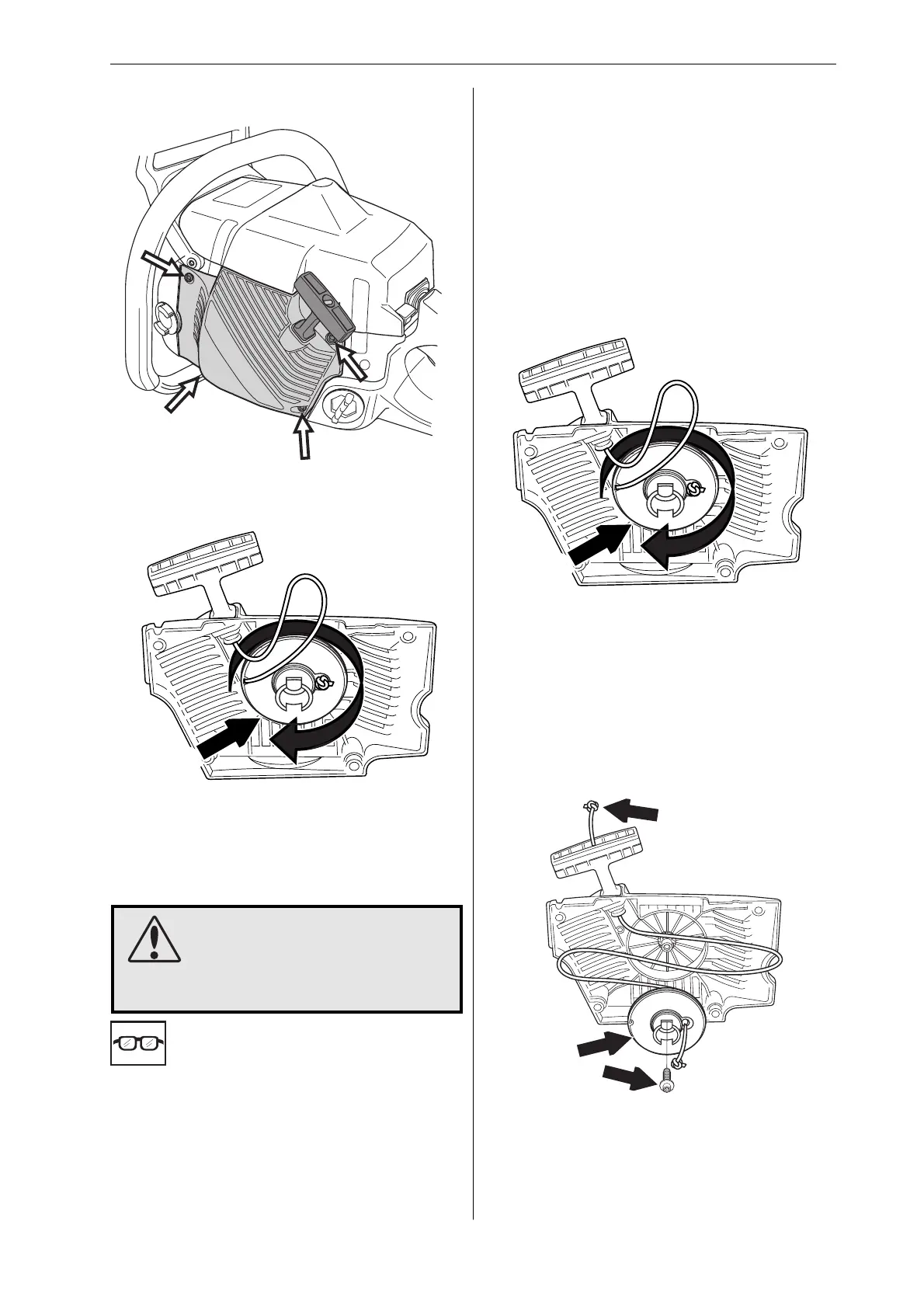

Starter assembly – removal
1
Undo the four bolts that fasten the starter assembly
to the crankcase and lift off the starter assembly.
2
Pull out about 30 cm of the cord and fasten it in the
notch in the pulley rim. Release the tension in the
return spring by letting the pulley wind backwards
slowly.
3
Remove the bolt from the centre of the pulley and
lift off the pulley.

Jonsered CS 2159 Specifications

General

Cylinder Displacement	59 cm³
Bar Length	33-50 cm
Oil Tank Volume	0.35 L
Chain Pitch	3/8"
Sound Pressure Level	104 dB(A)
Sound Power Level	115 dB(A)
Chain Gauge	0.058 inch
