Jonsered CS 2159 Workshop Manual

English – 39
Repair instructions
2

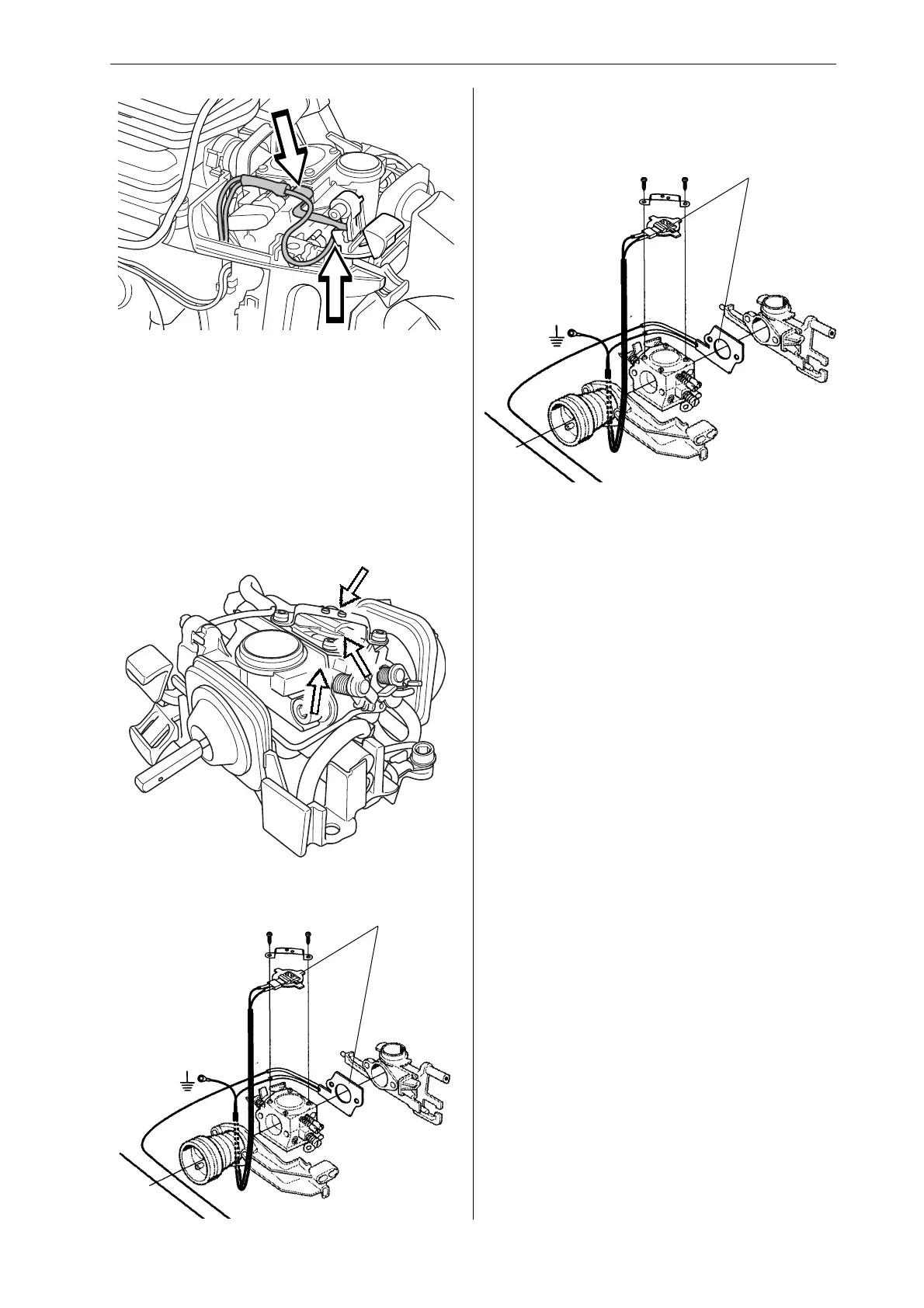

Disconnect the leads from the carburettor heater
and remove the heating element.
Heating element
Carburettor heater CS 2147 H,
CS 2149 H, CS 2152 H, CS 2156 H,
CS 2159 H – Refi tting
Heating element
1
Fit the heating element between the air fi lter con-
nection and the carburettor as well as above the
carburettor.
2
Tighten the bracket above the carburettor using the
two bolts.
3
Connect the leads to the carburettor heater.
Refi t:
• carburettor
5
Connect the leads to the stop switch.
Carburettor heater CS 2147 H,
CS 2149 H, CS 2152 H, CS 2156 H,
CS 2159 H –Removing
Remove:
• carburettor
1
Remove the two screws from the clip above the
carburettor.

Jonsered CS 2159 Specifications

General

Cylinder Displacement	59 cm³
Bar Length	33-50 cm
Oil Tank Volume	0.35 L
Chain Pitch	3/8"
Sound Pressure Level	104 dB(A)
Sound Power Level	115 dB(A)
Chain Gauge	0.058 inch
