Jonsered CS 2159 Workshop Manual

English – 35

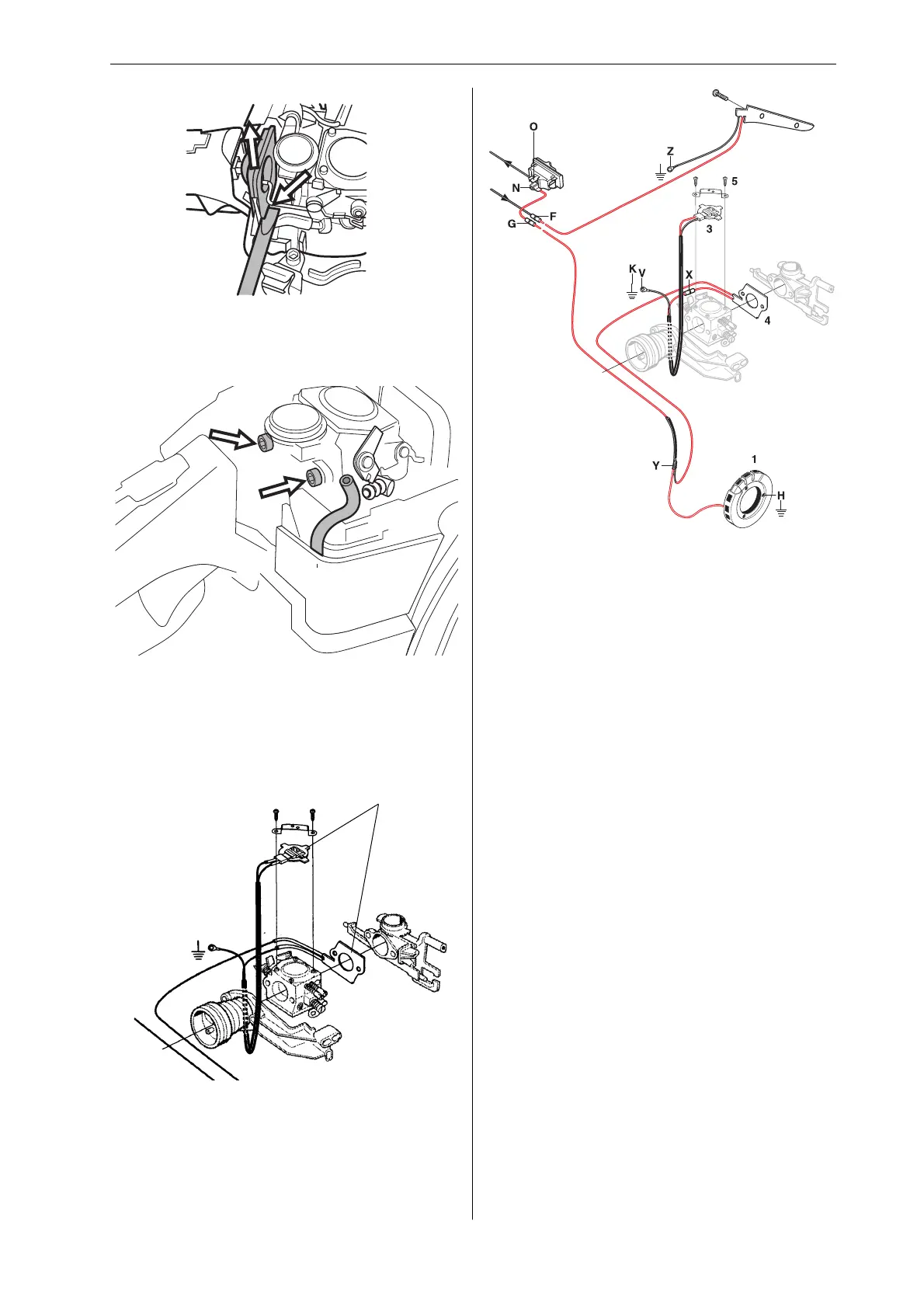

Repair instructions
3
Undo and remove the carburettor bolts. Lift off the
carburettor.
On saws with a carburettor heater CS 2147 H,
CS 2149 H, CS 2152 H, CS 2156 H, CS 2159 H
Remove the rubber inlet manifold using a large
screwdriver.
4
When replacing the thermostat: Disconnect the
cable from X and V. Trouble shooting, see page
20.
On saws with carburettor CS 2147 H,
CS 2149 H, CS 2152 H, CS 2156 H, CS 2159 H
Replacing the heating element: Lower the rear
section of the tank by removing the bolt between
the hand grip cover and vibration damping springs.
Remove the starter and then loosen the stop
screws on both sides (one is located under the
starter and this must be removed fi rst). Now dis-
connect the cable from X and Y.
Dismantling the carburettor: Loosen the high, low
and idling jet screws.
Remove the bracket’s two bolts above the carbu-
rettor. Disconnect the cable connections to the car-
burettor heater and remove the heating element.
Heating element
