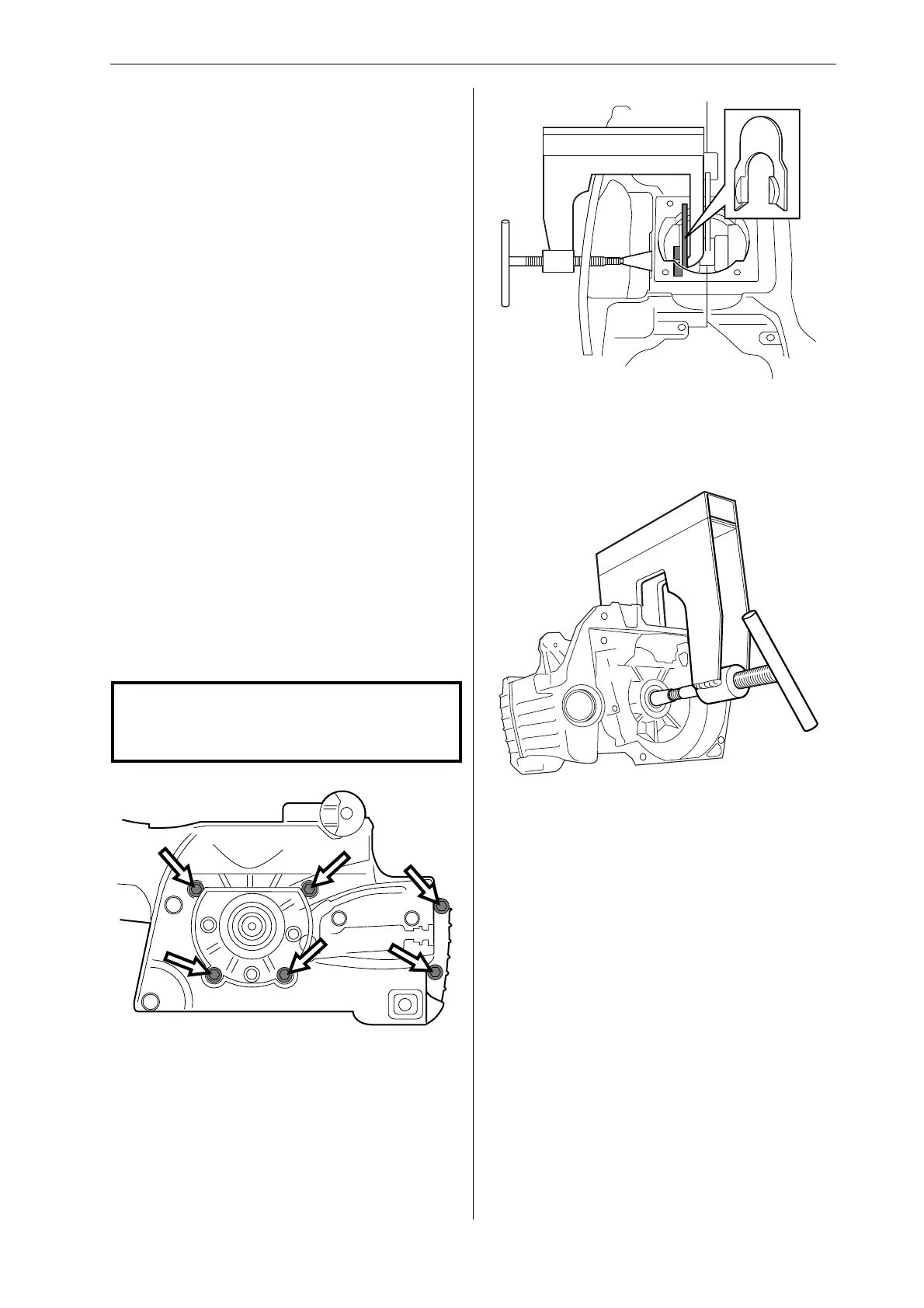

Jonsered CS 2159 Workshop Manual

English – 51
Repair instructions
Crankcase and crankshaft –
dismantling CS 2147, CS 2149,
CS 2152, CS 2156, CS 2159
1
Remove the following:
• guide bar and chain
• clutch cover
• cylinder cover
• starter assembly*
• ignition system*
• generator*
• centrifugal clutch*
• oil pump*
• bark rest
• chain tensioner
• throttle pushrod
• carburettor*
• carburettor base
• silencer*
• piston and cylinder*
• fuel tank*
* See special instructions.
NOTE!
Take care to prevent dirt or foreign parti-
cles getting into the bearings.
Unscrew the 6 bolts that hold the crankcase to-
gether.
3
Press the crankshaft out of the fl ywheel side of the
crankcase using tool 502 51 61-01.
5
Do the same on the clutch side without using stop
plate 502 54 18-01.
Split the crankcase with the aid of tool 502 51 61-
01 (A) and stop plate 502 54 18-01 (B), working
from the fl ywheel side of the saw.
4
2

Jonsered CS 2159 Specifications

General

Cylinder Displacement	59 cm³
Bar Length	33-50 cm
Oil Tank Volume	0.35 L
Chain Pitch	3/8"
Sound Pressure Level	104 dB(A)
Sound Power Level	115 dB(A)
Chain Gauge	0.058 inch
