Jonsered CS 2159 Workshop Manual

40 – English

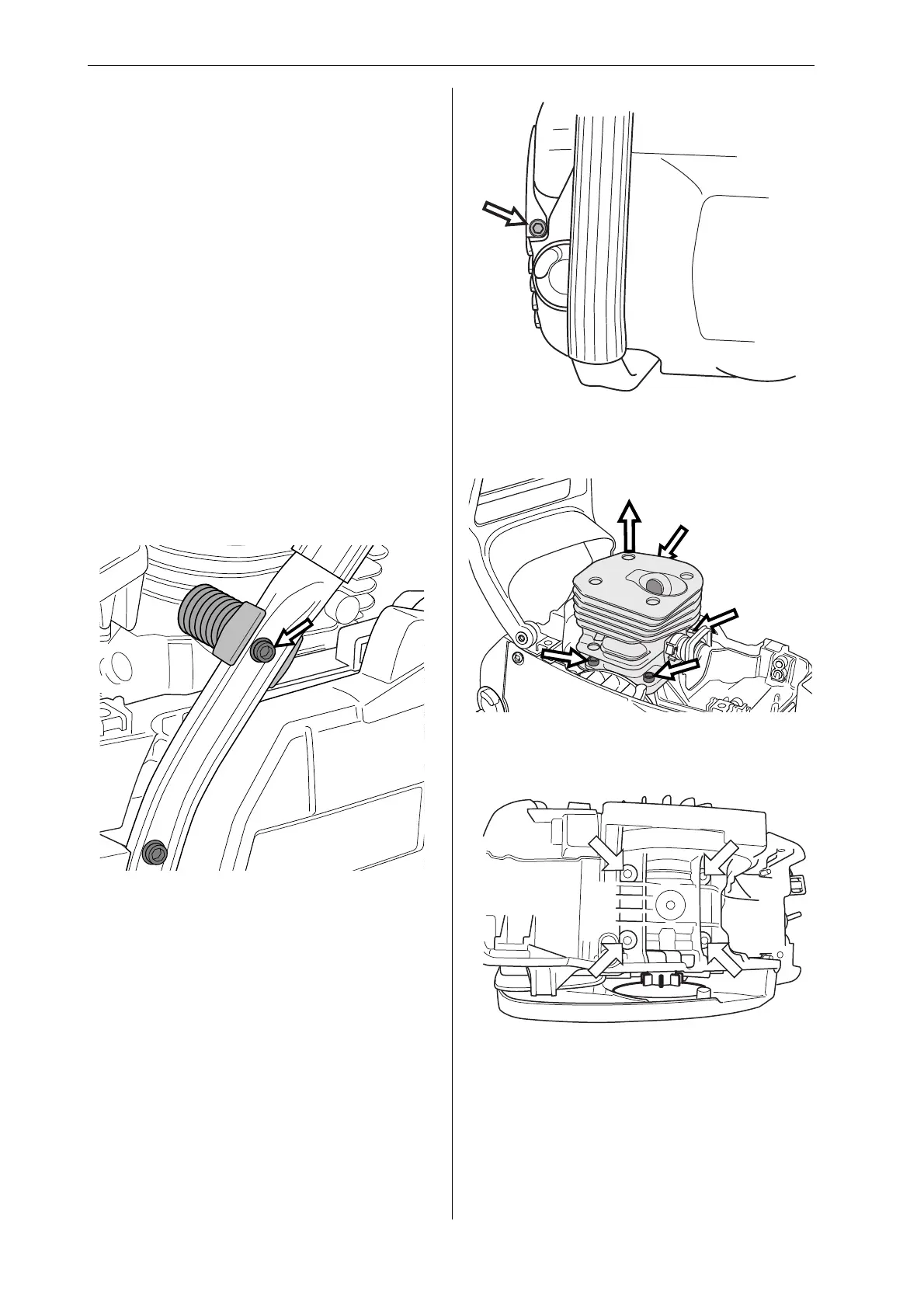

Repair instructions
Unscrew the four cylinder bolts. Lift up the cylinder
so that the intake system insulating plate is free of
the crankcase.
3
Unscrew and remove the bolt from the silencer
support.
4
On models CS 2141 and CS 2145 there are cylin-
der bolts on the underside.
Air intake system – removal
The air intake system comprises:
• inlet manifold
• insulating plate with clip
• carburettor fl ange
• impulse hose
• support ring
1
Remove:
• cylinder cover
• air fi lter
• carburettor
• HT lead
• starter assembly (CS 2141, CS 2145)
• Fuel tank (CS 2141, CS 2145)
2
Unbolt the vibration damping spring between the
cylinder and hand grip.

Jonsered CS 2159 Specifications

General

Cylinder Displacement	59 cm³
Bar Length	33-50 cm
Oil Tank Volume	0.35 L
Chain Pitch	3/8"
Sound Pressure Level	104 dB(A)
Sound Power Level	115 dB(A)
Chain Gauge	0.058 inch
