Jonsered CS 2159 Workshop Manual

English – 29
Repair instructions
NOTE!
Handle the clutch springs carefully. If they
are opened up too much they could dam-
age the saw.

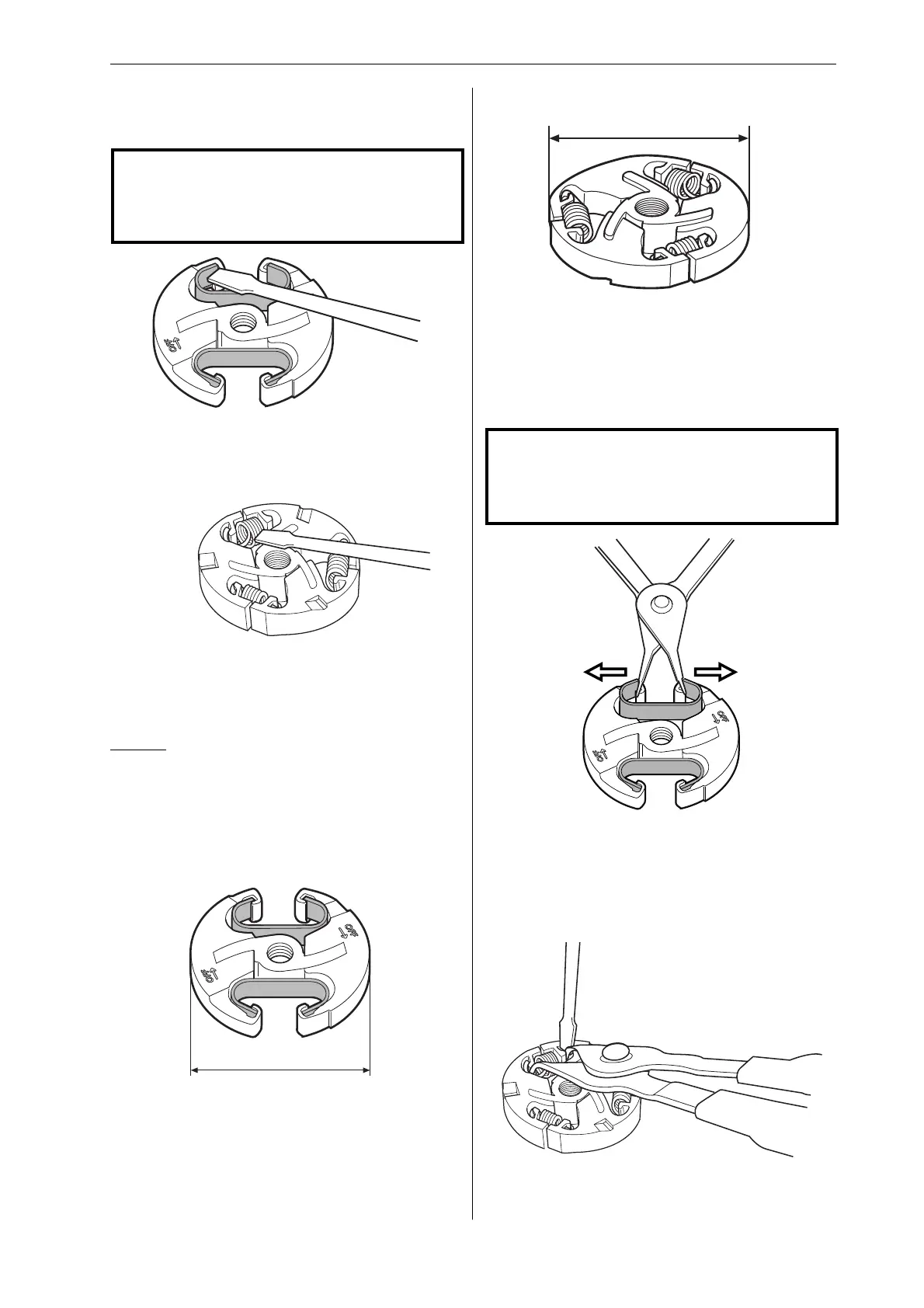

Centrifugal clutch – refi tting
1
Model CS 2141, CS 2145, CS 2147, CS 2149,
CS 2150, CS 2152
Insert the clutch springs in the shoes using circlip
pliers.
Model CS 2156, CS 2159
Model CS 2156, CS 2159
Min 65 mm
Fit the clutch springs in the shoes using circlip pli-
ers and a screwdriver.
NOTE!
Handle the clutch springs carefully. If they
are opened up too much they could dam-
age the saw.
Carefully prise out the clutch springs with a screw-
driver.
Model CS 2156, CS 2159
Inspection and cleaning
• Clean and inspect all parts carefully. If there are
any cracks or other defects replace the dam-
aged parts with new ones. Always use original
parts.
Models CS 2141, CS 2145, CS 2147, CS 2149,
CS 2150, CS 2152
• Check the thickness of the clutch shoes by us-
ing vernier callipers to measure the diameter of
the clutch. If the diameter is less than 65 mm the
clutch assembly must be replaced.
4
Models CS 2141, CS 2145, CS 2147, CS 2149,
CS 2150, CS 2152
Min 65mm

Jonsered CS 2159 Specifications

General

Cylinder Displacement	59 cm³
Bar Length	33-50 cm
Oil Tank Volume	0.35 L
Chain Pitch	3/8"
Sound Pressure Level	104 dB(A)
Sound Power Level	115 dB(A)
Chain Gauge	0.058 inch
