Jonsered CS 2159 Workshop Manual

English – 49
Repair instructions
NOTE!
It is very important that there are no leaks
in the inlet system, otherwise the engine
may seize.

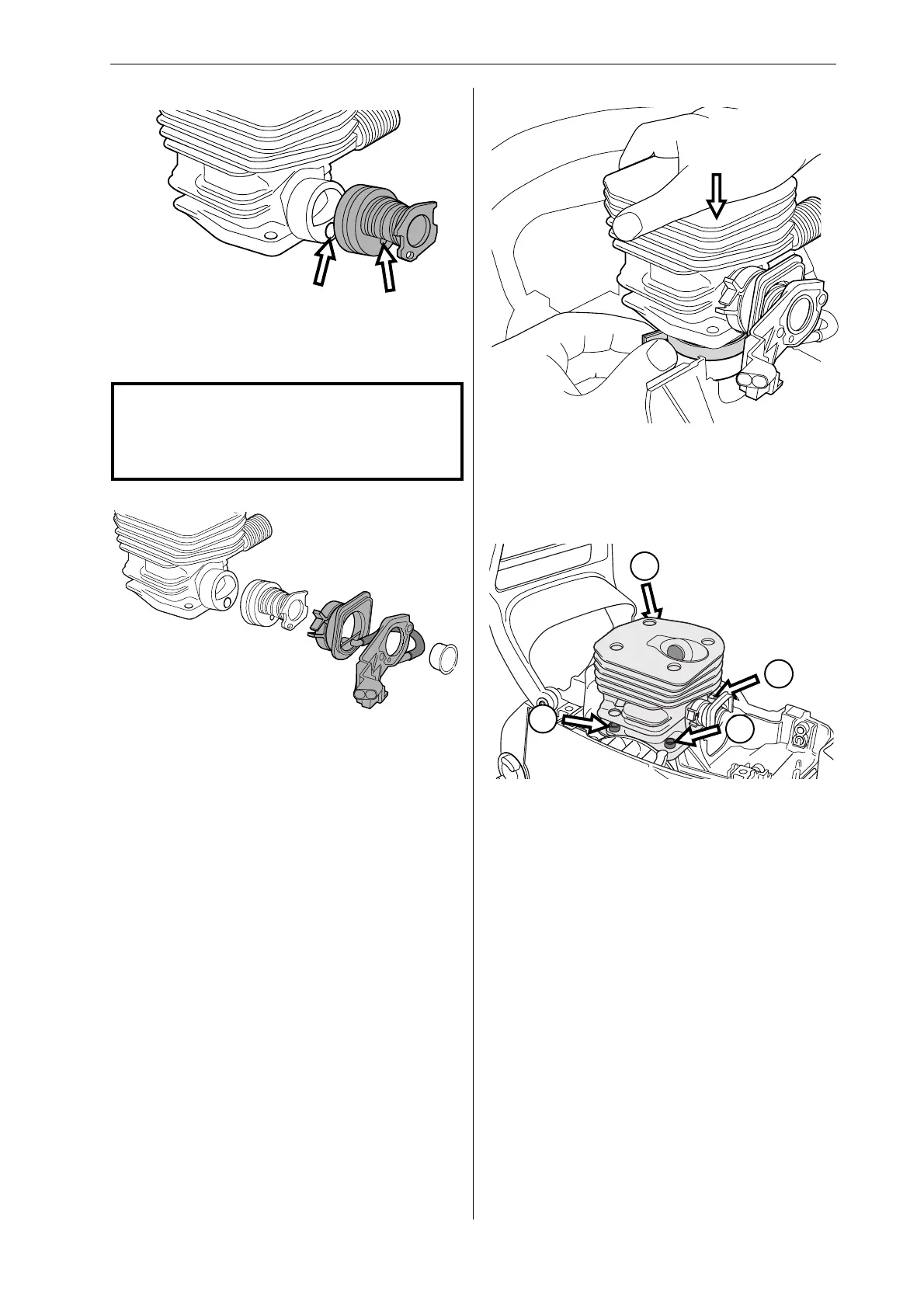

Press the insulating plate 503 86 62-01 onto the
cylinder. Check that the impulse tube connected to
the insulating plate is seated correctly in the inlet
manifold and lock the clamp over the manifold.
5
Lubricate the piston ring and piston with two-stroke
oil.
4
3
Fit a new cylinder base gasket. Compress the
piston ring with tool 502 50 70-01 and lower the
cylinder over it carefully.
7
Fit the cylinder bolts, tightening them in diagonal
pairs to a torque of 8–10 Nm.
6
1
2
3
4

Fit the inlet manifold 503 86 63-01 to the cylinder.
Check that the impulse tube is correctly seated in
the impulse channel.

Jonsered CS 2159 Specifications

General

Cylinder Displacement	59 cm³
Bar Length	33-50 cm
Oil Tank Volume	0.35 L
Chain Pitch	3/8"
Sound Pressure Level	104 dB(A)
Sound Power Level	115 dB(A)
Chain Gauge	0.058 inch
