42 – English

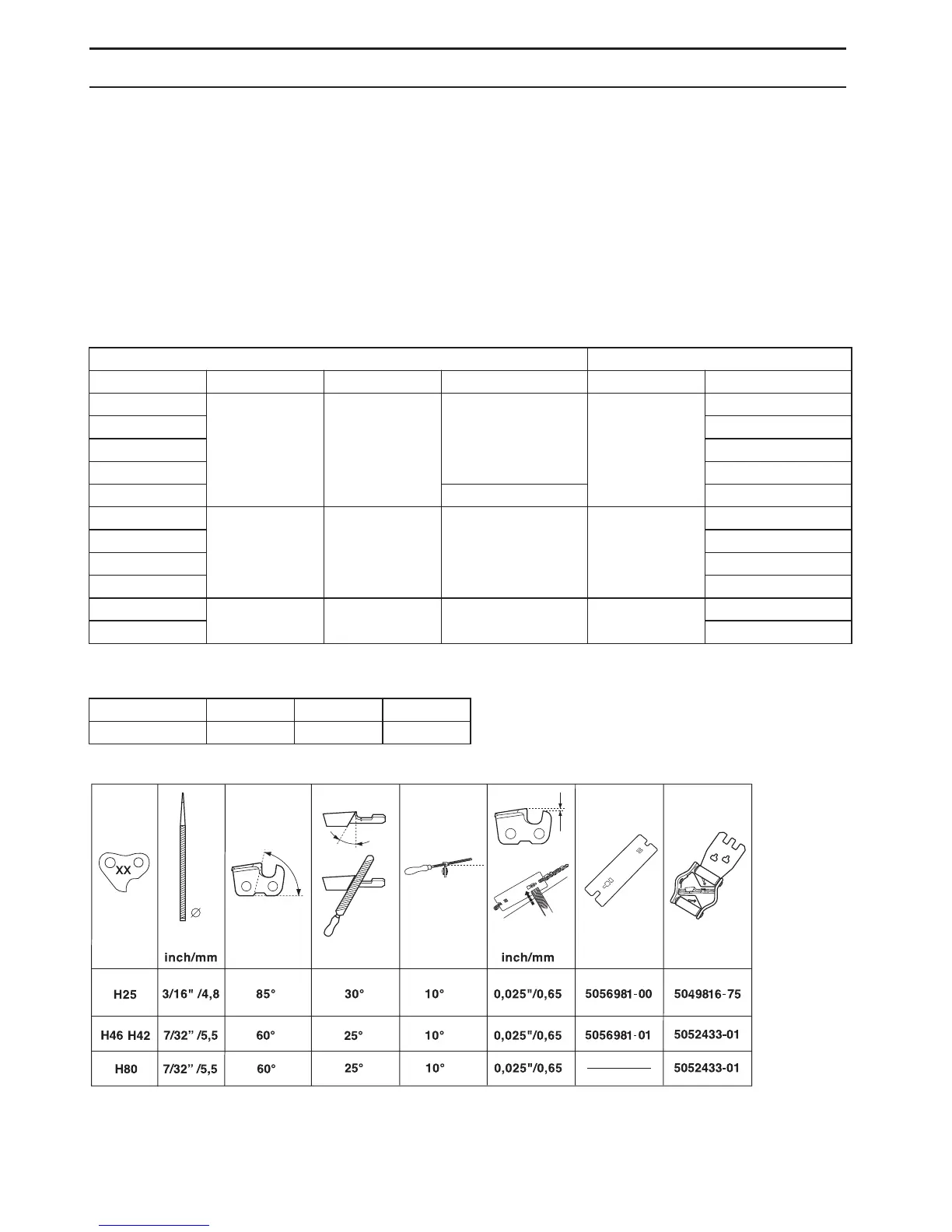

TECHNICAL DATA
1155548-32 Rev.1 2013-06-28
Recommended cutting equipment for Canada
Following is a list of recommended cutting equipment for the Jonsered chain saw models CS 2255 and CS 2255S. The
listed combination(s) of powerhead, bar and saw chain meet all requirements outlined in Canadian Standards
Assosiation Z62.1-11 (Chain Saws) and Z62.3-11 (Chain Saw Kickback).
Furthermore the saw chain Jonsered H80 is evaluated and listed as a Type C Low Kickback Saw Chain according to the
provisions in Z62.3-04.
Kickback information
The guide bar nose radius is determined by either the maximum number of teeth in the nose sprocket or the
corresponding maximum nose radius of a solid bar.
As we are listing the maximum guide bar nose radius, you may use a guide bar with smaller nose radius than in our list.
For guide bars of the same length, all sprocket-nose guide bars of the same pitch and having the same number of
sprocket teeth may be considered to have equivalent kickback energy.
Note: For the saw chains above (if available) you are free to choose between 0.050" or 0.058" gauge drive links for the
corresponding bar, see the table below
Saw chain filing and file gauges
Guide bar Saw chain
Length, inch Pitch, inch Gauge, inch Max. nose radius Type Drive link count
13
0.325 0,058
10T
Jonsered H25
56
15 64
16 66
18 72
20 12T 78/80
15
3/8 0,058 11T Jonsered H42
56
16 60
18 68
20 72
18
3/8 0.050 11T Jonsered H80
68
20 72
0.050"/1,3 mm H46 H80
0.058"/1,5 mm H25 H42
